Echo DSHR-1000 Battery Electric Sprayer

Model: DSHR-1000

Save
 Part Not Listed?Part Not Listed?
product name

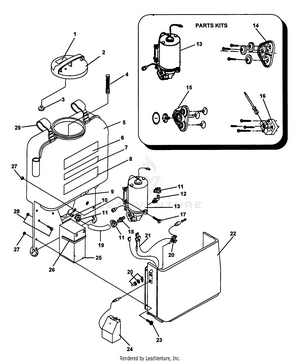

Battery, Charger, Cover, Harness, Tank, Pump, Switch

...
...
1
LABEL - WARNING ECH-4310013
...
2
CAP ECH-4310030
...
3
VALVE, CHECK ECH-4020308
...
4
FILTER, TANK ECH-4310011
...
5
TANK ECH-4310010
...
6
LABEL - ECHO ECH-4310014
...
7
LABEL - SERIAL NUMBER ECH-4310015
...
8
LABEL - LARGE WARNING ECH-4310016
...
9
LABEL - BATTERY WARNING ECH-4310017
...
10
BARB FITTING, TANK - 90 DEG. ECH-4310012
...
11
CLAMP, HOSE ECH-4310130
...
12
FITTING, BARB - 90 DEG.x3/8 NPT ECH-4310120
...
13
PUMP - 12 VOLT ECH-4341236
...
14
DIAPHRAGM KIT ECH-4339506
...
15
VALVE KIT ECH-4339505
...
16
PRESSURE SWITCH KIT ECH-4337505
...
17
BOLTS, #8x1-1/4 ECH-4310140
...
18
FITTING - 3/8 NPT ECH-4310200
...
19
HOSE - 3/8 I.D. PUMP TO TANK ECH-4310100
...
20
SWITCH KIT ECH-4310060
...
21
WIRING HARNESS ECH-4310070
...
22
COVER ECH-4310020
...
23
BOLTS, COVER #8x1/2 ECH-4310180
...
24
CHARGER, BATTERY - 12 VOLT ECH-211211451
...
25
BATTERY 12V ECH-211127000
...
26
STRAP, BATTERY ECH-4310170
...
27
NUTS, COVER #8 ECH-4310190
...
28
EYEBOLT & NUT, BATTERY TIE DOWN ECH-4310160
...
29
HARNESS ASSY, SHOULDER ECH-4310050
...
xx
CHARGING JACK ASS'Y NOT SHOWN ECH-21121452

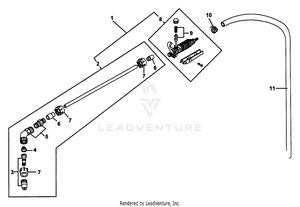

Spray Gun Assembly, Wand Assembly, Trigger Assembly, Hose

...
...
1
SPRAY GUN ASSY Includes ITEM 2 & 8 ECH-4310080
...
2
WAND ASSY INCLUDES ITEMS 2 - 7 ECH-4310082
...
3
ADJUSTABLE SPRAY TIP ASSY ECH-4310085
...
4
FILTER ECH-4310084
...
5
FITTING - 45" ECH-4310083
...
6
SEAL, FERREL ECH-4310087
...
7
NUT, FERREL ECH-4310088
...
8
SPRAY TRIGGER ASSY Includes ITEM 9 ECH-4310081
...
9
VALVE KIT TRIGGER ASSY ECH-4310086
...
10
CLAMP, HOSE ECH-4310130
...
11
HOSE - 3/8 I.D.x48" ECH-4310090
...
...
...
