product name

Echo DM-4500 Duster Mister

Model: DM-4500

Save
 Part Not Listed?Part Not Listed?
product name

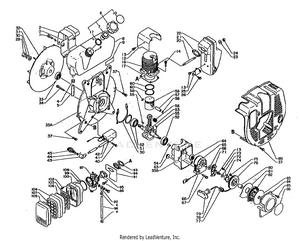

Part List 1

...
...
1
BOLT ECH-90014206020
...
2
BRACKET, FUEL TANK ECH-131910-03210
...
3
BRACKET, FUEL TANK ECH-131918-02910
...
4
CLAMP ECH-367013-00210
...
5
PIPE ECH-132010-03210
...
6
CAP ASSY ECH-13100403910
...
7
CAP, VENT ECH-13100305330
...
10
LABEL ECH-890157-12730
...
11
GASKET, FUEL CAP ECH-13101621230
...
8
TANK, FUEL ECH-131010-03210
...
9
LABEL ECH-890112-04010
...
12
COVER, CYLINDER ECH-101514-03211
...
13
SCREW 5x10 ECH-90024205010
...
14
BOLT 6x20 ECH-90016206020
...
16
CYLINDER ECH-101011-02311
...
17
GASKET, CYLINDER ECH-101010-02312
...
20
STUD ECH-101014-02310
...
21
GASKET ECH-145510-02311
...
22
MUFFLER ASSY ECH-145610-03210
...
23
WASHER ECH-145642-00760
...
24
NUT, LOCK 6 ECH-90056000006
...
25
BRACKET ECH-145711-02310
...
26
SCREW 5x14 ECH-90024205014
...
29
NUT 10 ECH-90050100010
...
30
SCREW ECH-900605-00010
...
31
WASHER 10.5x18x1.6 ECH-90060000010
...
32
FAN ECH-200005-03210
...
33
SEAL, OIL 18 ECH-10021302830
...
34
BOLT 5x40 ECH-90016205040
...
35
CRANKCASE SET ECH-100200-03213
...
54
PIN, DOWEL ECH-10021505730
...
37
SCREW 5x22 ECH-90024205022
...
40
SCREW 4x20 ECH-90024204020
...
41
COIL, IGNITION ECH-156601-03210
...
42
TUBE ECH-156111-03210
...
43
CAP, SPARK PLUG ECH-15901201620
...
44
TERMINAL, SPARK PLUG ECH-15901103432
...
45
FLYWHEEL ECH-159010-00330
...
50
GASKET, CRANKCASE ECH-100242-03212
...
51
RING, SNAP 35 ECH-90070200035
...
52
BEARING, BALL 6202 ECH-90081036202
...
53
CRANKSHAFT ASSY ECH-10010003210
...
55
KEY ECH-10014200310
...
56
BEARING, NEEDLE 10 ECH-10001212331
...
57
PIN, PISTON ECH-10001300410
...
58
RING, SNAP 8 ECH-10001500120
...
59
PISTON KIT ECH-P021002540
...
60
RING, PISTON ECH-10001110530
...
63
GROMMET ECH-156114-03210
...
64
SEAL, OIL ECH-10021300310
...
65
COIL, EXCITER ECH-156800-03210
...
66
COIL, EXCITER ECH-15662703210
...
67
SCREW 5x25 ECH-90024205025
...
68
WASHER 8 ECH-90060200008
...
71
PAWL ASSY, STARTER ECH-177305-06720
...
xx
STARTER ASSY ECH-17720003211
...
13
SCREW 5x10 ECH-90024205010
...
72
WASHER 5.2x16x1.0 ECH-17721402830
...
73
SCREW 4x8 ECH-90024104008
...
74
PAWL CATCHER ECH-17724304130
...
75
CLIP, STARTER ROPE ECH-17724603930
...
76
REEL, ROPE ECH-17721504130
...
77
GUIDE, ROPE ECH-17722702910
...
78
ROPE, STARTER 3.5x850 ECH-17722603930
...
79
HANDLE ECH-17722811130
...
80
BUSHING ECH-17721612330
...
81
PLATE, SIDE ECH-17724202910
...
82
SPRING, RECOIL ECH-17722003930
...
83
PLATE, SIDE ECH-17722106720
...
84
CASE, STARTER ECH-177209-03211
...
85
SCREW 4x16 ECH-90024204016
...
86
LABEL ECH-890112-17830
...
89
COVER, ENGINE ECH-104016-03210
...
91
GASKET, INTAKE ECH-130010-03311
...
92
CONNECTOR ECH-13202400660
...
93
PACKING ECH-13001601110
...
94
INSULATOR ECH-13001701110
...
95
ADAPTOR, INTAKE ECH-130510-02310
...
96
BOLT ECH-90014206025
...
97
CARBURETOR ECH-12000003213
...
98
PIPE ECH-132010-03210
...
99
LABEL ECH-890121-00660
...
100
CASE, AIR FILTER ECH-13030703711
...
102
SCREW 4x14 ECH-90024204014
...
103
GRID, AIR FILTER ECH-13031903710
...
104
PRE-FILTER, FOAM ECH-13031002910
...
105
COVER, AIR CLEANER ECH-13031303712
...
106
FILTER, AIR ECH-13031703710
...
107
GRID, PRE-FILTER ECH-13031103710
...
108
GASKET ECH-130320-03710

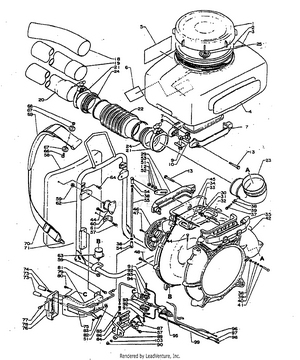

Part List 2

...
...
1
CAP, TANK ECH-P100003000
...
25
CONNECTOR, PIPE ECH-25001300310
...
2
GASKET ECH-250011-02010
...
3
TANK, CHEMICAL ECH-250010-03910
...
4
LABEL ECH-890118-01110
...
5
LABEL ECH-890178-03710
...
6
LABEL ECH-890120-03710
...
7
HOLDER ECH-250900-03610
...
8
HOLDER ECH-250925-02910
...
9
BOLT ECH-250907-03211
...
10
PIN ECH-250914-03210
...
13
SCREW 5x50 ECH-90024905050
...
18
TUBE, BLOWER - CURVED ECH-21002300210
...
19
TUBE, BLOWER - STRAIGHT ECH-21001501110
...
20
TUBE, BLOWER - STRAIGHT ECH-21001401610
...
21
CLAMP 75-85 ECH-V495001171
...
22
FLEXIBLE TUBE KIT ECH-21001201710
...
24
COLLAR ECH-21003204110
...
23
TUBE, BLOWER - ELBOW ECH-210011-03010
...
29
HOLDER ECH-270025-03810
...
30
O-RING ECH-27021701110
...
31
E-RING 8 SUS ECH-90070300008
...
32
SHAFT, SHUTTER ECH-270205-02911
...
33
PIPE ECH-370613-03210
...
34
GUIDE ECH-370315-02910
...
35
HOLDER ECH-270010-03810
...
37
SCREW 5x14 ECH-90024205014
...
38
NUT M5 ECH-90050000005
...
39
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
40
WASHER, SPRING 5 ECH-90060500005
...
41
SCREW ECH-210425-02310
...
42
CASE, FAN ECH-200107-03810
...
44
SCREW 5x16 ECH-90024905016
...
45
CASE, FAN ECH-200105-03810
...
46
GRID, FAN CASE ECH-200124-01111
...
47
SCREW 5x16 ECH-90024205016
...
48
SCREW 5x25 ECH-90024905025
...
51
WASHER 6 ECH-90060200006
...
52
NUT, HEX M6 ECH-90050000006
...
53
ARM, SHUTTER CONTROL ECH-270206-02911
...
54
CONNECTOR ECH-70102001110
...
55
ROD, CONTROL LEVER ECH-701026-03210
...
57
SCREW 5x10 ECH-90024205010
...
58
PLATE ECH-300105-03210
...
59
NUT, FLANGE M6x1 ECH-90051500006
...
60
CUSHION ECH-200910-03210
...
61
BRACKET ECH-300220-01110
...
62
FRAME, BACKPACK ECH-300010-03210
...
63
CUSHION ECH-200916-03210
...
64
SCREW 5x12 ECH-90024205012
...
66
SCREW 5x14 ECH-90021605014
...
67
WASHER 5.2x22x2.0 ECH-30032803210
...
68
NUT, LOCK M5 ECH-90056000005
...
69
PAD, SHOULDER ECH-300322-03210
...
70
HARNESS ECH-300300-03210
...
71
RING, HARNESS ECH-30031901611
...
73
KNOB ECH-701021-02910
...
74
LEVER ECH-701005-02911
...
75
THROTTLE CONTROL ASSY ECH-178010-02910
...
76
DIAL ECH-701111-03210
...
77
SCREW 5x14 ECH-90024205014
...
78
LABEL ECH-890157-03710
...
79
BRACKET, DIAL ECH-701105-03210
...
80
SCREW 4x10 ECH-90024204010
...
81
BOLT 5x10 ECH-900142-05010
...
82
SWIVEL ECH-178017-02910
...
83
E-RING 3 ECH-90070000003
...
84
BRACKET, LEVER ECH-701110-03210
...
85
ADJUSTER, CABLE ECH-178021-02910
...
86
NUT M5 ECH-90050200005
...
87
VALVE ASSY ECH-132200-03210
...
89
WASHER ECH-13251100660
...
90
NUT ECH-900500-00004
...
91
SCREW 3x6 ECH-900246-03016
...
92
PLATE, SWITCH ECH-16341200660
...
93
BODY, SWITCH ECH-16341000661
...
94
KNOB, SWITCH ECH-163414-02910
...
95
BRACKET, SWITCH ECH-16391000660
...
96
CABLE, THROTTLE ECH-17800103310
...
97
SPARK PLUG - RCJ7Y ECH-162010-02910
...
98
COIL, EXCITER ECH-162021-02910
...
99
TUBE ECH-178016-02910
...
103
WASHER, SPRING 4 ECH-900605-00004

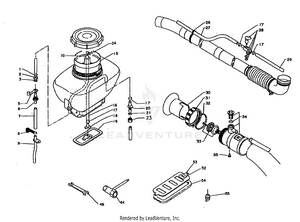

Part List 3

...
...
1
CLIP 10.5 MM ECH-13201314010
...
2
NUT ECH-383019-00310
...
3
WASHER 12 ECH-V309000170
...
5
PLUG ECH-36302200510
...
6
CONNECTOR, PIPE ECH-36301700310
...
7
PIPE, OUTER PRESSURE 7x11x170L ECH-36301100210
...
8
PLUG ECH-36302101110
...
9
TUBE ECH-363015-03210
...
10
PIPE, INNER PRESSURE 7x11x500BL ECH-36301403210
...
15
FILTER ECH-25421003210
...
16
PIPE, DISCHARGE 9x13x350 ECH-38201101110
...
17
CLAMP ECH-357023-01110
...
18
CONNECTOR ECH-355012-00910
...
19
PLATE ECH-253010-01110
...
20
CONNECTOR, PIPE ECH-35701001110
...
21
O-RING 3x13 ECH-35701401110
...
23
NUT 14 ECH-35701501110
...
24
CLIP 10.5 MM ECH-13201314010
...
26
CLIP, TUBE ?55 ECH-35791100111
...
27
TUBE, VINYL ECH-35701201110
...
28
VALVE ECH-358100-01110
...
29
PIPE ECH-367032-01110
...
xx
NOZZLE ASSY ECH-212500-01111
...
30
COLLAR ECH-212515-01110
...
31
NUT ECH-212514-01110
...
32
RING ECH-212513-01110
...
33
NOZZLE ECH-222000-01110
...
34
ADJUSTER, VOLUME ECH-21250101111
...
35
SCREW ECH-900248-05012
...
44
LABEL - CAUTION ECH-895410-00430
...
48
SPANNER 10x13 ECH-89512303830
...
52
LABEL ECH-890132-01110
...
53
SHUTTER ASSY ECH-270100-02911
...
54
GASKET ECH-270119-02911
...
56
PLUG, RUBBER ECH-25001601110

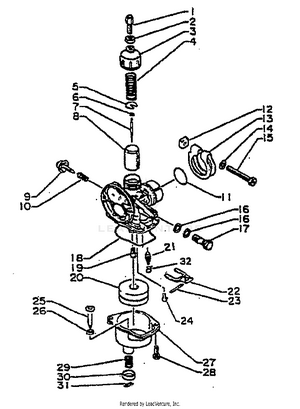

Part List 4

...
...
xx
CARBURETOR ECH-12000003213
...
1
ADJUSTER, CABLE ECH-12015803620
...
2
NUT ECH-12011104730
...
3
COVER, TOP ECH-120113-02410
...
4
SPRING, THROTTLE ECH-120114-03310
...
5
WASHER, SPRING SUPPORT ECH-12011508020
...
6
E-RING ECH-12011610211
...
7
NEEDLE, JET ECH-120103-02910
...
8
VALVE, THROTTLE ECH-120118-03310
...
9
SCREW, IDLE ADJUST ECH-120159-27930
...
10
SPRING, IDLE ADJUST ECH-12016001321
...
11
O-RING ECH-120125-02310
...
12
NUT ECH-12015110210
...
13
CLIP ECH-120146-00220
...
14
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
15
SCREW ECH-120147-02910
...
16
GASKET ECH-12013010210
...
17
BOLT, BANJO ECH-12013100120
...
18
GASKET, CHAMBER ECH-12012310210
...
19
JET, MAIN ECH-12012203210
...
20
FLOAT ECH-12013305730
...
21
VALVE, INLET NEEDLE ECH-120120-05731
...
22
ARM, FLOAT ECH-12012127430
...
23
PIN ECH-12013210211
...
24
SCREW 4x6 ECH-90022004006
...
25
SHAFT, LINK ECH-120177-03310
...
26
O-RING ECH-12017803311
...
27
CHAMBER, FLOAT ECH-12012403311
...
28
SCREW 4x12 ECH-90024104012
...
29
SPRING ECH-12017928930
...
30
COLLAR ECH-12018003311
...
31
CLIP ECH-12018103312
...
32
CLIP ECH-120182-27430
...
...
...
