Echo DHC-2300 S/N: 403HCH000001 - 403HCH999999 Hedge Trimmer

Model: DHC-2300 S/N: 403HCH000001 - 403HCH999999

Save Part Not Listed?
product name

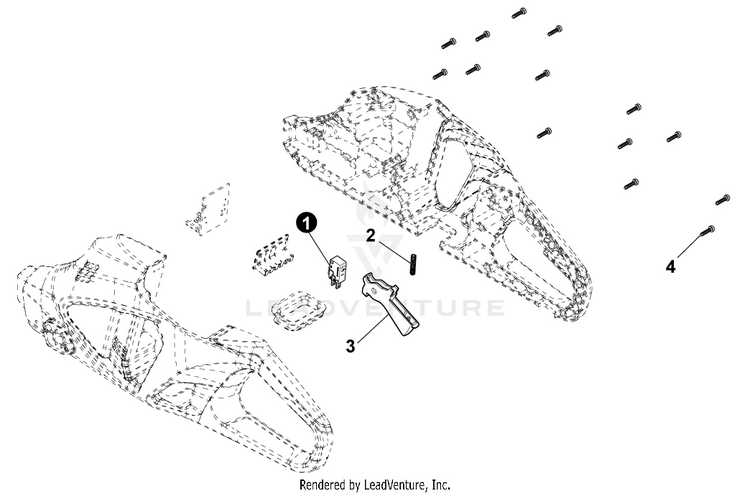

CHASSIS

...
...
1
SWITCH ECH-YH321000240
...
2
SPRING ECH-YH476000220
...
3
SWITCH, TRIGGER ECH-YH321000250
...
4
SCREW ECH-YH415000830

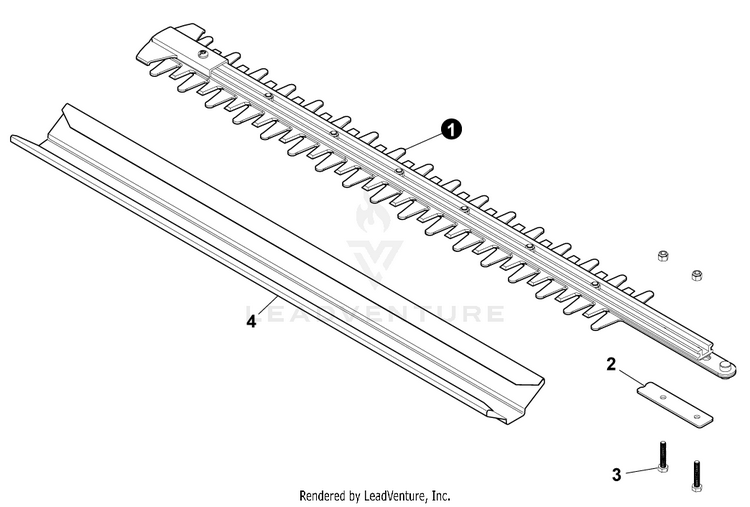

CUTTER BLADE AND SCABBARD

...
...
1
BLADE ASSY ECH-YH457000000
...
2
PLATE, BLADE RETAINING ECH-YH466000540
...
3
SCREW ECH-YH415000850
...
4
SCABBARD ECH-YH479002390

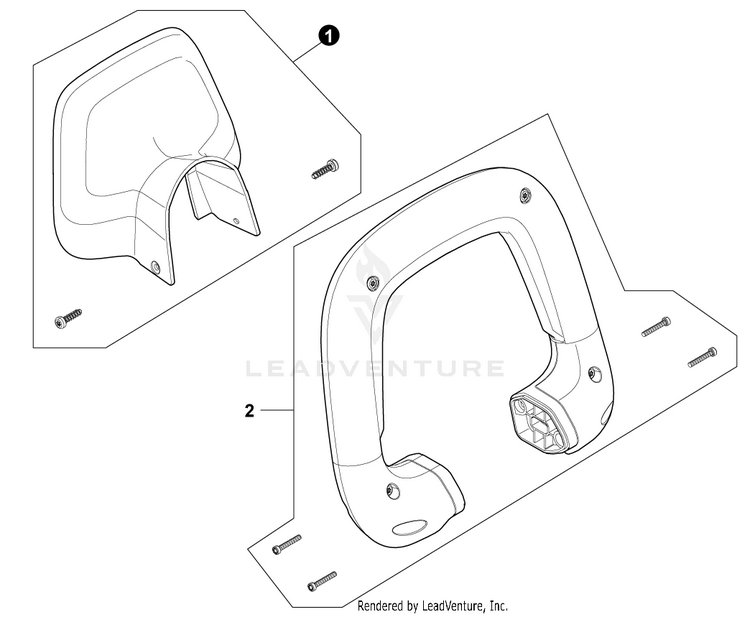

GUARD AND AUXILLARY HANDLE

...
...
1
GUARD ASSY ECH-YH479002400
...
2
HANDLE ASSY, AUXILIARY ECH-YH466000530

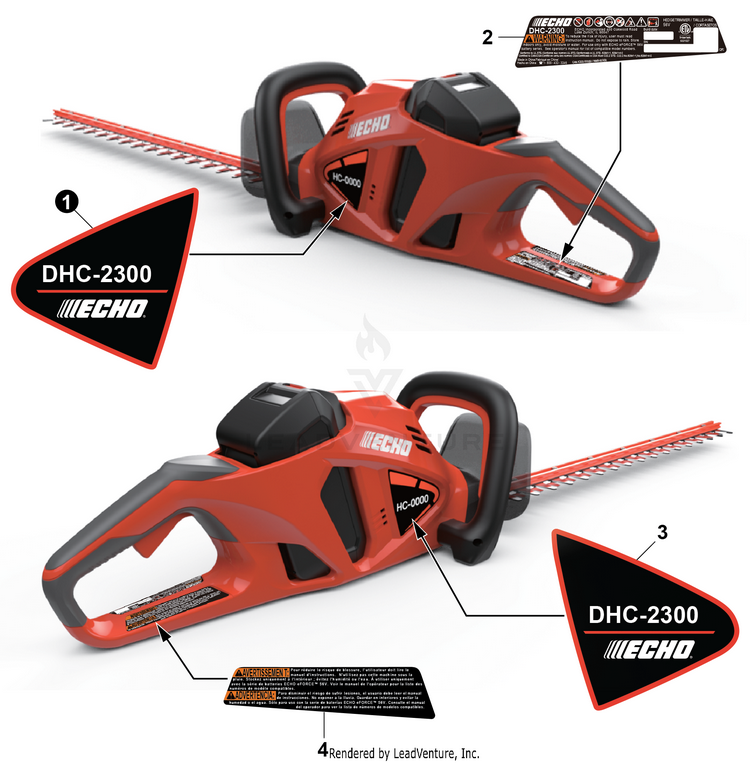

LABELS

...
...
1
BRAND LOGO,LEFT HOUSING ECH-YH653001340
...
2
LABEL,LEFT HANDLE ECH-YH653001360
...
3
LABEL,RIGHT HANDLE ECH-YH653001350
...
4
BRAND LOGO,RIGHT HOUSING ECH-YH653001330

ACCESSORIES

...
...
1
CHARGER, BATTERY STANDARD 56V ECH-LC-56V2AAB
...
2
CHARGER, BATTERY RAPID 56V ECH-LC-56V4AAB
...
3
BATTERY, 56V LITHIUM-ION - 2.5Ah ECH-LBP-56V125A
...
4
BATTERY, 56V LITHIUM-ION - 5.0Ah ECH-LBP-56V250A
