Echo CST-610EVL Chainsaw

Model: CST-610EVL

Back To Assemblies

Save Part Not Listed?
product name

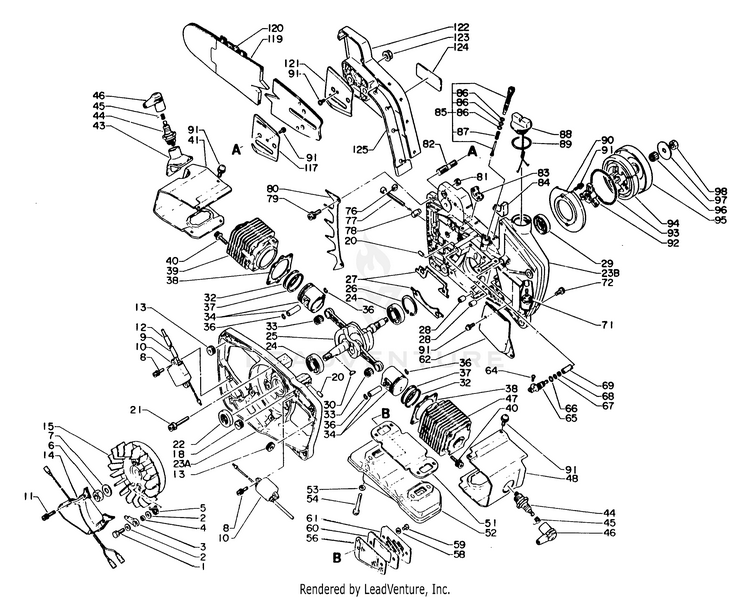

Engine,Exhaust,Ignition,Clutch,Oiler Automatic,Crankcase,Cutting Attach

...
...
1
BOLT - 5x16 ECH-90010005016
...
2
WASHER 5.5x12x0.8 ECH-90060300005
...
3
PAWL, STARTER ECH-17721802830
...
4
SPACER ECH-17721703430
...
5
SPRING ECH-17723402831
...
6
NUT ECH-10014402830
...
7
LOCKWASHER ECH-10014316130
...
8
BOLT 4x14 ECH-90016204014
...
9
PIPE ECH-15062316130
...
10
COIL, IGNITION ECH-15662616130
...
11
SCREW - 4x18 ECH-90016204018
...
12
PIPE ECH-15061116130
...
13
GROMMET ECH-15011200310
...
14
MODULE,CDI ECH-15660116130
...
15
FLYWHEEL ECH-15080016131
...
18
GROMMET ECH-15061402910
...
21
BOLT M5x35 ECH-90016205035
...
22
SEAL, OIL ECH-10021216130
...
23
CRANKCASE KIT Includes 20 and 28, 83 and 84. ECH-10020416032
...
23A
CRANKCASE KIT See Ref No. 23, Crankcase set, P/N 10020016032 ECH-10020416032
...
23B
CRANKCASE KIT See Ref No. 23, Crankcase set, P/N 10020016032 ECH-10020416032
...
20
PIN, LOCATING 4 ECH-V622000020
...
28
PIN, DOWEL ECH-10021505730
...
83
CUSHION ECH-10025116130
...
84
CUSHION ECH-10025216130
...
24
BEARING, BALL 6202 ECH-90081036202
...
25
CRANKSHAFT ECH-10010012720
...
26
RING, SNAP 35 ECH-90070200035
...
27
GASKET, CRANKCASE ECH-10024216132
...
29
SEAL, OIL 18 ECH-10021302830
...
30
KEY, WOODRUFF ECH-10014212330
...
32
RING, PISTON ECH-10001616130
...
33
BEARING, NEEDLE 9 ECH-10001216131
...
34
PISTON KIT ECH-10000016131
...
36
RING, SNAP ECH-10001503931
...
37
RING, PISTON ECH-10001116131
...
38
GASKET, CYL. BASE ECH-10101016131
...
39
CYLINDER, FRONT ECH-10171116132
...
40
BOLT 5x20 ECH-90016205020
...
41
COVER, CYLINDER ECH-10151416130
...
43
CAP ECH-15901516130
...
44
SPARK PLUG - BPMR7A ECH-15901010230
...
45
TERMINAL, SPARK PLUG ECH-15901103432
...
46
CAP, SPARK PLUG ECH-15901203433
...
47
CYLINDER - REAR ECH-10174316132
...
48
COVER, CYLINDER - RIGHT ECH-10157616130
...
51
GASKET, MUFFLER ECH-14551016131
...
52
MUFFLER ECH-14560516131
...
53
WASHER ECH-13003110230
...
54
SCREW - 5x38 ECH-90010505038
...
56
MUFFLER SCREEN ECH-14586216132
...
58
WASHER, LOCK 5 MM ECH-90061000005
...
59
SCREW 5x8 ECH-14564303730
...
60
GASKET, MUFFLER LID ECH-14586616132
...
61
COVER, MUFFLER ECH-14586116131
...
62
PLATE ECH-10153416130
...
64
SCREW 3x8 ECH-90024103008
...
65
CONNECTOR, OIL PIPE ECH-43730616033
...
66
O-RING 7 MM ECH-90072000007
...
67
O-RING 6 MM ECH-90072000006
...
68
CLIP 5.5 ECH-13011100530
...
69
PIPE, FUEL 3x5x90 BLACK RePower BULK OPTION: 90014 ECH-V471001211
...
71
FILTER, OIL ECH-43620514730
...
72
SCREW - 5x10 ECH-90010545010
...
76
CLIP ECH-43302811030
...
77
SCREW, ADJUSTER ECH-43301611031
...
78
TENSIONER, CHAIN ECH-43301402830
...
79
BOLT 5x14 ECH-90016205014
...
80
SPIKE, BUMPER ECH-88021014330
...
81
NUT M5 ECH-90050000005
...
82
STUD, GUIDE BAR ECH-43301112330
...
85
AUTO-OILER ASSY Includes 86 and 87. ECH-43700003430
...
86
O-RING ECH-43702002830
...
87
SPRING ECH-43701902830
...
88
CAP ASSY Includes 89. ECH-43600116131
...
89
O-RING 25 MM ECH-90072000025
...
90
PLATE ECH-17531016130
...
91
SCREW 4x10 ECH-90024204010
...
xx
CLUTCH ASSY Consists of 92 thru 94. ECH-17500016131
...
92
CLUTCH ASSY ECH-17500016131
...
93
SPRING, CLUTCH ECH-17501802830
...
94
SHOE, CLUTCH ECH-17501702830
...
95
DRUM, CLUTCH ECH-17500514330
...
96
BEARING, NEEDLE 10 ECH-10001212331
...
97
WASHER, CLUTCH ECH-17501503430
...
98
NUT 8 LH ECH-61032003830
...
117
PLATE, GUIDE - INNER ECH-43301316130
...
119
GUIDE BAR - 50RS50-3/8E ECH-43021216130
...
120
SAW CHAIN - 72DP-72E ECH-43101211930
...
121
PLATE, GUIDE - OUTER ECH-43301216130
...
122
GUIDE BAR COVER ECH-43300216130
...
123
NUT, FLANGE M8x1.25 ECH-V265000200
...
124
LABEL - ECHO ECH-89011838130
...
125
PLATE ECH-43303116130
