Echo CS-650EVL Chainsaw

Model: CS-650EVL

Save Part Not Listed?
product name

Carburetor

...
...
xx
CARBURETOR Consists of 1 thru 30, except 21. ECH-12300014330
...
1
SCREW, PUMP COVER ECH-P003006850
...
2
COVER, PUMP ECH-12312412331
...
3
GASKET, FUEL PUMP ECH-12312512330
...
4
DIAPHRAGM, FUEL PUMP ECH-12311212330
...
5
SCREW ECH-12311403930
...
6
VALVE, CHOKE ECH-12313212330
...
7
BALL, CHOKE FRICTION ECH-12313610630
...
8
SPRING ECH-12313510630
...
9
SCREEN, INLET ECH-P003006710
...
11
SPRING, THROTTLE ECH-12311312330
...
12
SHAFT, THROTTLE ECH-12311712330
...
13
VALVE, THROTTLE ECH-12311603930
...
14
SHAFT, CHOKE ECH-12313112330
...
15
STOP, THROTTLE ECH-12315612330
...
16
SPRING, IDLE ADJUST ECH-12313311130
...
17
SCREW, IDLE ADJUST ECH-12313406530
...
18
NEEDLE, IDLE ECH-12311812330
...
19
SPRING, NEEDLE ECH-12312103930
...
20
NEEDLE, HIGH SPEED ECH-12312012330
...
22
SPRING ECH-12312203930
...
23
VALVE, INLET NEEDLE ECH-12313703930
...
24
GASKET, CIRCUIT PLATE ECH-12316412330
...
25
PLATE, CIRCUIT ECH-12316612330
...
26
SCREW, CIRCUIT PLATE ECH-12316712330
...
27
GASKET, METERING DIAPHRAGM ECH-12314010630
...
28
DIAPHRAGM, METERING ECH-12314112330
...
29
COVER, DIAPHRAGM ECH-12314212330
...
30
SCREW ECH-12314403930
...
10
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---

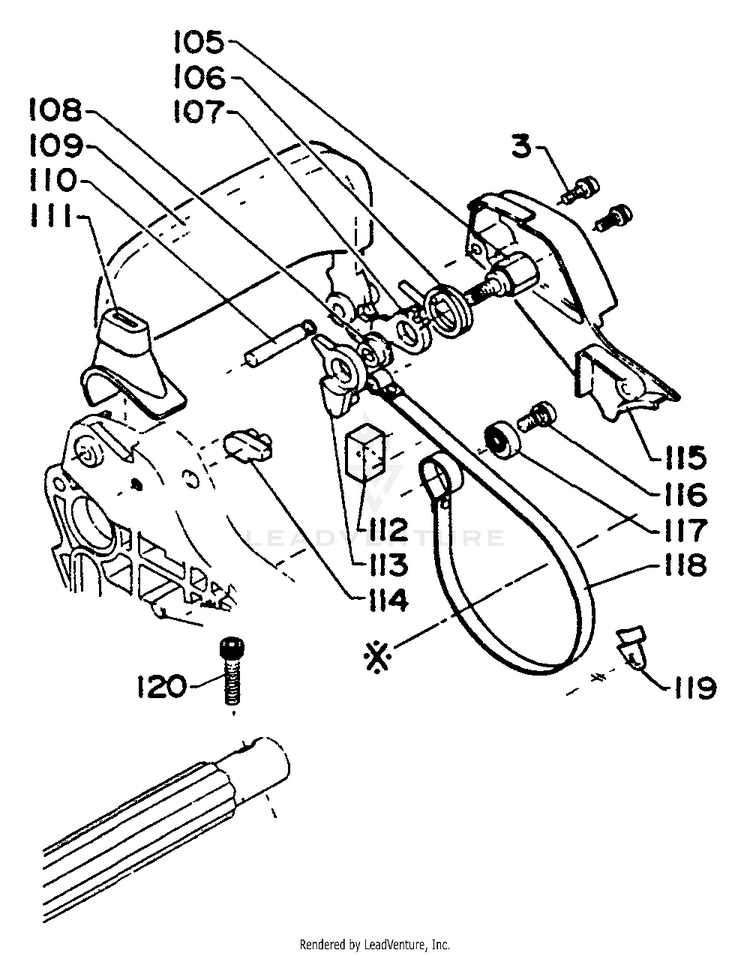

Chain Brake

...
...
xx
CHAIN BRAKE ASSY. ECH-43310014431
...
3
SCREW 4x12 ECH-90024204012
...
105
BOLT ECH-43313412330
...
106
SPRING, RETURN ECH-43311412330
...
107
STOPPER ECH-43311912330
...
108
SPACER ECH-43311512330
...
109
BRAKE LEVER ECH-43310512531
...
110
SCREW ECH-43311312330
...
111
COVER, BRAKE ECH-43331212330
...
112
SEAL ECH-43331312330
...
113
CONNECTOR ECH-43311712330
...
114
RESET, BRAKE ECH-43314912530
...
115
COVER ECH-43331014330
...
116
SCREW 5x10 ECH-90024105010
...
117
ADJUSTER, BRAKE BAND ECH-43314212330
...
118
BAND, BRAKE ECH-43312314330
...
119
RETAINER, BRAKE BAND ECH-43314414330
...
120
BOLT 5x25 ECH-90016205025

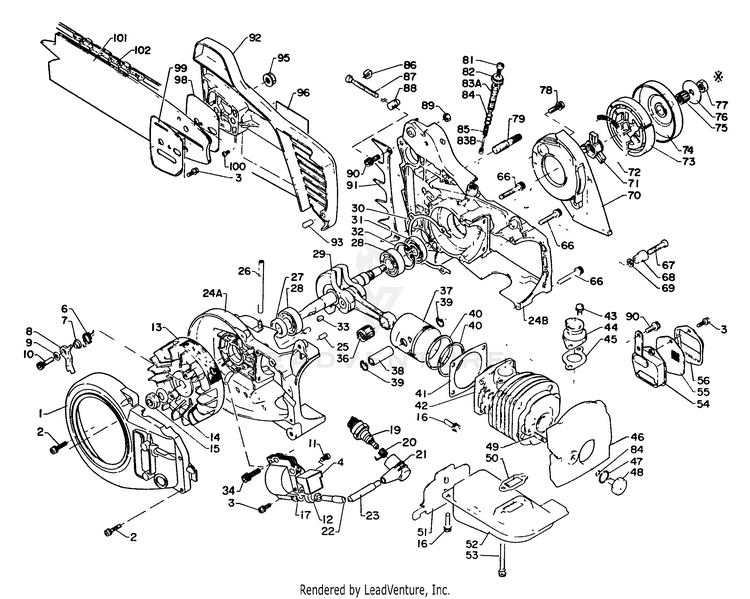

Engine,Exhaust,Ignition,Clutch,Oiler Automatic,Crankcase,Cutting Attach

...
...
1
SHIELD, FAN ECH-10153514331
...
2
SCREW 4x20 ECH-90024204020
...
3
SCREW 4x12 ECH-90024204012
...
xx
IGNITION COIL ASSY Consists of 3,4,11,12,17,22 and 23. ECH-15060214331
...
3
SCREW 4x12 ECH-90024204012
...
4
COIL, IGNITION ECH-15060114333
...
11
SCREW 4x6 ECH-90024104006
...
17
COIL, IGNITION Consists of 12, 22 and 23. ECH-15062614333
...
12
CAP ECH-15063214330
...
22
LEAD, SPARK PLUG ECH-15063114330
...
23
PIPE ECH-15063314330
...
6
SPRING ECH-17723412330
...
7
SPACER, PAWL ECH-17724712331
...
8
PAWL, STARTER ECH-17721814331
...
9
WASHER 5.5x12x0.8 ECH-90060300005
...
10
BOLT 5x20 HSH ECH-90010505020
...
13
FLYWHEEL ECH-15080114330
...
14
WASHER ECH-10014314330
...
15
NUT ECH-10014412331
...
16
BOLT 5x20 ECH-90016205020
...
19
SPARK PLUG - BPMR7A ECH-15901010230
...
20
TERMINAL, SPARK PLUG ECH-15901103432
...
21
CAP, SPARK PLUG ECH-15901203433
...
24
CRANKCASE KIT Includes 25. ECH-10020014331
...
24A
CRANKCASE KIT See Ref No. 24, Crankcase set, P/N 10020014331 ECH-10020014331
...
24B
CRANKCASE KIT See Ref No. 24, Crankcase set, P/N 10020014331 ECH-10020014331
...
25
PIN, LOCATING 5x10 ECH-10021502830
...
26
PIPE, IMPULSE 3x6x75 RePower BULK OPTION: 90014 ECH-13011014330
...
27
SEAL, OIL 15 ECH-10021300310
...
28
BEARING, BALL 6202 ECH-90081006202
...
29
CRANKSHAFT KIT ECH-10010418430
...
30
GASKET ECH-10024214330
...
31
SEAL, OIL 18 ECH-10021302830
...
32
RING, SNAP 35 ECH-90070200035
...
33
KEY, WOODRUFF ECH-10014212330
...
34
BOLT 5x20 ECH-90010605020
...
36
BEARING, NEEDLE ECH-10001202831
...
37
PISTON KIT ECH-10000014330
...
38
PIN, PISTON ECH-10001301510
...
39
RING, SNAP ECH-10001500230
...
40
RING, PISTON ECH-10001618430
...
41
GASKET, CYL. BASE ECH-10101014331
...
42
CYLINDER ECH-10101114330
...
43
SCREW 5x10 ECH-90024205010
...
44
ADAPTOR, INTAKE ECH-13050812331
...
45
GASKET ECH-13001012331
...
46
COVER, CYLINDER ECH-10151414330
...
47
O-RING 12 MM ECH-90072000012
...
48
NUT ECH-10151914330
...
49
STUD ECH-10152514330
...
50
GASKET, MUFFLER ECH-14551012331
...
51
INSULATOR ECH-10027014330
...
52
MUFFLER ECH-14561014330
...
53
BOLT 5x45 ECH-90016205045
...
54
ADAPTOR ECH-14580614330
...
55
SCREEN, SPARK ARRESTER ECH-14586214330
...
56
GUIDE, EXHAUST ECH-14586314330
...
66
BOLT M5x35 ECH-90016205035
...
68
CHAIN CATCHER KIT Includes 67 and 69. ECH-43300012830
...
67
SCREW 5x25 ECH-90022005025
...
69
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
70
PLATE ECH-17531014330
...
xx
CLUTCH ASSY Consists of 71 thru 73. ECH-17500016131
...
71
CLUTCH ASSY ECH-17500016131
...
72
SPRING, CLUTCH ECH-17501802830
...
73
SHOE, CLUTCH ECH-17501702830
...
74
DRUM, CLUTCH ECH-17500514330
...
75
BEARING, NEEDLE 10 ECH-10001212331
...
76
WASHER, CLUTCH ECH-17501503430
...
77
NUT 8 LH ECH-61032003830
...
78
SCREW 5x16 ECH-90024205016
...
79
STUD, GUIDE BAR ECH-43301112330
...
81
SCREW 5x10 ECH-90022005010
...
82
WASHER, LOCK ECH-43705911133
...
83
AUTO-OILER ASSY Includes 84 and 85. ECH-43700003430
...
83A
AUTO-OILER ASSY See Ref No. 83A, Auto, oiler ass'y, P/N 43700043430 ECH-43700003430
...
83B
AUTO-OILER ASSY See Ref No. 83A, Auto, oiler ass'y, P/N 43700043430 ECH-43700003430
...
84
O-RING ECH-43702002830
...
85
SPRING ECH-43701902830
...
84
O-RING ECH-43702002830
...
86
CLIP ECH-43302811030
...
87
SCREW, ADJUSTER ECH-43301611031
...
88
TENSIONER, CHAIN ECH-43301402830
...
89
NUT, LOCK M5 ECH-90056000005
...
90
BOLT 5x12 ECH-90010605012
...
91
SPIKE, BUMPER ECH-88021014330
...
92
GUARD, SPROCKET ECH-43301014431
...
93
PIN, DOWEL ECH-43303014430
...
95
NUT, FLANGE M8x1.25 ECH-V265000200
...
96
LABEL - ECHO ECH-89011838130
...
98
PLATE, SIDE ECH-43301212332
...
99
PLATE, SIDE ECH-43301312332
...
100
SCREW 3x6 ECH-90022003006
...
101
GUIDE BAR ECH---
...
------------------
SAW CHAIN ECH---

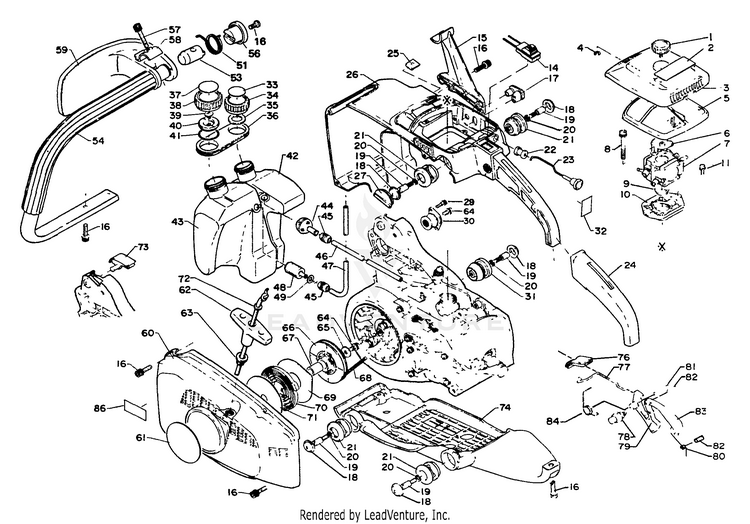

Starter, Handles, Fuel System, Oil Tank, Air Cleaner

...
...
1
THUMBSCREW ECH-13040614330
...
2
LABEL - MODEL ECH-89015114331
...
3
COVER, AIR FILTER ECH-13031314332
...
4
O-RING 3 ECH-90072000003
...
5
FILTER, AIR ECH-13031014330
...
6
BRACKET, AIR FILTER ECH-13042014330
...
7
CARBURETOR ECH-12300014330
...
8
SCREW 5x45 ECH-90024205045
...
9
HOLDER ECH-13051112330
...
10
ADAPTOR ECH-13001312331
...
11
SCREW 4x12 ECH-90024204012
...
14
SWITCH, IGNITION ECH-16340014330
...
15
BRACKET, HANDLE - UPPER ECH-35161414330
...
16
BOLT 5x20 ECH-90016205020
...
17
GROMMET ECH-12901012330
...
18
CAP, CUSHION ECH-10091814330
...
19
SCREW ECH-10091514332
...
20
WASHER, SPRING 5 ECH-90060500005
...
21
CUSHION ECH-10091014330
...
22
GROMMET, CHOKE ECH-17881011231
...
23
ROD, CHOKE ECH-17851014330
...
24
GRIP, HANDLE ECH-35111112330
...
25
STOPPER ECH-35113712330
...
26
HANDLE - REAR ECH-35111014330
...
27
COVER, CUSHION ECH-35113814332
...
29
BOLT 4x10 ECH-90010504010
...
30
CUSHION ECH-10092114430
...
31
CUSHION ECH-10091714330
...
32
LABEL - ECHO ECH-89011817930
...
34
OIL CAP ASSY. Includes 33 thru 35. ECH-43600213631
...
33
OIL DECAL ECH-89015318030
...
35
GASKET, CAP ECH-43601212330
...
36
CONNECTOR ECH-13103812331
...
38
FUEL CAP ASSY. Includes 37 thru 41. ECH-13160014532
...
37
LABEL - FUEL MIX ECH-89015415130
...
39
VALVE ECH-A356000070
...
40
HOLDER, CHECK VALVE ECH-13101514531
...
41
O-RING 22 ECH-90072000022
...
42
TANK, OIL ECH-43601014330
...
43
TANK, FUEL ECH-13101014330
...
44
FILTER, OIL ECH-43620514730
...
46
PIPE, OIL ECH-43720514330
...
45
GROMMET ECH-13211512330
...
47
PIPE ITEM IS NO LONGER AVAILABLE ECH-13200714330
...
48
FILTER, FUEL ECH-A369000470
...
49
WASHER 5.5x12x0.8 ECH-90060300005
...
51
SPRING ECH-35183613730
...
53
SPACER, HANDLE ECH-35161710230
...
54
HANDLE, FRONT ECH-35160614330
...
56
RETAINER ECH-35183315130
...
57
BOLT M5x35 ECH-90016205035
...
58
STOPPER ECH-35184018330
...
59
GUARD ECH-35182614330
...
xx
STARTER ASSY Consists of 60 and 62 thru 72. ECH-17720014330
...
60
CASE, STARTER ECH-10150714330
...
62
HANDLE ECH-17722812330
...
63
GUIDE, ROPE ECH-17722705330
...
64
SCREW 5x10 ECH-90024205010
...
65
WASHER 5.2x16x1.0 ECH-17721402830
...
66
REEL, ROPE ECH-17720614330
...
67
BUSHING ECH-17721612330
...
68
ROPE, STARTER 4.0x950 ECH-17722607060
...
69
PLATE, SIDE ECH-17724212330
...
70
SPRING, RECOIL ECH-17722002834
...
71
PLATE, STARTER ECH-17722102830
...
72
SPACER ECH-17722914330
...
61
LABEL - ECHO ECH-89011817930
...
64
SCREW 5x10 ECH-90024205010
...
73
COVER ECH-10061212332
...
74
SUPPORT ECH-35112314331
...
76
GROMMET ECH-17821014330
...
77
ROD, THROTTLE ECH-17801114330
...
78
LATCH, THROTTLE ECH-P100011150
...
79
THROTTLE ECH-17801012333
...
80
SPRING, LOCKOUT RETURN ECH-17809110531
...
81
PIN, SPRING 5x25 ECH-90034050025
...
82
PIN, SPRING 4x13 ECH-90034040013
...
83
LOCKOUT, THROTTLE ECH-17809012330
...
84
SPRING, THROTTLE RETURN ECH-17804315130
...
86
LABEL - NOISE ECH-89017613031
