Echo CS-451VL Chainsaw

Model: CS-451VL

Back To Assemblies

Save Part Not Listed?
product name

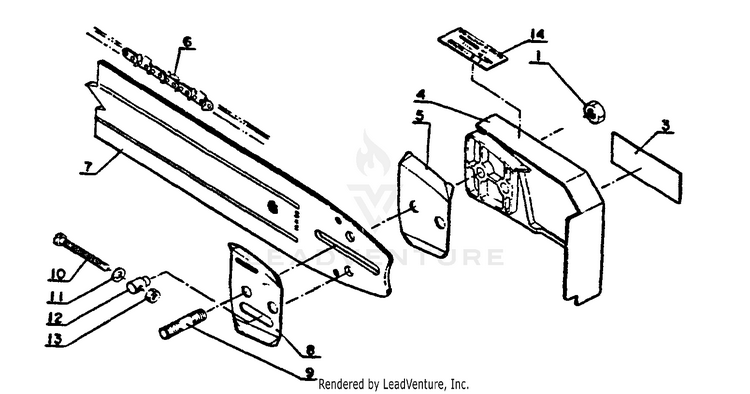

Guide Bar

...
...
1
NUT, FLANGE M8x1.25 ECH-V265000200
...
3
LABEL ECH-89011812730
...
4
GUARD, SPROCKET ECH-43301003431
...
5
PLATE, SIDE ECH-43301212332
...
------------------
SAW CHAIN ECH---
...
7
GUIDE BAR ECH---
...
8
PLATE, SIDE ECH-43301312332
...
9
STUD, GUIDE BAR ECH-43301100330
...
10
SCREW, ADJUSTER ECH-43301602830
...
11
WASHER ECH-10024702830
...
12
TENSIONER, CHAIN ECH-43301402830
...
13
NUT, LOCK M5 ECH-90056200005
...
14
UNKNOWN ECH---
