product name

Echo CS-350TES Chainsaw

Model: CS-350TES

Back To Assemblies

Save Part Not Listed?

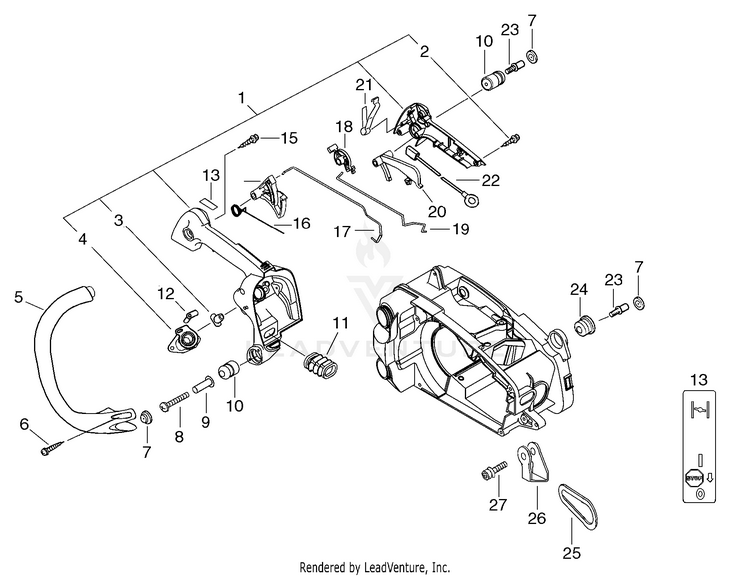

product name

Handles, Throttle Control

...
...
1
HANDLE, REAR ECH-P021011510
...
1
HANDLE, REAR ECH-P021011510
...
2
SCREW 4x16 ECH-90025604016
...
2
SCREW 4x16 ECH-90025604016
...
3
NUT ECH-13002033330
...
3
NUT ECH-13002033330
...
4
BELLOWS, INTAKE ECH-A202000033
...
4
BELLOWS, INTAKE ECH-A202000033
...
5
HANDLE, FRONT ECH-C400000160
...
5
HANDLE, FRONT ECH-C400000160
...
6
SCREW 4x16 ECH-90025604016
...
6
SCREW 4x16 ECH-90025604016
...
7
CAP, CUSHION ECH-10091815130
...
7
CAP, CUSHION ECH-10091815130
...
8
SCREW, TAPPING 4x35 ECH-9148104035
...
8
SCREW, TAPPING 4x35 ECH-9148104035
...
9
COLLAR 4 ECH-V352000020
...
9
COLLAR 4 ECH-V352000020
...
10
CUSHION 4 ECH-V400000070
...
10
CUSHION 4 ECH-V400000070
...
11
BELLOWS, INTAKE ECH-A239000000
...
11
BELLOWS, INTAKE ECH-A239000000
...
12
COLLAR 3.2x6.5 ECH-V351000000
...
12
COLLAR 3.2x6.5 ECH-V351000000
...
13
LABEL - ON-OFF ECH-X524000910
...
13
LABEL - ON-OFF ECH-X524000910
...
14
TRIGGER, THROTTLE ECH-C450000010
...
14
TRIGGER, THROTTLE ECH-C450000010
...
15
SCREW, TAPPING 5x20 ECH-90025305020
...
15
SCREW, TAPPING 5x20 ECH-90025305020
...
16
SPRING, TORSION ECH-V452000010
...
16
SPRING, TORSION ECH-V452000010
...
17
ROD, THROTTLE ECH-C454000070
...
17
ROD, THROTTLE ECH-C454000070
...
18
LEVER, CONTROL ECH-A253000043
...
18
LEVER, CONTROL ECH-A253000043
...
19
ROD, CHOKE ECH-A240000010
...
19
ROD, CHOKE ECH-A240000010
...
20
LOCKOUT, THROTTLE ECH-C460000002
...
20
LOCKOUT, THROTTLE ECH-C460000002
...
21
TERMINAL, LEAD ECH-V486000010
...
21
TERMINAL, LEAD ECH-V486000010
...
22
LEAD ECH-V485000340
...
22
LEAD ECH-V485000340
...
23
BOLT 4x12 ECH-V202000000
...
23
BOLT 4x12 ECH-V202000000
...
24
CUSHION 4 ECH-10092139131
...
24
CUSHION 4 ECH-10092139131
...
25
RING, HARNESS ECH-C646000040
...
25
RING, HARNESS ECH-C646000040
...
26
BRACKET, HARNESS ECH-C626000040
...
26
BRACKET, HARNESS ECH-C626000040
...
27
BOLT 4x25 ECH-90016204025
...
27
BOLT 4x25 ECH-90016204025
