Echo CS-350TES Chainsaw

Model: CS-350TES

Back To Assemblies

Save Part Not Listed?
product name

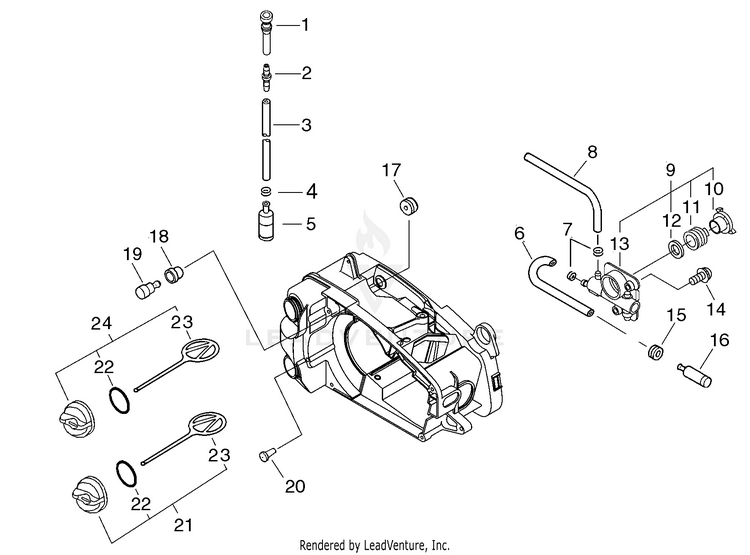

Auto-Oiler, Fuel System

...
...
1
PIPE, FUEL 10X6X32 ECH-V470000322
...
1
PIPE, FUEL 10X6X32 ECH-V470000322
...
2
CONNECTOR, PIPE ECH-V186000510
...
2
CONNECTOR, PIPE ECH-V186000510
...
3
PIPE, FUEL 3x5x260 BLACK ECH-V471000751
...
3
PIPE, FUEL 3x5x260 BLACK ECH-V471000751
...
4
CLIP 6 ECH-V490001240
...
4
CLIP 6 ECH-V490001240
...
5
FILTER, FUEL ECH-A369000470
...
5
FILTER, FUEL ECH-A369000470
...
6
PIPE 3x6x160 ECH-V471000741
...
6
PIPE 3x6x160 ECH-V471000741
...
7
CLIP 6.5 MM ECH-V490001230
...
7
CLIP 6.5 MM ECH-V490001230
...
8
PIPE 3x6x90 MM ECH-V471000761
...
8
PIPE 3x6x90 MM ECH-V471000761
...
9
AUTO-OILER ASSY ECH-P021010890
...
9
AUTO-OILER ASSY ECH-P021010890
...
10
COLLAR 10 ECH-V356000290
...
10
COLLAR 10 ECH-V356000290
...
11
GEAR, WORM ECH-V652000030
...
11
GEAR, WORM ECH-V652000030
...
12
WASHER 10.5x17.4x1.8 ECH-V308000030
...
12
WASHER 10.5x17.4x1.8 ECH-V308000030
...
13
AUTO-OILER ECH-C022000020
...
13
AUTO-OILER ECH-C022000020
...
14
SCREW 4x12 ECH-90023804012
...
14
SCREW 4x12 ECH-90023804012
...
15
GROMMET ECH-13211501462
...
15
GROMMET ECH-13211501462
...
16
FILTER, OIL ECH-P100001900
...
16
FILTER, OIL ECH-P100001900
...
17
GROMMET, FUEL ECH-V137000020
...
17
GROMMET, FUEL ECH-V137000020
...
18
GROMMET, FUEL ECH-V137000001
...
18
GROMMET, FUEL ECH-V137000001
...
19
VENT ASSY ECH-13130056431
...
19
VENT ASSY ECH-13130056431
...
20
VENT ASSY ECH-43611413930
...
20
VENT ASSY ECH-43611413930
...
21
CAP ASSY - BLACK ECH-P021005581
...
21
CAP ASSY - BLACK ECH-P021005581
...
22
O-RING 18 ECH-90072000018
...
22
O-RING 18 ECH-90072000018
...
23
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
23
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
24
CAP ASSY ECH-P021005592
...
24
CAP ASSY ECH-P021005592
...
22
O-RING 18 ECH-90072000018
...
22
O-RING 18 ECH-90072000018
...
23
CONNECTOR, CAP L= 60 MM ECH-A365000050
...
23
CONNECTOR, CAP L= 60 MM ECH-A365000050
