Echo CS-302S S/N: 00000 - 17500 Chainsaw

Model: CS-302S S/N: 00000 - 17500

Back To Assemblies

Save Part Not Listed?
product name

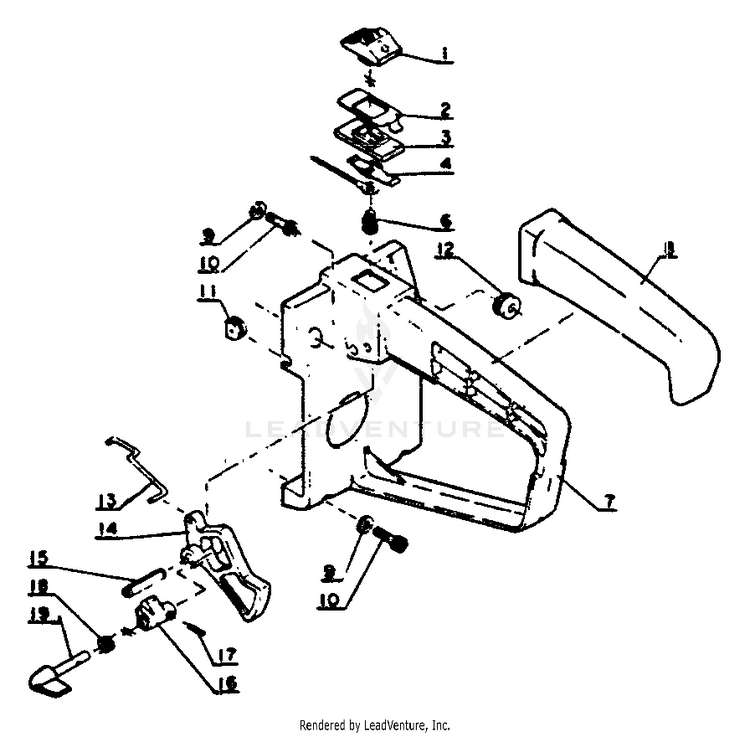

Handles, Rear

...
...
1
SWITCH, IGNITION ECH-16341002830
...
2
PLATE, SWITCH ECH-16341302830
...
3
GUIDE, SWITCH ECH-16341102830
...
4
CONTACT, SWITCH ECH-16341200630
...
6
SCREW 4x10 ECH-90024204010
...
7
HANDLE - REAR ECH-35101003930
...
8
GRIP ECH-35101203930
...
9
WASHER 4 MM ECH-90060000004
...
10
SCREW - 4x18 ECH-90010504018
...
11
GROMMET ECH-15011403930
...
12
GROMMET ECH-17881003930
...
13
ROD, THROTTLE ECH-17801103930
...
14
TRIGGER, THROTTLE ECH-17801003930
...
15
PIN, SPRING 5x25 ECH-90034050025
...
16
LOCKOUT, TRIGGER ECH-17801203930
...
17
PIN, SPRING 16x10 ECH-90034016010
...
18
SPRING, THROTTLE LOCKOUT ECH-17801303930
...
19
LEVER, THROTTLE ECH-17800803430
