Echo CS-302S S/N: 00000 - 17500 Chainsaw

Model: CS-302S S/N: 00000 - 17500

Back To Assemblies

Save Part Not Listed?
product name

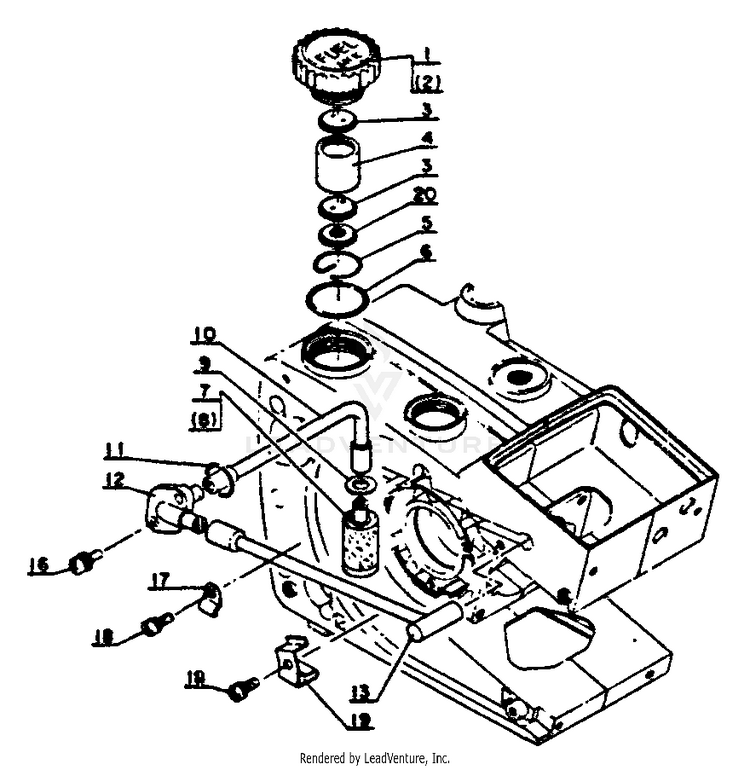

Fuel System

...
...
1
CAP ASSY ECH-13160003932
...
3
SPACER ECH-13103103430
...
4
SPACER ECH-13103003930
...
5
RING, RETAINING ECH-13103203930
...
20
FILTER, FUEL ECH-13103503431
...
2
LABEL - FUEL MIX ECH-89015403930
...
6
O-RING 22 ECH-90072000022
...
7
FILTER, FUEL ECH-A369000470
...
8
FUEL STRAINER COVER ECH-13121402830
...
9
WASHER 6.5x11.5x0.8 ECH-90060000006
...
10
PIPE ECH-13201003930
...
11
O-RING 14 MM ECH-90072000014
...
12
CONNECTOR, PIPE ECH-13201103930
...
13
PIPE, FUEL - OUTER ECH-13201203930
...
16
SCREW 4x12 ECH-90024204012
...
17
SPACER ECH-13211203930
...
18
SCREW 4x10 ECH-90024204010
...
19
CLIP, CORD ECH-15911203930
