Echo CS-302S S/N: 00000 - 17500 Chainsaw

Model: CS-302S S/N: 00000 - 17500

Back To Assemblies

Save Part Not Listed?
product name

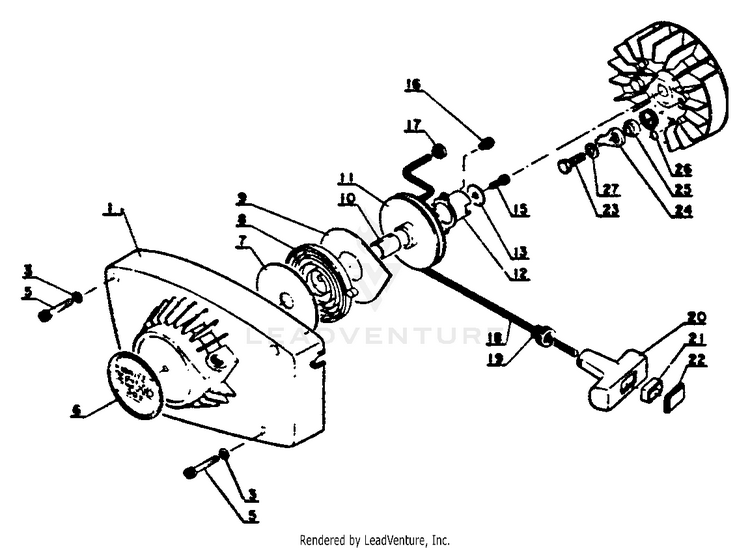

Starter

...
...
xx
STARTER ASSY, RECOIL ECH-17720003930
...
1
COVER, FAN ECH-10150703930
...
7
PLATE, SIDE ECH-17722103930
...
8
SPRING, RECOIL ECH-17722003930
...
9
PLATE, SIDE ECH-17724203930
...
10
BUSHING ECH-17721603930
...
11
REEL, ROPE ECH-17721503930
...
12
PAWL CATCHER ECH-17724303930
...
13
WASHER 4.2x16.5x1 ECH-17721403930
...
15
BOLT 4x12 ECH-90010504012
...
16
SCREW 4x8 ECH-90024104008
...
17
CLIP, STARTER ROPE ECH-17724603930
...
18
ROPE, STARTER 3.5x850 RePower BULK OPTION: 99944445000 ECH-17722603930
...
19
GUIDE, ROPE ECH-17722705330
...
20
HANDLE ECH-17722812330
...
21
WASHER ECH-17722902830
...
22
COVER, HANDLE ECH-17724402830
...
3
WASHER 4 MM ECH-90060000004
...
5
BOLT 4x30 ECH-90010504030
...
6
LABEL - ECHO ECH-89011849330
...
23
BOLT - 5x16 ECH-90010005016
...
24
PAWL, STARTER ECH-17721803930
...
25
SPACER ECH-17724703932
...
26
SPRING ECH-17723403931
...
27
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
