Echo CS-302S S/N: 00000 - 17500 Chainsaw

Model: CS-302S S/N: 00000 - 17500

Back To Assemblies

Save Part Not Listed?
product name

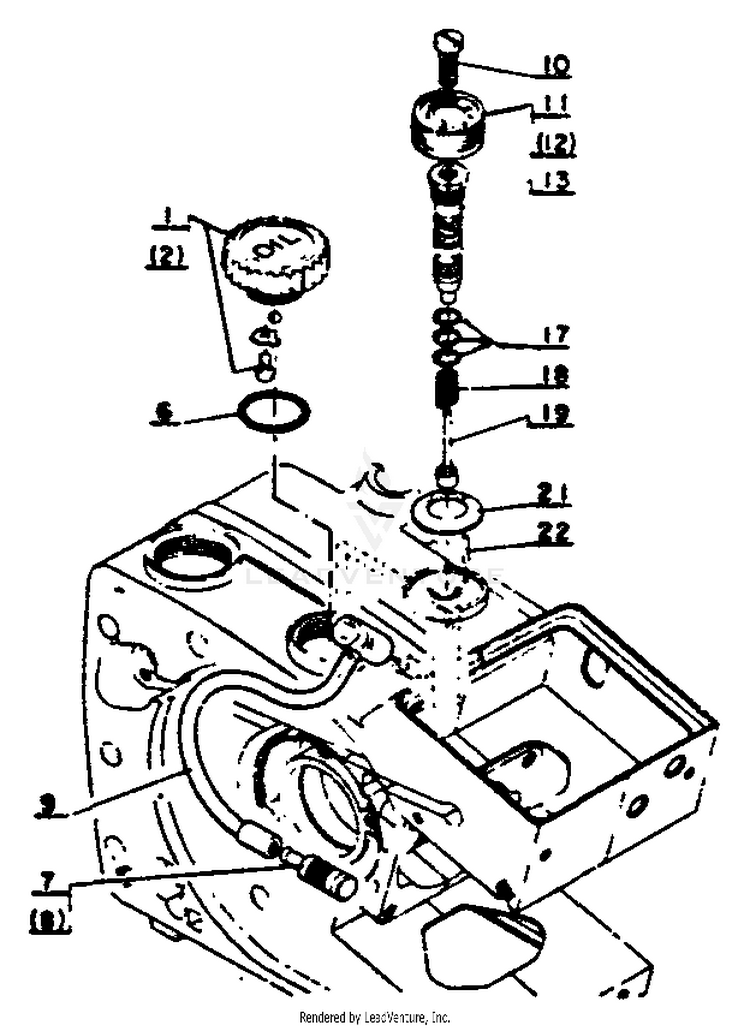

Oiler, Auto

...
...
1
OIL CAP ASSY. ECH-43600211431
...
2
OIL DECAL ECH-89015318030
...
6
O-RING 16 MM ECH-90072000016
...
7
FILTER, OIL ECH-P100001900
...
8
UNKNOWN ECH---
...
9
PIPE, OIL ECH-43721103932
...
10
SCREW 5x14 ECH-90022005014
...
11
DIAL, AUTO-OILER ECH-43703943430
...
12
LABEL - CAUTION ECH-89002243430
...
13
AUTO-OILER ASSY Includes ITEM 19 ECH-43700003430
...
17
O-RING ECH-43702002830
...
18
SPRING ECH-43701902830
...
21
FLAT SPRING ECH-43703603430
...
22
BEARING, NEEDLE ECH-90033015098
