Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

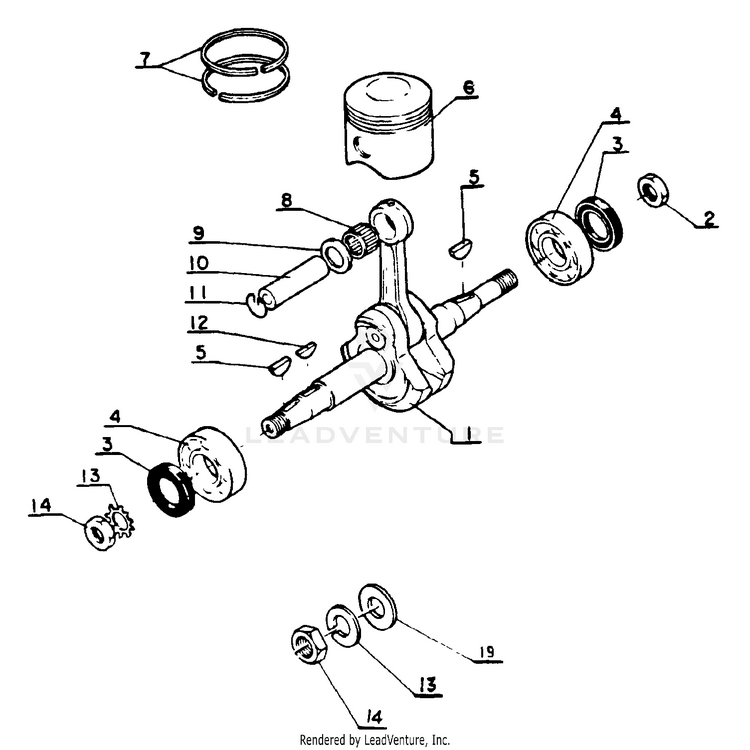

Crankshaft, Piston

...
...
1
CRANKSHAFT ASSY ECH-10010000830
...
2
NUT 8 LH ECH-61032003830
...
3
SEAL, OIL ECH-10021200830
...
4
BEARING, BALL 6202 ECH-90081006202
...
5
KEY, WOODRUFF 3x14 ECH-90032303014
...
6
OBS ECH-10001001620
...
7
RING, PISTON ECH-10001101110
...
8
BEARING, NEEDLE 10 ECH-10001212331
...
9
SPACER, PISTON NOT USED ON THIS MODEL ECH---
...
10
PIN, PISTON ECH-10001300410
...
11
RING, SNAP 8 ECH-10001500120
...
12
KEY Not used on this model ECH---
...
13
WASHER, SPRING 8 ECH-90060500008
...
14
NUT M8 ECH-90050000008
...
19
WASHER 8.5x16x1.2 ECH-90060000008
