product name

Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

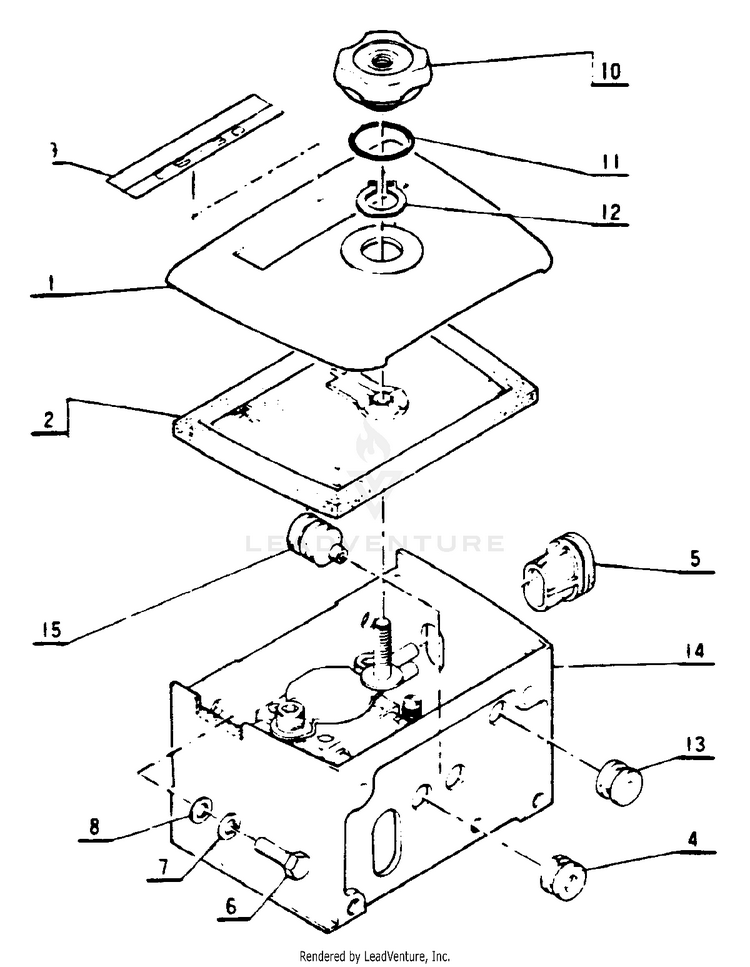

Air Cleaner

...
...
1
COVER, AIR FILTER ECH-13031300830
...
2
FILTER, AIR ECH-13030500830
...
4
GROMMET ECH-17811500830
...
5
GROMMET ECH-12901000830
...
6
BOLT 5x12 ECH-90010005012
...
7
WASHER, SPRING 5 ECH-90060500005
...
8
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
9
NAME LABEL ECH-89002100831
...
10
WINGNUT ECH-13040600830
...
11
O-RING 14 MM ECH-90072000014
...
12
E-RING ECH-90070100011
...
13
BUSHING, RUBBER ECH-17881002831
...
14
CASE, CARBURETOR ECH-13031400830
...
15
GROMMET ECH-17821100830
Schematic Image Zoomed
