Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

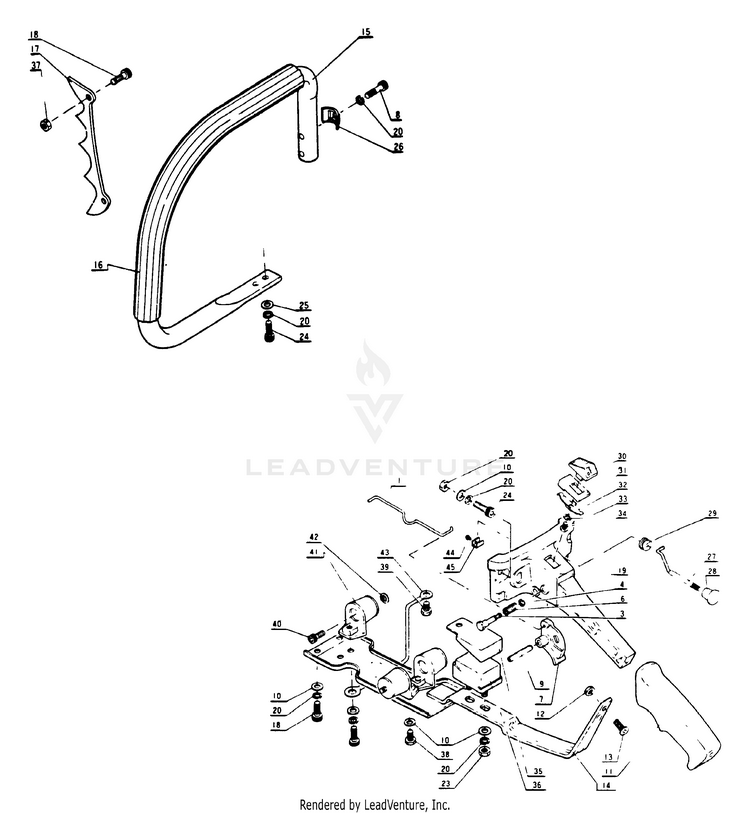

Handle

...
...
1
ROD, CHOKE ECH-17801100830
...
3
LOCKOUT, TRIGGER ECH-17801200831
...
4
E-RING 3 ECH-90070000003
...
6
LEAF SPRING ECH-17801300430
...
7
TRIGGER, THROTTLE ECH-17801000830
...
8
BOLT 5x25 ECH-90010505025
...
9
PIN ECH-17811000830
...
10
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
11
RIGHT HANDLE RUBBER ECH-35101200830
...
12
NUT, LOCK M5 ECH-90056000005
...
13
SCREW - 5x15 ECH-90010505015
...
14
RIGHT HANDLE SUPPORTER ECH-35101100830
...
15
LEFT HANDLE ECH-35120500830
...
16
GRIP, HANDLE ECH-35121300830
...
17
BUMPER, SPIKED ECH-88021000830
...
18
BOLT M5x10 ECH-90010505010
...
19
RIGHT HANDLE ECH-35101000830
...
20
BOLT - 5x16 ECH-90010005016
...
21
BOLT - 5x16 ECH-90010005016
...
23
NUT M5 ECH-90050000005
...
24
SCREW - 5x15 ECH-90010505015
...
25
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
26
HANDLE SET PLATE NOT USED ON THIS MODEL ECH---
...
27
ROD, CHOKE ECH-17850100831
...
28
BUTTON ECH-17851200430
...
29
GROMMET ECH-17881000230
...
30
IGNITION SWITCH ASSY ECH-16341000630
...
31
GUIDE, SWITCH ECH-16341100830
...
32
CONTACT, SWITCH ECH-16341200630
...
33
WASHER, SPRING 4 ECH-900605-00004
...
34
SCREW 4x8 ECH-90022004008
...
35
STOPPER B NOT USED ON THIS MODEL ECH---
...
36
STOPPER A NOT USED ON THIS MODEL ECH---
...
37
NUT NOT USED ON THIS MODEL ECH---
...
38
BOLT NOT USED ON THIS MODEL ECH---
...
39
BOLT NOT USED ON THIS MODEL ECH---
...
40
BOLT NOT USED ON THIS MODEL ECH---
...
41
CUSHION NOT USED ON THIS MODEL ECH---
...
------------------
WASHER, SEAL NOT USED ON THIS MODEL ECH---
...
43
LEAD - GROUND NOT USED ON THIS MODEL ECH---
...
44
TERMINAL - GROUND NOT USED ON THIS MODEL ECH---
...
45
RIVET NOT USED ON THIS MODEL ECH---
