Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

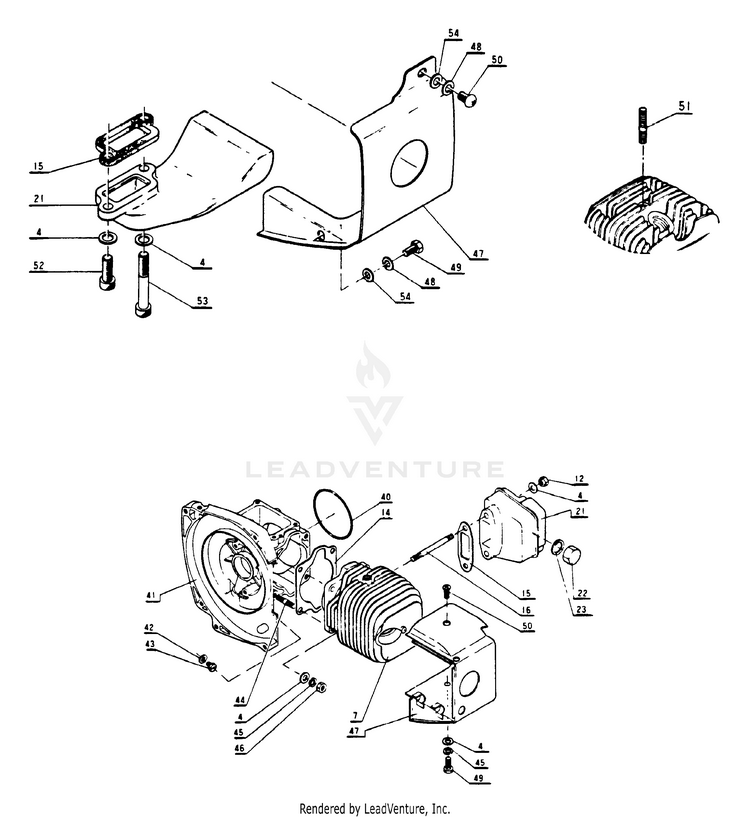

Engine, Exhaust

...
...
4
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
7
CYLINDER ECH-10100000831
...
12
LOCKNUT Not used on this model ECH---
...
14
GASKET, CYLINDER ECH-10101000830
...
15
GASKET, EXHAUST ECH-14551000830
...
16
STUD Not used on this model ECH---
...
21
MUFFLER ECH-14561000830
...
22
CAP Not used on this model ECH---
...
23
GASKET, CAP Not used on this model ECH---
...
40
O-RING Not used on this model ECH---
...
41
CRANKCASE Not used on this model ECH---
...
42
PACKING Not used on this model ECH---
...
43
BOLT Not used on this model ECH---
...
44
STUD ECH-10021400830
...
45
WASHER, SPRING 5 ECH-90060500005
...
46
NUT ECH-900500-00004
...
47
SHIELD, CYLINDER ECH-10151400830
...
48
WASHER, SPRING 4 ECH-900605-00004
...
49
BOLT ECH-10152500830
...
50
SCREW 4x8 ECH-90022004008
...
51
STUD Not used on this model ECH---
...
52
BOLT M5x18 ECH-90010505018
...
53
SCREW - 5x35 ECH-90010505035
...
54
WASHER 4 MM ECH-90060000004
