Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

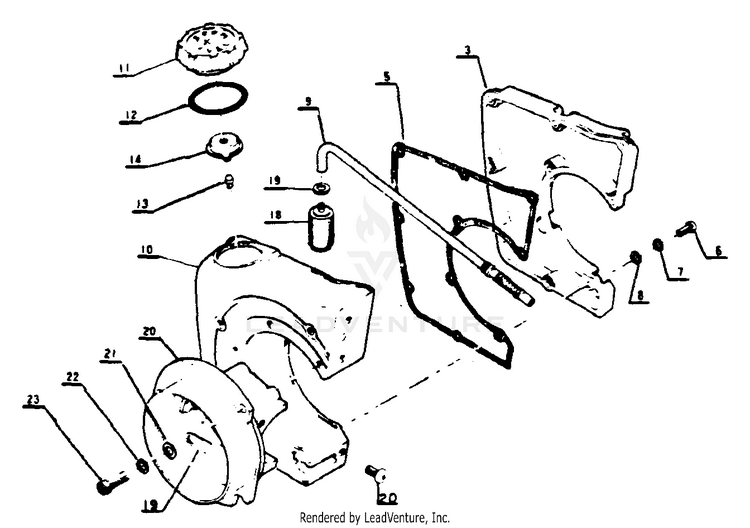

Fuel System

...
...
3
LID, FUEL TANK ECH-13101200830
...
5
GASKET, FUEL TANK ECH-13101100830
...
6
SCREW 4x12 ECH-90022004012
...
7
WASHER, SPRING 4 ECH-900605-00004
...
8
WASHER 4 MM ECH-90060000004
...
9
PIPE, FUEL ITEM IS NO LONGER AVAILABLE ECH-13201000830
...
10
TANK, FUEL ECH-13101000832
...
11
CAP ECH-13101700430
...
12
O-RING 29 ECH-90072000029
...
13
VALVE ECH-A356000070
...
14
HOLDER, VENT ECH-13101500830
...
18
FILTER, FUEL ECH-A369000470
...
19
WASHER 6.5x11.5x0.8 ECH-90060000006
...
20
CRANKCASE ECH-10020000832
...
21
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
22
WASHER, SPRING 5 ECH-90060500005
...
23
SCREW - 5x15 ECH-90010505015
