Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

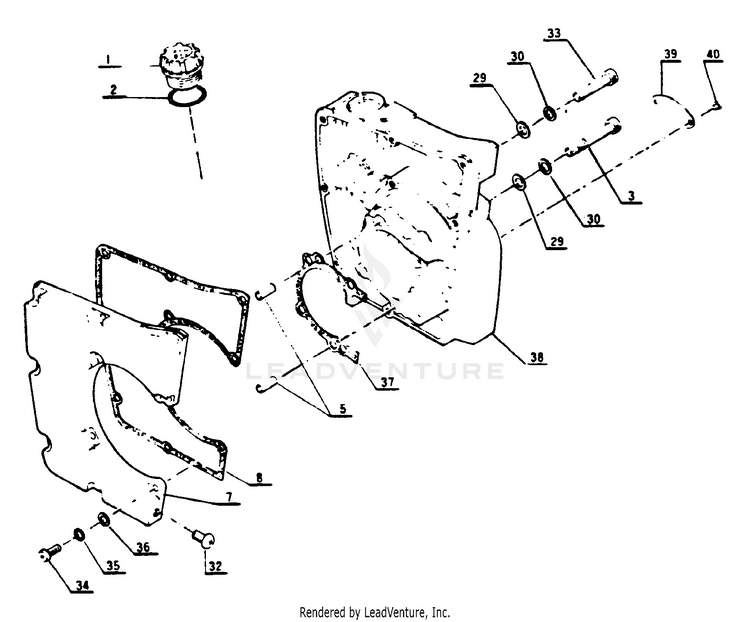

Oil Tank

...
...
1
CAP ECH-43600000130
...
2
O-RING 18 ECH-90072000018
...
3
BOLT 5x40 ECH-90010505040
...
5
PIN, LOCATING 5x10 ECH-10021502830
...
7
TANK, OIL ECH-43602000830
...
8
OIL TANK PACKING ECH-43601900830
...
29
WASHER ECH-10024702830
...
30
WASHER, SPRING 5 ECH-90060500005
...
32
SCREW 4x8 ECH-90022004008
...
33
BOLT 5x40 ECH-90010505040
...
34
SCREW 4x12 ECH-90022004012
...
35
WASHER, SPRING 4 ECH-900605-00004
...
36
WASHER 4 MM ECH-90060000004
...
37
GASKET, CRANKCASE ECH-10024200830
...
38
CRANKCASE ECH-10020000832
...
39
MODEL PLATE ECH-89001000831
...
40
RIVET ECH-89001100130
