Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

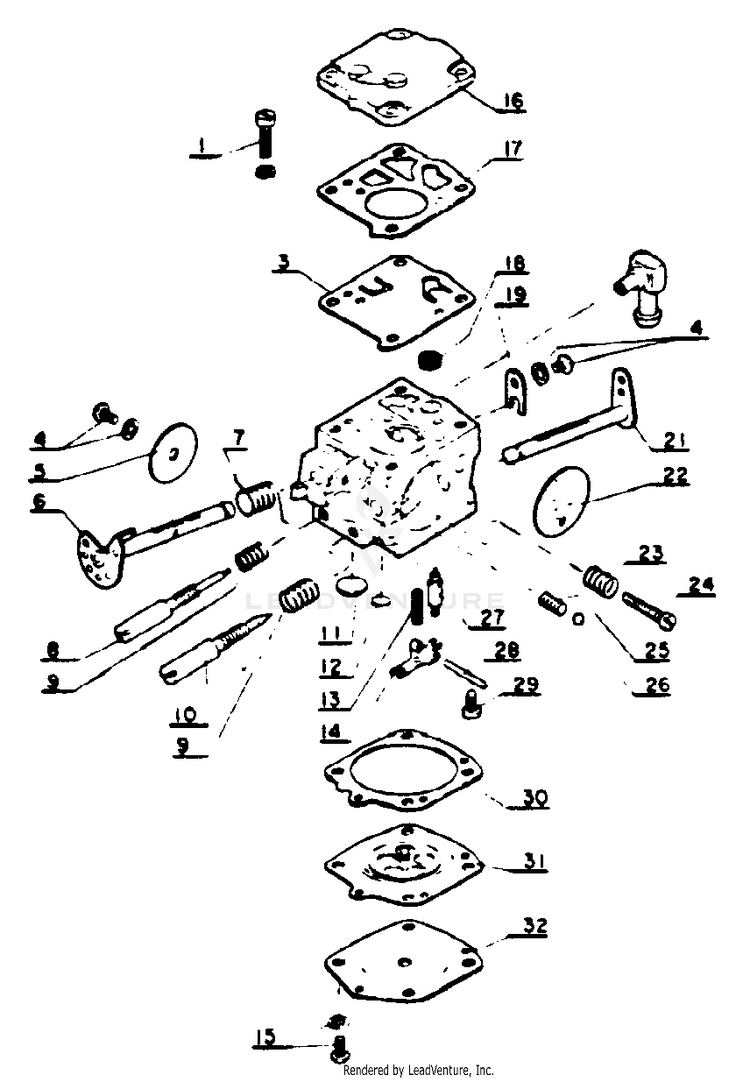

Carburetor

...
...
xx
OBS ECH-12200004130
...
1
SCREW ECH-12211000830
...
3
DIAPHRAGM, PUMP ECH-12211200830
...
4
SCREW ECH-12211400231
...
5
VALVE, THROTTLE ECH-12211600830
...
6
SHAFT, THROTTLE ECH-12211700830
...
7
SPRING, RETURN ECH-12211300830
...
8
SCREW, IDLE ADJUST ECH-12211800830
...
9
SCREW, IDLE ADJUST ECH-12211900230
...
10
SCREW, MAIN ADJUST ECH-12212000430
...
11
PLUG, WELCH - LARGE ECH-12214500830
...
12
PLUG, WELCH - SMALL ECH-12214600830
...
13
SPRING, METERING LEVER ECH-12212200830
...
14
OBS ECH-12212303230
...
15
SCREW ECH-12214400230
...
16
COVER, PUMP ECH-12212400830
...
17
GASKET, PUMP ECH-12212500830
...
18
FILTER, FUEL ECH-12212600230
...
19
CLIP, THROTTLE SHAFT ECH-12212700230
...
20
SCREW, IDLE ADJUST ECH-12211900230
...
21
SHAFT, CHOKE NOT USED ON THIS MODEL ECH---
...
22
VALVE, CHOKE NOT USED ON THIS MODEL ECH---
...
23
SPRING, IDLE ADJUST ECH-12213300230
...
24
SCREW, IDLE ADJUST ECH-12213400230
...
25
SPRING, CHOKE NOT USED ON THIS MODEL ECH---
...
26
BALL, CHOKE NOT USED ON THIS MODEL ECH---
...
27
VALVE, INLET NEEDLE ECH-12213700230
...
28
PIN, METERING LEVER ECH-12213800830
...
29
SCREW, METERING LEVER PIN ECH-12213900230
...
30
GASKET, DIAPHRAGM ECH-12214000830
...
31
DIAPHRAGM ECH-12214100830
...
32
COVER, DIAPHRAGM ECH-12214200830
