Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

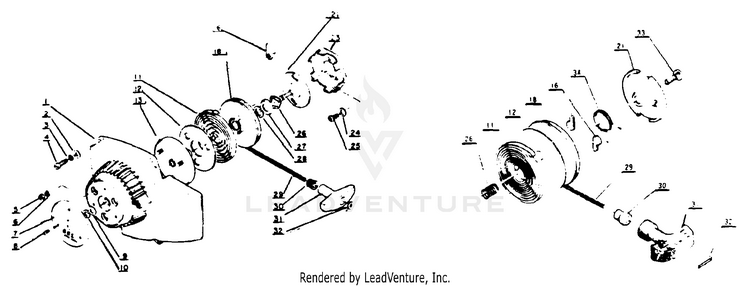

Starter

...
...
xx
STARTER ASSY ECH-17720000830
...
1
CASE, STARTER Included in Starter ass'y ECH-10151100830
...
2
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
3
WASHER, SPRING 5 ECH-90060500005
...
4
BOLT ECH-90010505045
...
5
NUT Not used on this model ECH---
...
------------------
WASHER, SPRING Not used on this model ECH---
...
7
NAME PLATE ECH-89001200831
...
8
SCREW Not used on this model ECH---
...
9
WASHER Not used on this model ECH---
...
10
RING, RETAINING Not used on this model ECH---
...
11
SPRING, REWIND Included in Starter ass'y ECH-17722000830
...
12
PLATE, SIDE Not used on this model ECH---
...
------------------
RETAINER, SPRING Not used on this model ECH---
...
16
RATCHET Included in Starter ass'y ECH-17721800910
...
18
PLATE, FRICTION Included in Starter ass'y ECH-17721500830
...
21
PLATE, FRICTION Included in Starter ass'y ECH-17721500830
...
23
CATCHER, PAWL Included in Starter ass'y ECH-17721000830
...
24
LOCKWASHER Not used on this model ECH---
...
25
BOLT M5x10 ECH-90010505010
...
26
SPRING Included in Starter ass'y ECH-17723300910
...
27
WASHER Not used on this model ECH---
...
28
RING, RETAINING Not used on this model ECH---
...
29
ROPE, STARTER 4.0x880 RePower BULK OPTION: 99944450000 ECH-17722601110
...
30
GUIDE, ROPE Included in Starter ass'y ECH-17722705530
...
31
GRIP, STARTER Included in Starter ass'y ECH-17722801110
...
32
WASHER Not used on this model ECH---
...
33
SCREW, SET Included in Starter ass'y ECH-17723600830
...
34
SPRING, RETURN Included in Starter ass'y ECH-17723400830
...
35
NUT - 5 - CAP Included in Starter ass'y ECH-90053000005
