Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

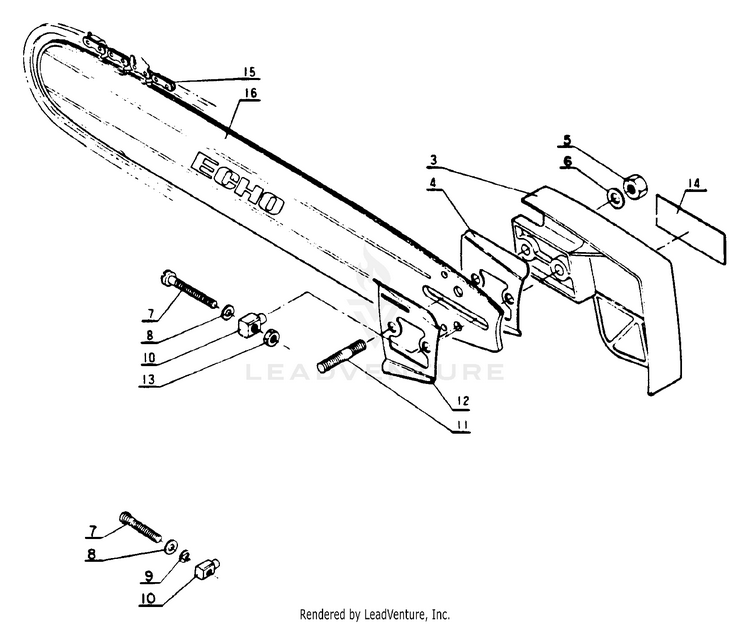

Cutting Attachment

...
...
3
GUARD, SPROCKET ECH-43301000830
...
4
PLATE, GUIDE - OUTER ECH-43301200830
...
5
NUT M8 ECH-90050000008
...
6
WASHER 8.5x16x1.2 ECH-90060000008
...
7
SCREW, ADJUSTER ECH-43301600830
...
8
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
9
RING, RETAINING NOT USED ON THIS MODEL ECH---
...
10
TENSIONER, CHAIN ECH-43301403931
...
11
STUD, GUIDE BAR ECH-43301100330
...
12
PLATE, GUIDE - INNER ECH-43301300830
...
13
NUT, LOCK M5 ECH-90056000005
...
14
ECHO PLATE ECH---
...
------------------
SAW CHAIN See Chainsaw Accessories ECH---
...
16
GUIDE BAR See Chainsaw Accessories ECH---
