Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

Oiler, Auto

...
...
1
GASKET ECH-43721900830
...
2
HOLDING BOLT ECH-43722000630
...
4
PIPE, OIL - INNER ITEM IS NO LONGER AVAILABLE ECH-43721000830
...
5
FILTER, OIL ECH-43621000332
...
15
SCREW 3x6 ECH-90022003006
...
26
VALVE, BALL ECH-43701200330
...
27
SPRING, COMPRESSION ECH-V450000290
...
34
CLIP NOT USED ON THIS MODEL ECH---
...
36
SPRING, OIL PUMP ECH-43711100830
...
37
O-RING 7 MM ECH-90072000007
...
39
PISTON, OIL PUMP ECH-43710100830
...
40
PUSH BUTTON ECH-43711900830
...
49
PIPE, OIL ITEM IS NO LONGER AVAILABLE ECH-43720700830
...
53
HOLDING BOLT ECH-43722200830
...
62
GROMMET ECH-43751000830
...
63
SEAL, DUST ECH-10061000830
...
64
SEAL, DUST ECH-10060500830
...
65
PIPE, OIL ITEM IS NO LONGER AVAILABLE ECH-43720900830
...
67
CONNECTOR ECH-43721400830
...
68
PIPE, OIL ITEM IS NO LONGER AVAILABLE ECH-43720600830

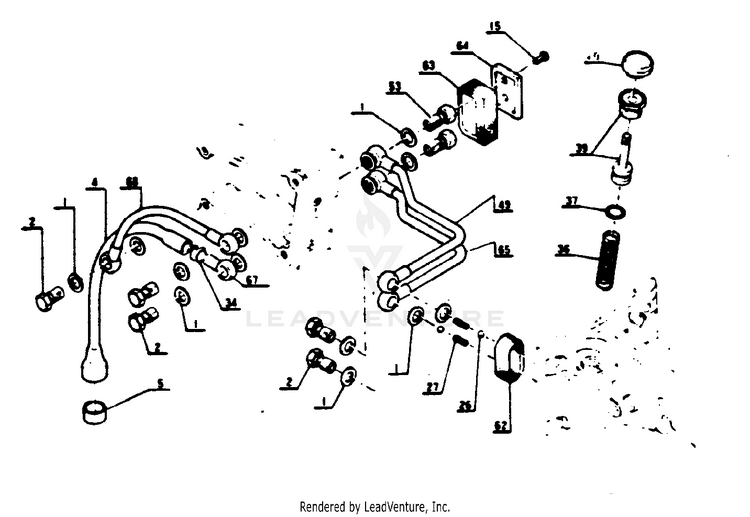

Schematic Image Zoomed
