Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

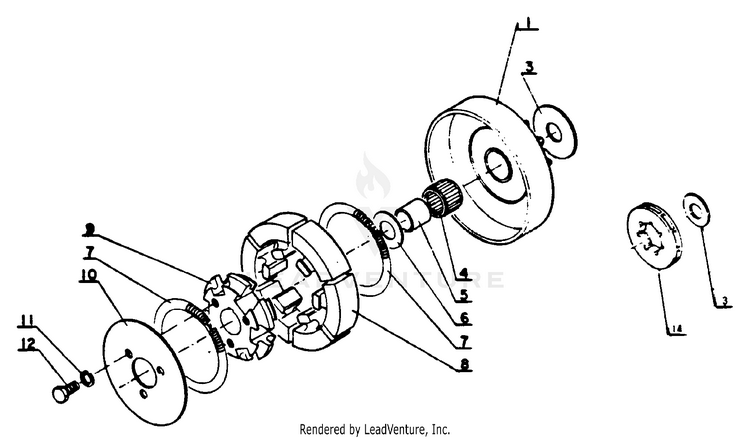

Clutch

...
...
1
DRUM, CLUTCH ECH-17500700830
...
3
WASHER, CLUTCH ECH-17501400830
...
4
BEARING, NEEDLE ECH-17501200831
...
5
SPACER Not used on this model ECH---
...
6
WASHER, CLUTCH ECH-17501500830
...
xx
CLUTCH ASSY ECH-17500000830
...
7
CLUTCH SPRING Included in Clutch ass'y ECH-17501804531
...
8
SHOE, CLUTCH Included in Clutch ass'y ECH-17501700830
...
9
HUB, CLUTCH Included in Clutch ass'y ECH-17501600830
...
10
PLATE, CLUTCH Included in Clutch ass'y ECH-17501900830
...
11
WASHER - SPRING Not used on this model ECH---
...
12
BOLT Not used on this model ECH---
...
14
LIM ECH-17503300830
