Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?

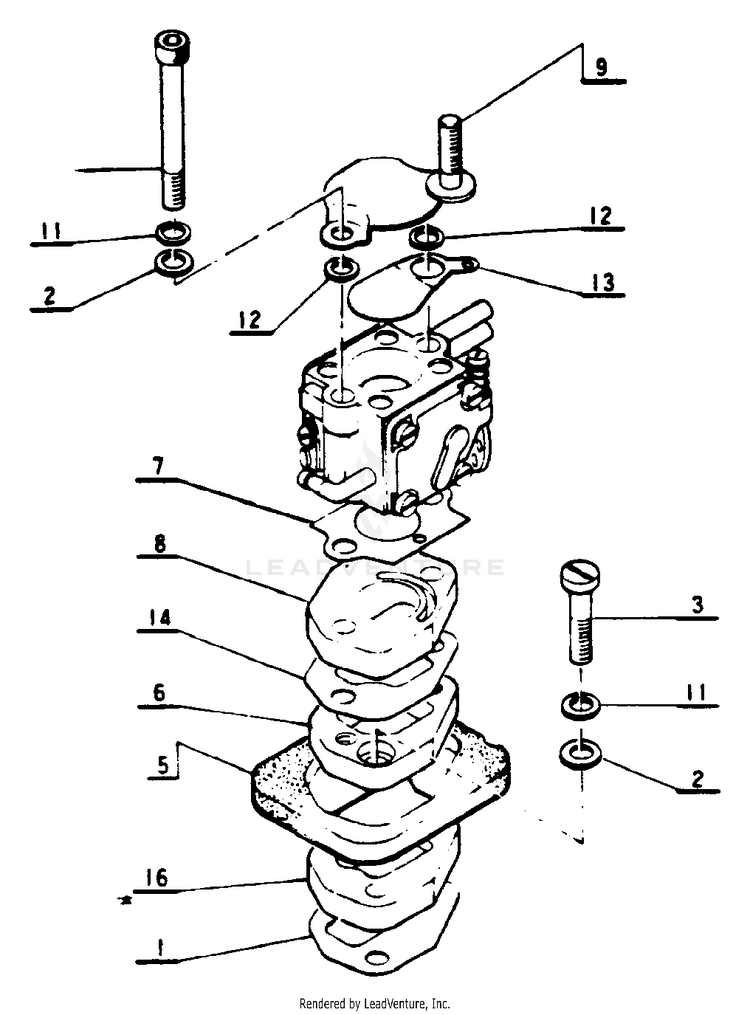

product name

Intake

...
...
1
GASKET, INTAKE ECH-13001000830
...
2
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
3
BOLT ECH-13001500831
...
5
SEAL, DUST ECH-13000600830
...
6
CASE, CARBURETOR ECH-13001300830
...
7
GASKET, INTAKE ECH-13001600830
...
8
INSULATOR ECH-13002300830
...
9
PLATE, PREVENT ECH-13040500830
...
10
BOLT ECH-90010505045
...
11
WASHER, SPRING 5 ECH-90060500005
...
12
WASHER 5.2x8x0.8T ECH-17851600830
...
13
SHUTTER, CHOKE ECH-17851500830
...
14
PACKING ECH-13002200830
...
16
INSULATOR ECH-13071700830
