Echo CS-301 S/N: 00100 & Up Chainsaw

Model: CS-301 S/N: 00100 & Up

Back To Assemblies

Save Part Not Listed?
product name

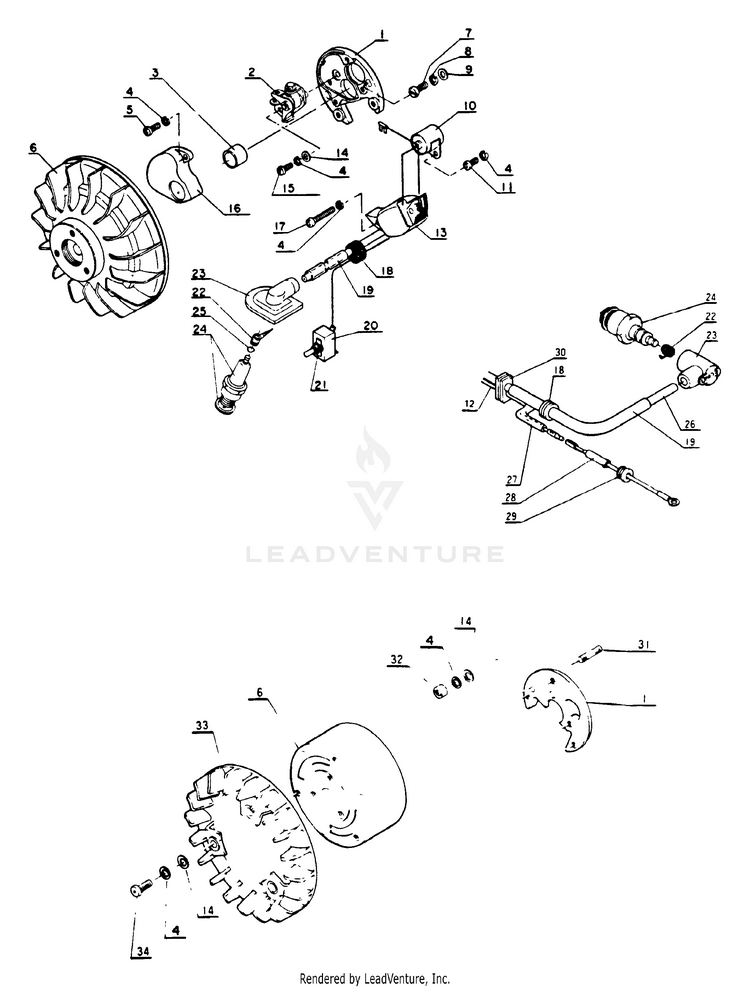

Ignition

...
...
xx
FLYWHEEL ECH-15000000830
...
xx
STATOR ASSY Included in Magneto ass'y ECH-15010000830
...
1
PLATE, STATOR Included in Stator ass'y ECH-15013200830
...
2
CONTACT POINT SET Included in Stator ass'y ECH-15010100830
...
3
CAM Not used on this model ECH---
...
4
WASHER, SPRING 4 Included in Stator ass'y ECH-900605-00004
...
5
SCREW Not used on this model ECH---
...
6
FLYWHEEL Included in Magneto ass'y ECH-15020100830
...
7
SCREW Not used on this model ECH---
...
8
WASHER - SPRING Not used on this model ECH---
...
9
WASHER Not used on this model ECH---
...
10
CONDENSER Included in Stator ass'y ECH-15012700830
...
11
SCREW 4x8 Included in Stator ass'y ECH-90022004008
...
------------------
LEAD, ON-OFF Not used on this model ECH---
...
13
COIL, IGNITION Included in Stator ass'y ECH-15012600830
...
14
SCREW 4x8 Included in Stator ass'y ECH-90022004008
...
15
SCREW 4x8 Included in Magneto ass'y ECH-90022004008
...
------------------
COVER Not used on this model ECH---
...
17
SCREW 4x20 Included in Stator ass'y ECH-90022004020
...
18
BUSHING ECH-15011000430
...
19
TUBE, INSULATOR ECH-15011100430
...
20
SWITCH, IGNITION Not used on this model ECH---
...
21
CAP Not used on this model ECH---
...
22
TERMINAL, SPARK PLUG ECH-15901103432
...
23
CAP, SPARK PLUG ECH-15901203433
...
24
FLYWHEEL ECH-159010-00330
...
------------------
CLIP Not used on this model ECH---
...
26
LEAD, SPARK PLUG Included in Stator ass'y ECH-15012900430
...
27
TUBE ECH-15011300830
...
------------------
LEAD, ON-OFF Not used on this model ECH---
...
29
BUSHING Not used on this model ECH---
...
30
BUSHING ECH-15011200830
...
31
STUD ECH-10025700830
...
32
NUT ECH-15011600830
...
33
FAN ECH-15021000830
...
34
SCREW 4x12 ECH-90022004012
