Echo 99988802200 FASTENSION Tool-Less Tensioning System

Model: 99988802200 FASTENSION Tool-Less Tensioning

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

99988802200 Tool-Less Tensioner

...
...
1
CHAIN TENSIONING ASSY, TOOL-LESS Includes ITEMS 2-28 ECH-99988802200
...
2
KNOB, SPROCKET GUARD ECH-J141000170
...
3
SCREW 4x12 ECH-V202000060
...
4
WHEEL, TENSION ECH-V650000600
...
5
WASHER, WAVE ECH-V346000130
...
6
WASHER 5 ECH-V303000360
...
7
COVER, WHEEL ECH-C713000340
...
8
SCREW 3x6 ECH-90022003006
...
9
PLATE, GUIDE - OUTER ECH-C305000420
...
10
SCREW 3 ECH-V251000140
...
11
PLATE, EYE ECH-V150003241
...
12
SPRING, COMPRESSION ECH-V450001690
...
13
BALL ECH-V585000060
...
14
COVER, GEAR ECH-C233000080
...
15
GEAR, SPUR ECH-V650000590
...
16
COLLAR 4 ECH-V352000280
...
17
TENSIONER, CHAIN ECH-C309000170
...
18
SCREW, CHAIN TENSIONER ECH-V203002020
...
19
SCREW 4x12 ECH-V202000060
...
20
COVER, BRAKE ECH-C345000530
...
21
SPACER 8x12x9 ECH-43311635430
...
22
CONNECTOR, BRAKE ECH-C334000090
...
23
GUIDE ECH-V376000450
...
24
SPRING, COMPRESSION ECH-V450000070
...
25
PIN, SPRING 3x9.8 ECH-9305030098
...
26
BAND, BRAKE ECH-C328000080
...
27
LABEL - ECHO ECH-X502000340
...
28
GUARD, SPROCKET ECH-C300000910

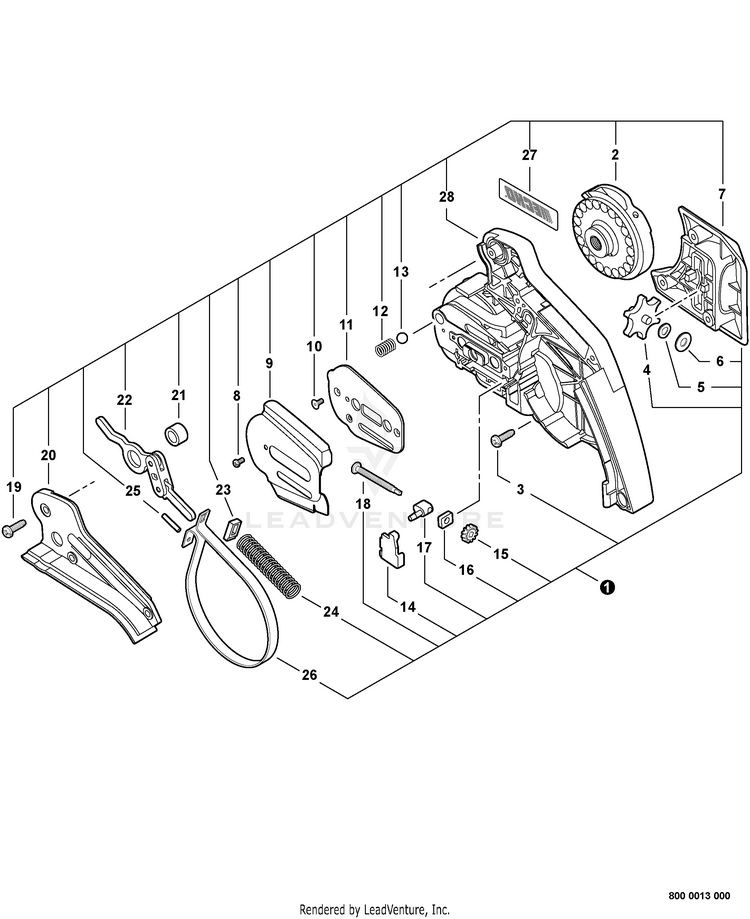

Schematic Image Zoomed
