Echo 99988800130 Liquid Pump

Model: 99988800130 Liquid Pump

Save Part Not Listed?
product name

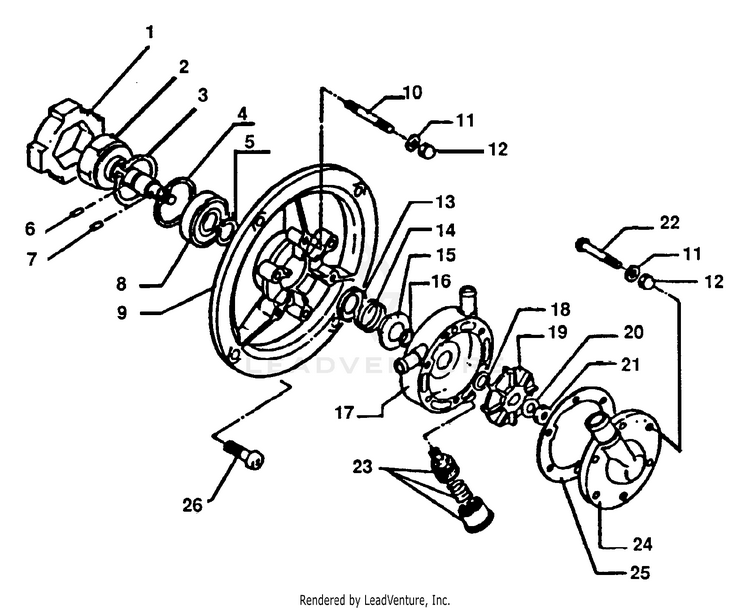

99988800130 Liquid Pump

...
...
1
CONNECTOR ECH-60101001110
...
2
SHAFT ECH-40010501110
...
3
RING, RETAINING - 30 ECH-90070100030
...
4
RING, SNAP 32 ECH-90070200032
...
5
RING, SNAP 12 ECH-90070100012
...
6
PIN ECH-40011400210
...
7
PIN ECH-40011300210
...
8
BEARING, BALL 6201 ECH-9405406201
...
9
BASE, PUMP ECH-40091002810
...
10
STUD ECH-40091100910
...
11
WASHER 4 MM ECH-90060000004
...
12
NUT ECH-40091200910
...
13
RETAINER ECH-40011800910
...
14
SPRING ECH-40011700910
...
15
SEAL ECH-40011500910
...
16
O-RING 9 MM ECH-90072000009
...
17
BODY, PUMP ECH-40020500910
...
18
WASHER ECH-40011100210
...
19
IMPELLER ECH-40011000910
...
20
WASHER 6.5x11.5x0.8 ECH-90060000006
...
21
NUT - 6 ECH-90050400006
...
22
SCREW 4x38 ECH-90022004038
...
23
CUP ASSY, GREASE ECH-88000001111
...
24
LID ECH-40021300910
...
25
GASKET, PUMP ECH-40021200910
...
26
SCREW 6x15 ECH-90024206015

DM-9 Optional Attachments

...
...
1
Y-T NOZZLE ECH-21010000310
...
2
NOZZLE, GRANULE SPREADING ECH-21150001611
...
3
NOZZLE, FAN HEAD ECH-21270001110
...
4
NOZZLE ASSY ECH-212500-01111
...
5
DUSTING HOSE - 20M ECH-22000001810
...
5
HOSE, DUSTING - 30M ECH-99988800260
...
5
DUSTING HOSE - 40M ECH-22000201810
...
6
LIQUID PUMP ECH-99988800130

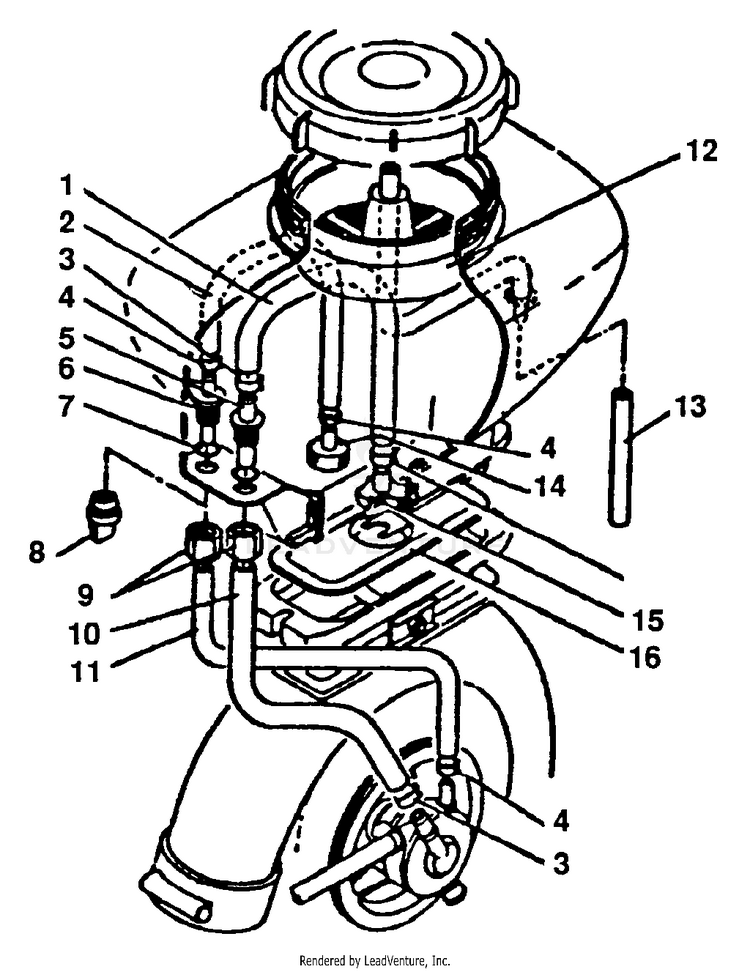

Liquid Pump Hoses

...
...
1
PIPE Obtain Locally ECH---
...
2
HOSE, FLUID ECH-38601001110
...
3
CLAMP ECH-357023-01110
...
4
CLIP 10.5 MM ECH-13201314010
...
5
CONNECTOR, PIPE ECH-35701001110
...
6
FITTING, GREASE ECH-38601201110
...
7
O-RING 3x13 ECH-35701401110
...
8
PLUG, RUBBER ECH-25001601110
...
9
NUT 14 ECH-35701501110
...
10
PIPE Obtain Locally ECH---
...
11
HOSE, FLUID ECH-38601101110
...
12
FILTER ECH-25421010510
...
13
PIPE, OUTER PRESSURE 7x11x170L ECH-36301100210
...
14
NIPPLE ECH-38601301110
...
15
CONNECTOR ECH-355012-00910
...
16
PLATE ECH-25301001111

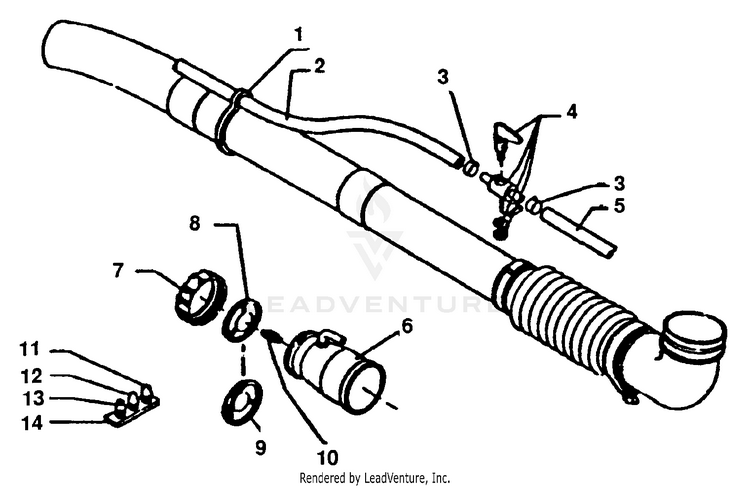

Liquid Pump Nozzles

...
...
1
CLIP, TUBE 55 ECH-35791100111
...
2
HOSE, FLUID ECH-38401001510
...
3
CLIP 10.5 MM ECH-13201314010
...
4
VALVE ASSY ECH-35801000310
...
5
HOSE, FLUID ECH-36901100410
...
6
NOZZLE, MISTING ECH-21260501110
...
7
NUT ECH-212514-01110
...
8
DISC, ATOMIZER - S ECH-21260001110
...
9
DISC, ATOMIZER - F ECH-21260101110
...
10
NOZZLE- 3.2 ECH-22211500210
...
11
NOZZLE- 2.6 ECH-22211400210
...
12
NOZZLE - 1.6 ECH-22211100210
...
13
NOZZLE - 2.2 ECH-22211300210
...
14
HOLDER, NOZZLE ECH-22211000210
