Echo 99946400023 Power Pruner Orange Extension

Model: 99946400023 Pruner Orange Extension -- 4 Foot

Save Part Not Listed?
product name

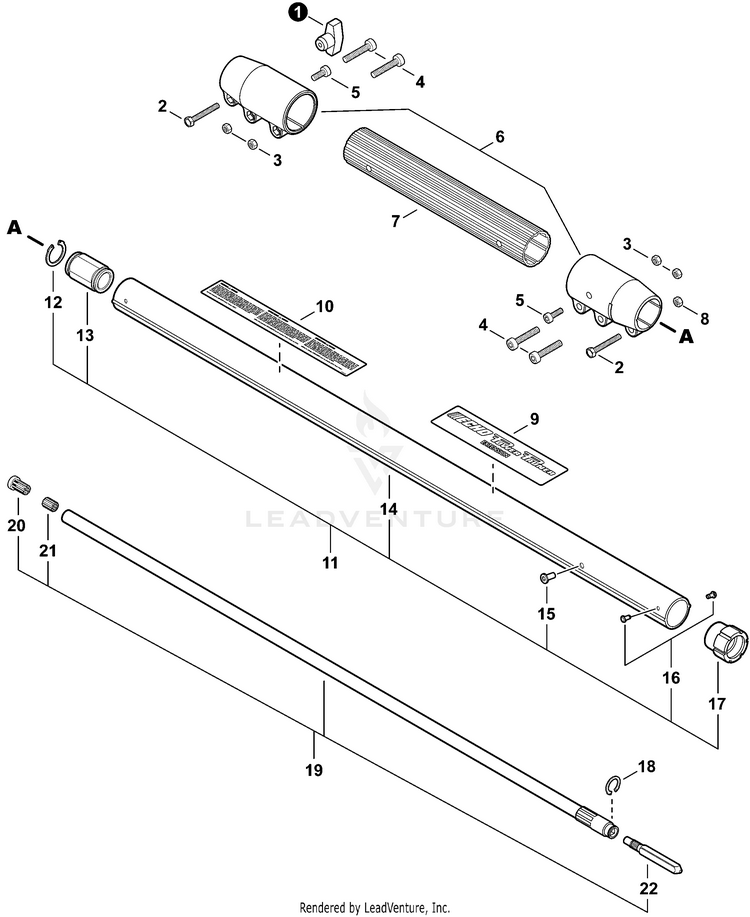

4 Foot Power Pruner Extension

...
...
1
THUMBSCREW ECH-V299000660
...
2
BOLT 6x25 ECH-90010006025
...
3
NUT M5 ECH-90050000005
...
4
BOLT 5x20 ECH-V253000230
...
5
BOLT 5x12 ECH-90010505012
...
6
COUPLING, MAIN PIPE ECH-C510000390
...
7
MAIN PIPE ECH-C500000870
...
8
NUT, HEX M6 ECH-90050000006
...
9
LABEL, PPT EXTENSION ECH-X503015150
...
10
LABEL - CAUTION ECH-89007522761
...
11
MAIN PIPE (PPT EXTENSION) Includes ITEMS 12-17 ECH-C050001411
...
12
RING, RETAINING ECH-61033522460
...
13
GUIDE, SHAFT ECH-C316000010
...
14
MAIN PIPE ECH-C500000370
...
15
RIVET ECH-89001122460
...
16
RIVET ECH-89001122360
...
17
HOLDER ASSY, BEARING ECH-C503000080
...
18
RING, RETAINING ECH-10022922460
...
19
DRIVE SHAFT ASSY Includes ITEMS 20-22 ECH-C504000482
...
20
SOCKET - OUTER ECH-C509000080
...
21
SOCKET - INNER ECH-C509000090
...
22
CONNECTOR, DRIVESHAFT ECH-61002522361
