Echo 99946400020 Power Pruner Orange Extension -- 5 Foot

Model: 99946400020 Pruner Orange Extension -- 5 Foot

Back To Assemblies

Save Part Not Listed?
product name

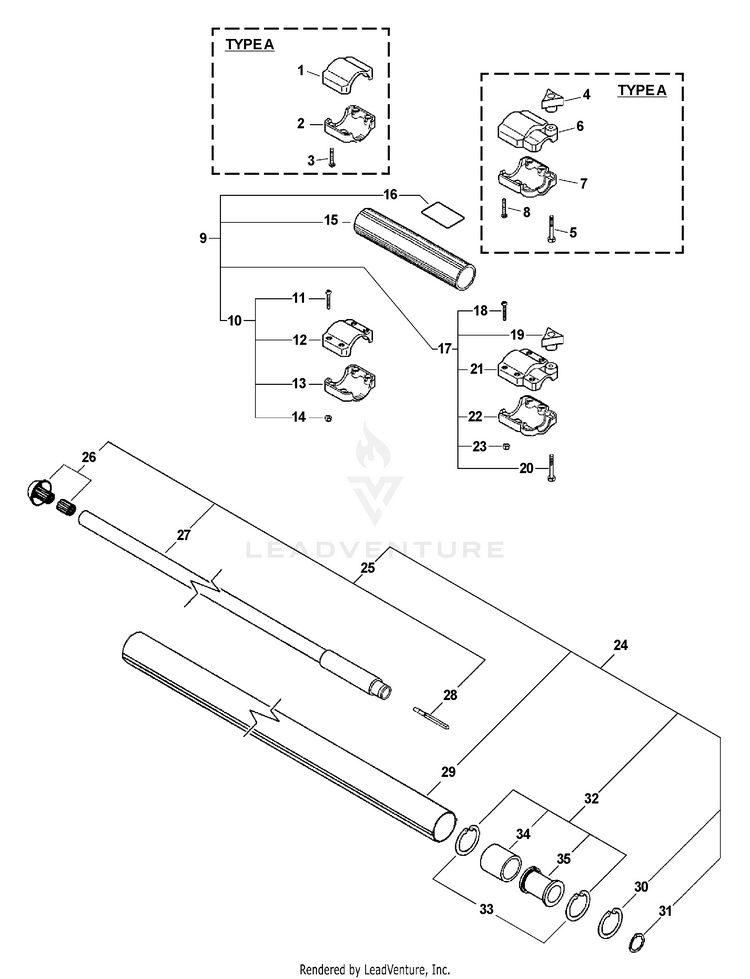

5" Extension

...
...
------------------
CLAMP - UPPER ITEM IS NO LONGER AVAILABLE. USE ITEM 10 ECH---
...
------------------
CLAMP - LOWER ITEM IS NO LONGER AVAILABLE. USE ITEM 10 ECH---
...
3
SCREW, TORX 10-24 UNC 1-1/4 ECH-90005300400
...
4
THUMBSCREW ECH-13040622360
...
5
BOLT 6 ECH-V204000090
...
6
COLLAR, MAIN PIPE - UPPER ITEM IS NO LONGER AVAILABLE. USE ITEM 17 ECH---
...
7
COLLAR, MAIN PIPE - LOWER ITEM IS NO LONGER AVAILABLE. USE ITEM 17 ECH---
...
8
SCREW, TORX 10-24 UNC 1-1/4 ECH-90005300400
...
9
MAIN PIPE ASSY Includes ITEMS 10-23 ECH-60520622460
...
10
FRONT COVER Includes ITEMS 11-14 ECH-61029522560
...
11
SCREW, TORX 10-24 UNC 1-1/4 ECH-90005300400
...
12
COLLAR, MAIN PIPE - UPPER ECH-61029522660
...
13
COLLAR, MAIN PIPE - LOWER ECH-61029522760
...
14
NUT, LOCK 10-24 UNC ECH-90003150100
...
15
PIPE, MAIN ECH-61022222560
...
16
LABEL - CAUTION ECH-89011522260
...
17
CLAMP ASSY KIT, MAIN PIPE INCLUDES ITEMS 18-23 ECH-9001068
...
18
SCREW, TORX 10-24 UNC 1-1/4 ECH-90005300400
...
19
THUMBSCREW ECH-13040622360
...
20
BOLT 6 ECH-V204000090
...
21
COLLAR SET, MAIN PIPE ECH-9001058
...
22
COLLAR SET, MAIN PIPE ECH-9001058
...
23
NUT, LOCK 10-24 UNC ECH-90003150100
...
24
MAIN PIPE ASSY INCLUDES ITEMS 25-35 ECH-61029922160
...
25
DRIVESHAFT ASSY - UPPER INCLUDES ITEMS 26-28 ECH-61000622160
...
26
ADAPTOR, UPPER DRIVESHAFT ECH-61029822360
...
27
DRIVESHAFT ECH-61000622260
...
28
CONNECTOR, DRIVESHAFT ECH-61002522361
...
29
MAIN PIPE ASSY ECH-61029922060
...
30
RING, SNAP ECH-61033522360
...
31
RING, RETAINING ECH-10022922460
...
32
GUIDE ASSY, DRIVESHAFT INCLUDES ITEMS 33-35 ECH-43330722361
...
33
RING, SNAP ECH-61033522360
...
34
PAD, FOAM ECH-10429322360
...
35
GUIDE, SHAFT ECH-C316000010
