Echo 99944200510 Cultivator Attachment

Model: 99944200510 Cultivator Attachment

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

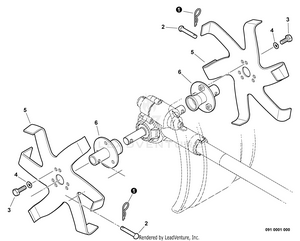

Cultivating Blades

...
...
1
PIN, COTTER 5 ECH-60561211050
...
2
PIN, CLEVIS ECH-60561111050
...
3
BOLT 6x10 ECH-90010006010
...
4
WASHER, SPRING 6 ECH-90060500006
...
5
TINE ECH-69001011050
...
6
HUB, TINE ECH-60561011050

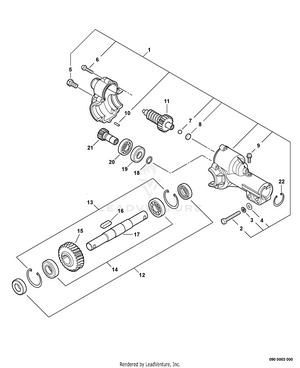

Gear Case

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2-10 ECH-60540112050
...
2
BOLT 6x25 ECH-90010006025
...
3
WASHER, SPRING 6 ECH-90060500006
...
4
WASHER 6.5x11.5x0.8 ECH-90060000006
...
5
BOLT 8x8 SP ECH-90010008008
...
6
SCREW 4x25 ECH-90024204025
...
7
BALL, STEEL ECH-90073101004
...
8
WASHER 3 ECH-60532411050
...
9
SCREW 5x14 ECH-90024205014
...
10
PIN, DOWEL ECH-60543011050
...
11
GEAR ECH-60530511050
...
12
SEAL, OIL 17 ECH-60541611050
...
13
E-RING 30 ECH-90070200030
...
14
BEARING, BALL 6903 ECH-90085506903
...
15
WHEEL, WORM ECH-60531511050
...
16
KEY ECH-90032504015
...
17
SHAFT, WORM WHEEL ECH-60531425560
...
18
RING, SNAP 9 ECH-90070600009
...
19
BEARING, BALL 609Z ECH-90080300609
...
20
BEARING, BALL 609 ECH-90080000609
...
21
GEAR ECH-60531011050
...
22
RING, SNAP 25 ECH-90070200025

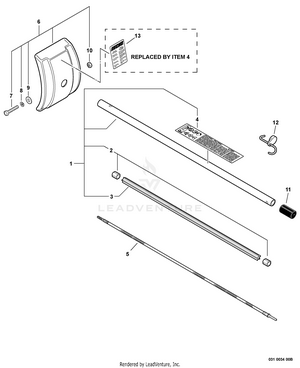

Main Pipe Assembly, Shield

...
...
1
MAIN PIPE ASSY INCLUDES ITEMS 2-3 ECH-C050000170
...
2
STOPPER ECH-61024644730
...
3
LINER - FLEXIBLE ECH-C507000240
...
4
LABEL - CAUTION ECH-X505002540
...
5
DRIVESHAFT - FLEXIBLE ECH-C506000760
...
6
DEBRIS SHIELD KIT INCLUDES ITEMS 7-10 ECH-69400012050
...
7
BOLT 6x20 ECH-90010006020
...
8
WASHER, SPRING 6 ECH-90060500006
...
9
WASHER 6.5x11.5x0.8 ECH-90060000006
...
10
NUT, HEX M6 ECH-90050000006
...
11
CAP, MAIN PIPE ECH-35122301130
...
12
HANGER, ATTACHMENT Includes 4 Per Package ECH-99944200631
...
13
LABEL - CAUTION REPLACED BY ITEM 4. USE ITEM 4 ECH---
...
...
...
