Echo 99944100002 Tube Mount Throttle Kit

Model: 99944100002 Tube Mount Throttle Kit

Save Part Not Listed?
product name

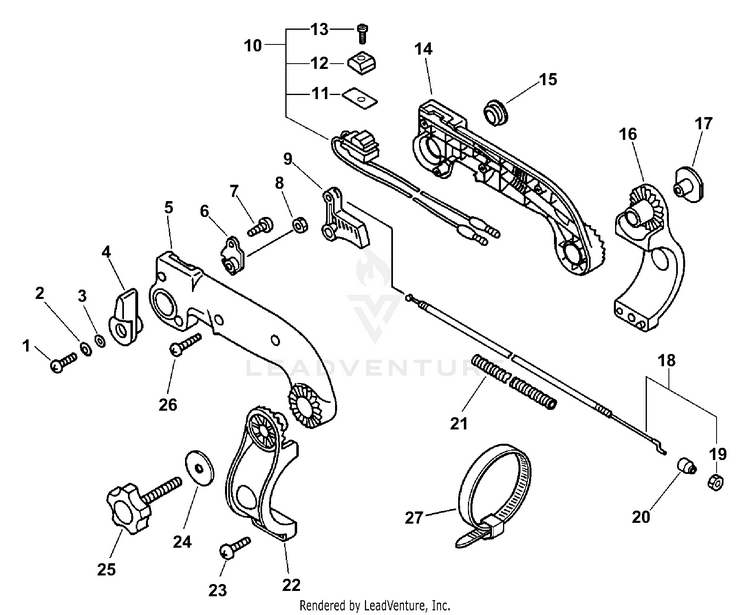

Tube Mount Throttle Kit

...
...
1
SCREW 6x20 ECH-90023506020
...
2
WASHER, SPRING 6 ECH-90060500006
...
3
WASHER 6.5x13x1 ECH-90060300006
...
4
CONTROL, THROTTLE ECH-17805407560
...
5
CONTROL HANDLE - LEFT ECH-35131507560
...
6
BRACKET, THROTTLE ECH-17812307561
...
7
SCREW 4x10 ECH-90024504010
...
8
NUT, HEX M6 ECH-90050000006
...
9
TRIGGER, THROTTLE ECH-17801007561
...
10
SWITCH, ON-OFF Includes ITEMS 11-13 ECH-16340008262
...
11
LABEL - STOP ECH-89015712330
...
12
SWITCH, ON-OFF ECH-A440000382
...
13
SCREW 3x10 ECH-90022003010
...
14
CONTROL HANDLE - RIGHT ECH-35131107560
...
15
PLUG ECH-35114607560
...
16
BRACKET KIT, HANDLE ECH-P021013321
...
17
NUT ECH-17802108260
...
18
CABLE, THROTTLE Includes ITEM 19 ECH-17800108360
...
19
NUT, HEX M6 ECH-90050000006
...
20
CAP, DUST ECH-17808208260
...
21
TUBE, FLEXIBLE 7x790 ECH-V475000000
...
22
BRACKET KIT, HANDLE ECH-P021013321
...
23
SCREW, TAPPING 5x20 ECH-90025305020
...
24
WASHER ECH-17851607560
...
25
KNOB, SCREW ECH-V299000630
...
26
SCREW 4x22 ECH-90025604022
...
27
STRAP, CABLE - LARGE ECH-17812109860
