Echo 479 S/N: 47900001 47999999 Trimmer/Bruhcutter

Model: 479 S/N: 47900001 47999999

Save Part Not Listed?
product name

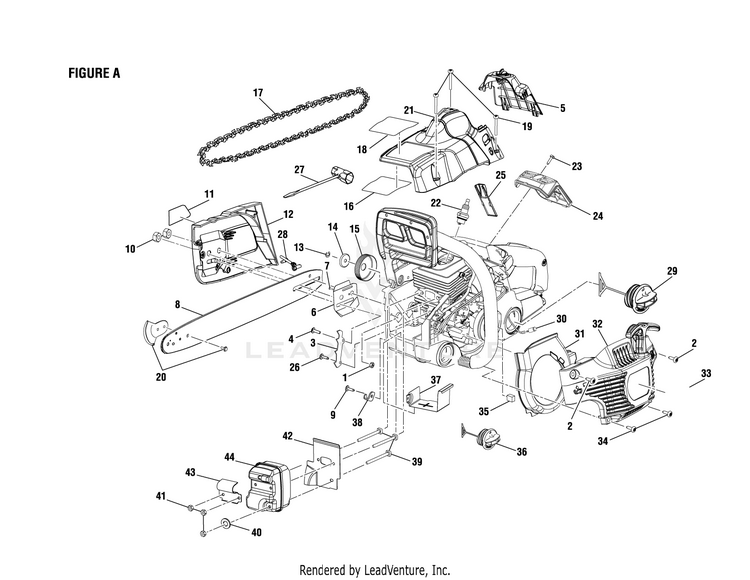

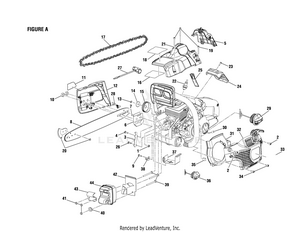

FIGURE A

...
...
1
NUT, LOCK ECH-YH450000330
...
2
SCREW ECH-YH415000500
...
3
SPIKE, BAR ECH-YH470000690
...
4
SCREW ECH-YH415000450
...
5
COVER, FILTER ECH-YH479001140
...
6
PLATE, INNER GUIDE ECH-YH479001320
...
7
SCREW ECH-YH415000410
...
8
20 in. Guide Bar ECH-S20A0CD3378
...
9
SCREW ECH-YH415000400
...
10
NUT, BAR (5/16-18) ECH-YH449000000
...
11
LABEL, LOGO ECH-YH653000560
...
12
ASSY., CHAIN COVER ECH-YH470000500
...
13
E-RING ECH-YH452000330
...
14
HOSE, FUEL (RETURN) ECH-YH467000350
...
15
ASSY., SPROKET DRUM ECH-YH464000010
...
16
SHIELD, HEAT ECH-YH479001360
...
17
Chain (.325 x 78 links, 20 in.) ECH-S20BPX78
...
18
LABEL, WARNING ECH-YH653000590
...
19
SCREW ECH-YH415000540
...
20
KIT, SAFETY TIP & SCREW ECH-YH466000330
...
21
COVER, ENGINE ECH-YH479001150
...
22
PLUG, SPARK ECH-YH461000210
...
23
SCREW ECH-YH415000390
...
24
FILTER, AIR ECH-YH465000150
...
25
DIVIDER, CYLINDER HOUSING ECH-YH479001250
...
26
SCREW ECH-YH415000420
...
27
WRENCH, COMBINATION ECH-YH477000000
...
28
TENSIONER, CHAIN ECH-YH470000520
...
29
ASSY., FUEL CAP ECH-YH468000800
...
30
FILTER FUEL ECH-YH465000140
...
31
BAFFLE, FAN HOUSING ECH-YH479001240
...
32
ASSY., STARTER COVER ECH-YH463000150
...
33
LABEL, LOGO ECH-YH653000570
...
34
SCREW ECH-YH415000010
...
35
PREFILTER ECH-YH465000180
...
36
ASSY., OIL CAP ECH-YH468000810
...
37
SHIELD, HEAT ECH-YH479001350
...
38
CATCHER, CHAIN ECH-YH470000680
...
39
BOLT ECH-YH435000420
...
40
WASHER, RETAINING ECH-YH451000150
...
41
NUT, LOCK ECH-YH450000300
...
42
GASKET, MUFFLER ECH-YH468001070
...
43
DEFLECTOR, MUFFLER ECH-YH468001010
...
44
ASSY., MUFFLER ECH-YH460000150
...
xx
KIT, GASKET & DIAPHRAGM ECH-YH459000200
...
xx
KIT, CARBURETOR MIXTURE SCREW ECH-YH459000220
...
xx
KIT, CARBURETOR IDLE SCREW ECH-YH459000240
...
xx
KIT, CYLINDER W/GASKET ECH-YH458000590
...
xx
KIT, CRANKSHAFT SEALS ASSY. ECH-YH458000600
...
xx
Operator’s Manual (961087053) ECH-99922205356

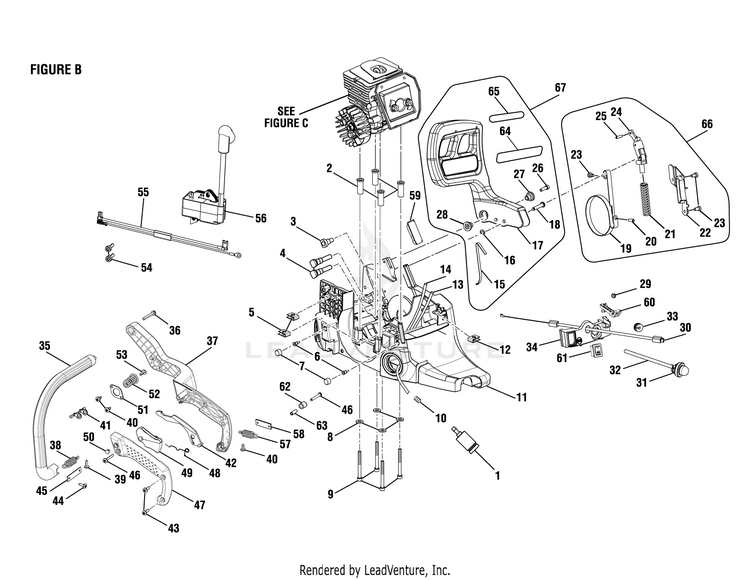

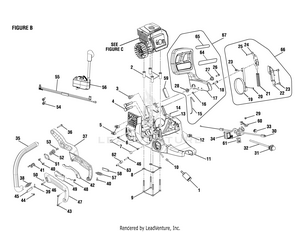

FIGURE B

...
...
1
FILTER FUEL ECH-YH465000140
...
2
INSERT, SPACER ECH-YH475000050
...
3
GROMMET, OIL OUTLET ECH-YH468000940
...
4
BOLT, GUIDE BAR ECH-YH435000430
...
5
NUT, SPEED ECH-YH450000280
...
6
VENT, TANK ECH-YH470000650
...
7
ELEMENT ECH-YH465000170
...
8
WASHER ECH-YH451000210
...
9
SCREW ECH-YH415000430
...
10
CLAMP, HOSE ECH-YH452000380
...
11
CHASSIS ECH-YH479001080
...
12
NUT, SPEED ECH-YH450000290
...
13
HOSE, FUEL ECH-YH467000340
...
14
HOSE, FUEL (RETURN) ECH-YH467000350
...
15
SPRING, HAND GUARD ECH-YH476000060
...
16
E-RING ECH-671075001
...
17
LEVER, CHAIN BRAKE ECH-YH470000490
...
18
PIN, HAND GUARD ACTUATING ECH-YH471000030
...
19
BAND, BRAKE ECH-YH470000700
...
20
PIN, SPRING ECH-YH471000050
...
21
SPRING, COMPRESSION ECH-YH476000130
...
22
COVER, CHAIN BRAKE ECH-YH479001170
...
23
SCREW ECH-YH415000520
...
24
ASSY., CHAIN BREAK LINK ECH-YH470000440
...
25
PIN, SPRING ECH-YH471000060
...
26
SCREW ECH-YH415000530
...
27
PIVOT, RIGHT HAND ECH-YH468001020
...
28
PIVOT, LEFT HAND ECH-YH468001030
...
29
PIN, HAIR ECH-YH471000040
...
30
CABLE, THROTTLE ECH-YH301000090
...
31
BULB, PRIMER ECH-YH459000170
...
32
HOSE, FUEL (PRIMER) ECH-YH467000420
...
33
GROMMET, SPLIT ECH-YH468000950
...
34
PANEL, CONTROL ECH-YH479001210
...
35
HANDLE, FRONT ECH-YH466000240
...
36
SCREW ECH-YH415000490
...
37
HANDLE, REAR ECH-YH466000230
...
38
SPRING ECH-YH476000080
...
39
SCREW ECH-YH415000500
...
40
SCREW ECH-YH415000400
...
41
LIMITER, UPPER ISOLATOR SPRING ECH-YH468000820
...
42
LOCKOUT, THROTTLE ECH-YH470000900
...
43
SCREW ECH-YH415000470
...
44
SCREW ECH-YH415000620
...
45
RETAINER, SPRING ECH-YH452000240
...
46
SCREW ECH-YH415000510
...
47
COVER, HANDLE ECH-YH479001180
...
48
SPRING, TORSION ECH-YH476000120
...
49
TRIGGER ECH-YH470000600
...
50
PLUG ECH-YH479001230
...
51
PLATE, ISOLATOR ECH-YH468001000
...
52
SPRING, ISOLATOR ECH-YH476000070
...
53
SCREW ECH-YH415000480
...
54
SCREW ECH-YH415000550
...
55
ASSY., WIRING HARNESS ECH-YH601000080
...
56
MODULE, IGNITION ECH-YH461000150
...
57
SPRING ECH-YH476000090
...
58
RETAINER, SPRING ECH-YH452000250
...
59
BAFFLE ECH-YH479001330
...
60
LEVER, CHOKE ECH-YH470000480
...
61
SWITCH, STOP ECH-YH321000120
...
62
BUSHING ECH-YH468000900
...
63
SPACER, SPRING SCREW ECH-YH475000060
...
64
LABEL, WARNING ICON ECH-YH653000580
...
65
LABEL, PULL TO RELEASE BRAKE ECH-YH653000540
...
66
KIT, BRAKE BAND ECH-YH470000560
...
67
ASSY., CHAIN BRAKE LEVER ECH-YH470000550

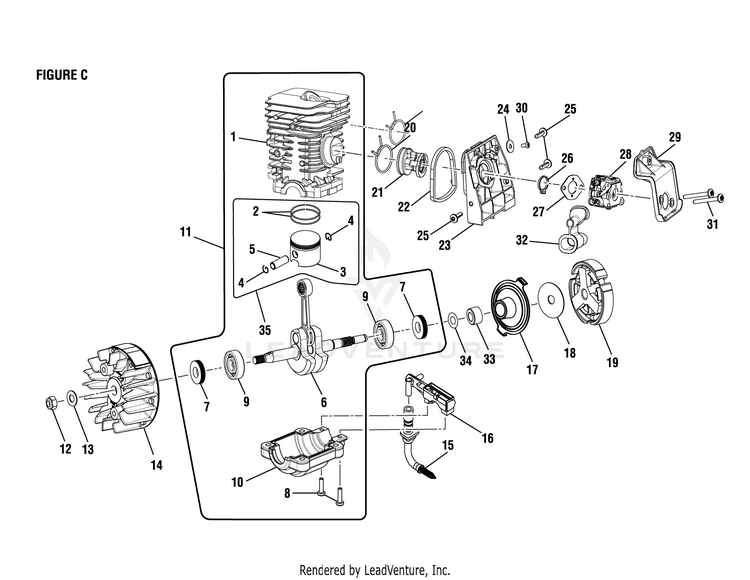

FIGURE C

...
...
1
CYLINDER ECH-YH458000700
...
2
RING, PISTON ECH-YH458000750
...
3
PISTON ECH-YH458000720
...
4
RING, RETAINING ECH-YH452000350
...
5
PIN, PISTON ECH-YH458000680
...
6
ASSY., CRANKSHAFT ECH-YH458000670
...
7
SEAL, SHAFT ECH-YH468000930
...
8
SCREW ECH-YH415000460
...
9
BEARING, CRANKSHAFT ECH-YH453000050
...
10
CRANKCASE ECH-YH458000730
...
11
ASSY., SHORT BLOCK ECH-YH458000510
...
12
NUT, LOCK ECH-YH450000360
...
13
WASHER ECH-YH451000140
...
14
ASSY., FLYWHEEL ECH-YH461000190
...
15
ASSY., OIL INTAKE TUBE ECH-YH467000330
...
16
ASSY., OIL PUMP ECH-YH462000010
...
17
DRIVER, OIL PUMP ECH-YH462000020
...
18
WASHER, THRUST ECH-YH451000190
...
19
ASSY., CLUTCH ECH-YH480000050
...
20
CLAMP, WIRE ECH-YH452000340
...
21
BOOT, INTAKE ECH-YH468000970
...
22
SEAL, CARBURETOR ADAPTOR ECH-YH468000850
...
23
ADAPTOR, CARBURETOR ECH-YH479001130
...
24
WASHER ECH-YH451000200
...
25
SCREW ECH-YH415000470
...
26
PLATE, CARBURETOR ECH-YH459000310
...
27
GASKET, CARBURETOR ECH-YH468001080
...
28
ASSY., CARBURETOR ECH-YH459000160
...
29
BASE, AIR FILTER ECH-YH479001220
...
30
SCREW ECH-YH415000520
...
31
SCREW ECH-YH415000610
...
32
GROMMET ECH-YH468000960
...
33
BEARING, OIL PUMP DRIVER ECH-YH453000070
...
34
WASHER ECH-YH451000000
...
35
KIT, PISTON ECH-YH458000580
