EV3850x4C Murray - Edger (2004)

Model: EV3850x4C

Back To Assemblies

Save Part Not Listed?
product name

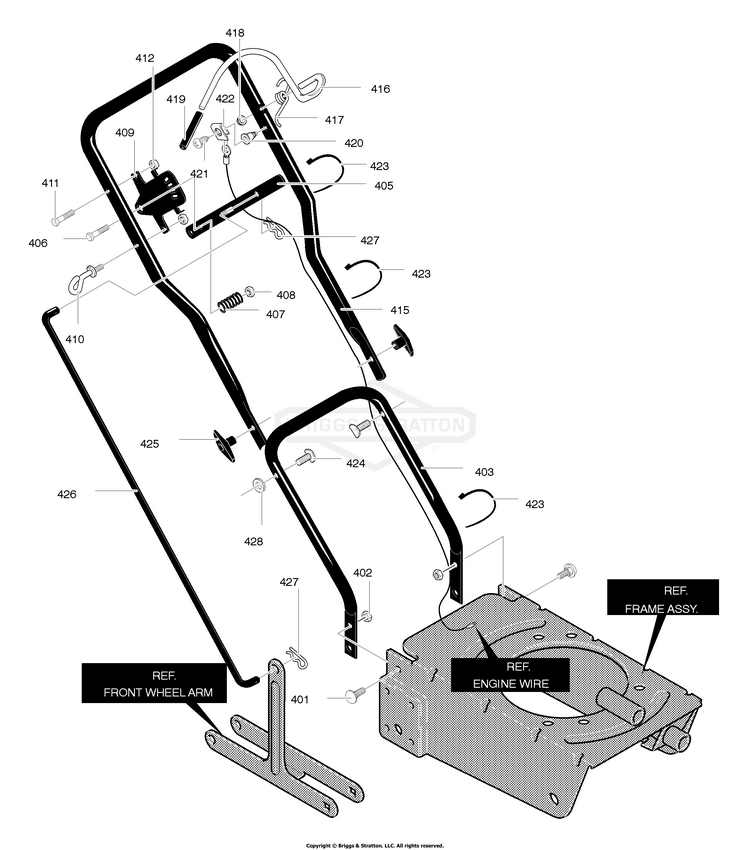

Handle Assembly

...
...
401
Bolt, 5/16-18x.75 BS-711558
...
402
NUT, 5/16-18, GR5 BS-703409
...
403
Lower Handle BS-740128E701MA
...
405
Handle, Depth BS-740130E701MA
...
406
Screw BS-180081MA
...
407
Spring, Compression BS-25644MA
...
408
NUT BS-703164
...
409
Brkt, Adj. Quadrant BS-740143E701
...
410
Rope Guide BS-672510MA
...
411
Screw, 1/4-20x1.25 BS-001X94
...
412
NUT, 1/4-20 BS-703251
...
415
Upper Handle BS-740142E701
...
416
Bail, Operator Control BS-337744
...
417
Torsion Spring BS-337775
...
418
Nut, Push On BS-314276MA
...
419
Grip, Operator Control BS-339489
...
420
Insulator, Oper Control BS-339229
...
421
Screw, #6x.50 BS-57796
...
422
Clip, Grounding BS-340162MA
...
423
TIE,STRAP-REMOVABLE BS-071372MA
...
424
Bolt, 5/16-18x.75 BS-315288MA
...
425
Wing Knob 5/16-18 BS-71294
...
426
Rod, Control BS-740144E701MA
...
427
Hair Pin BS-36368MA
...
428
Washer, Exlk. BS-138485MA
...
--
Decal, Engine Control BS-402862
...
--
Decal, Blade Height BS-402859
...
--
Decal, Danger Information BS-48X1195MA
