EV3850x4C Murray - Edger (2004)

Model: EV3850x4C

Back To Assemblies

Save Part Not Listed?
product name

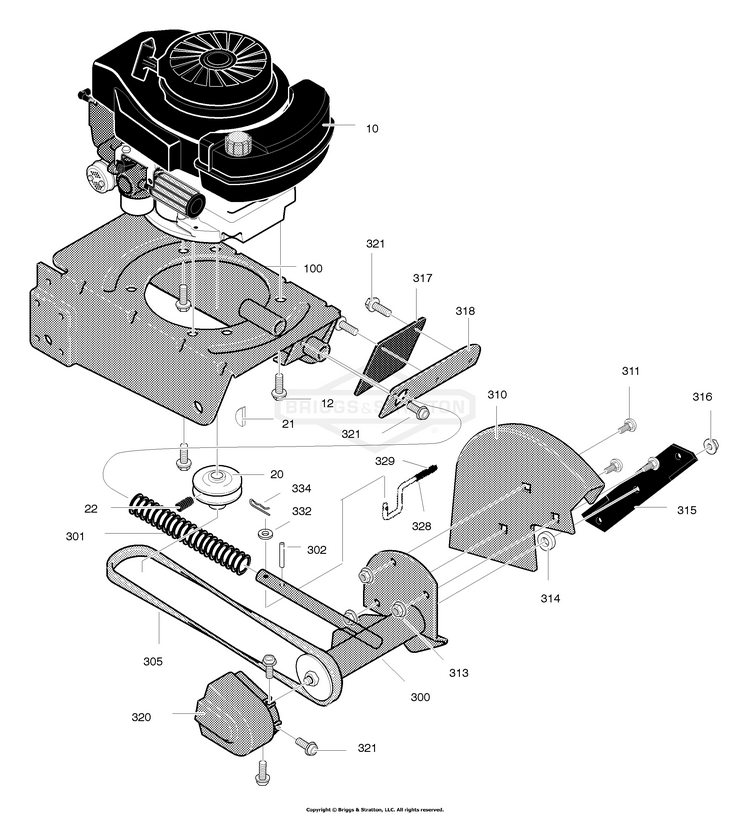

Engine Mount

...
...
12
Screw BS-0025X6MA
...
20
Pulley, V3L BS-52052MA
...
21
Key, Hi Pro #505 BS-338490MA
...
22
Screw, Set BS-120580
...
100
Frame, Edger BS-740124E245
...
300
QUILL ASSY, VERT E/T BS-740096E701MA
...
301
Spring BS-51603MA
...
302
Spring Pin BS-412281
...
305
Belt, V4L BS-32668MA
...
310
Blade Guard BS-331076E245
...
311
BOLT BS-703159
...
313
NUT, HEX FLNG,5/16-18 BS-704067
...
314
Flat washer BS-22265MA
...
315
Blade, Edger BS-740297MA
...
316
Nut, 1/2-20 BS-46023MA
...
317
Deflector, Rubber BS-338582
...
318
Plate, Rubber Flap BS-337792E245
...
320
Belt Guard BS-336631MA
...
328
Lever, Blade BS-740004
...
329
Grip, Blade Lever BS-091079MA
...
321
SCREW-#10X.5 B W/WAS BS-26X245MA
...
332
Washer BS-783641
...
334
Pin, Hair BS-36368MA
...
--
Decal, Blade Control BS-333874
...
--
Decal, Position Bevel/Edge BS-710421
...
--
Instruction Manual BS-F-041103L
