EV3850x4A Murray - Edger (2001)

Model: EV3850x4A

Save
 Part Not Listed?Part Not Listed?
product name

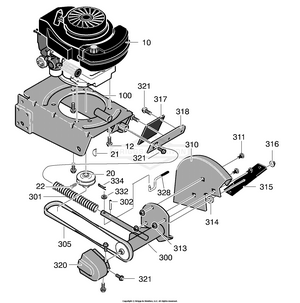

Engine & Blade Assembly

...
...
12
Screw BS-47792MA
...
20
Pulley, V3L BS-52052MA
...
21
Key, Hi Pro #505 BS-338490MA
...
22
Screw, Set BS-102580
...
100
Frame, Edger BS-740124-860
...
300
Quill Assembly BS-740096
...
301
Spring BS-51603MA
...
302
Spring Pin BS-412281
...
305
Belt, V4L BS-32668MA
...
310
Blade Guard BS-331076-860
...
311
Bolt, Carriage BS-57072
...
313
NUT, HEX FLNG,5/16-18 BS-704067
...
314
Flat washer BS-22265MA
...
315
Blade, Edger BS-740297MA
...
316
Nut, 1/2-20 BS-46023MA
...
317
Deflector, Rubber BS-338582
...
318
Plate, Rubber Flap BS-337792-860
...
320
Belt Guard BS-740098MA
...
328
Lever, Blade BS-740086
...
321
Screw, 10-16x.50 BS-710271
...
332
Washer BS-783641
...
334
Pin, Hair BS-36368MA
...
--
Instruction Manual BS-F-011100M

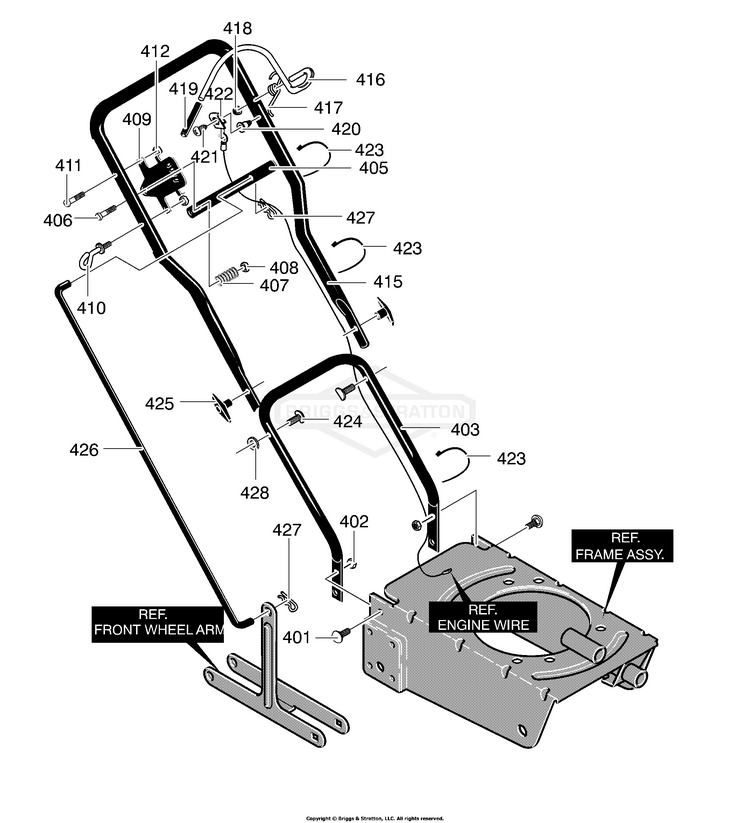

Handle Assembly

...
...
401
Bolt, 5/16-18x.75 BS-711558
...
402
NUT, 5/16-18, GR5 BS-703409
...
403
Lower Handle BS-740128-853
...
405
Handle, Depth BS-740130-853
...
406
Screw BS-180081MA
...
407
Spring, Compression BS-25644MA
...
408
Nut, 5/16-18 BS-1498
...
409
Brkt, Adj. Quadrant BS-740143-853
...
410
Rope Guide BS-672510MA
...
411
CAPSCREW, 1/4-20X1.5 BS-703234
...
412
NUT, 1/4-20 BS-703251
...
415
Upper Handle BS-740142-853
...
416
Bail, Operator Control BS-337744
...
417
Torsion Spring BS-337775
...
418
Nut, Push On BS-314276MA
...
419
Cap, Operator Control BS-339489
...
420
Insulator, Oper Control BS-339229
...
421
Screw, #6x.50 BS-57796
...
422
Clip, Grounding BS-340162MA
...
423
Cable Tie BS-712267
...
424
Bolt, 5/16-18x.75 BS-315288MA
...
425
WINGKNOB, 5/16-18 BS-703065
...
426
Rod, Control BS-740144-853
...
427
Hair Pin BS-36368MA
...
428
Washer, Exlk. BS-138485MA

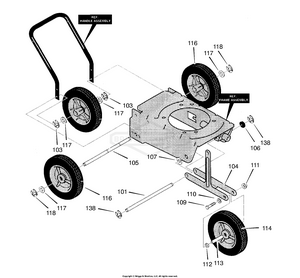

Wheel Assembly

...
...
101
Rod, Axle Front BS-740091
...
103
E-Ring BS-020864
...
104
Bracket, Curp Hop BS-740126-860
...
105
Rod, Rear Axle BS-740095
...
106
Washer, Flat BS-417098MA
...
107
WASHER,SPRING .52X.99 BS-0020X3MA
...
108
Tire & Rim BS-339079
...
109
Screw BS-180091
...
110
Washer, Flat BS-120393
...
111
NUT, HEX FLNG,5/16-18 BS-704067
...
112
Washer, Nylon BS-711008
...
113
Spacer, Sleeve BS-740046
...
114
Tire & Rim BS-339079
...
116
Tire & Rim BS-339079
...
117
Washer, Flat BS-017X91MA
...
118
E-Ring BS-020864
...
138
E-Ring BS-020864
...
...
...
