EV3550x4NA Murray - Edger (2006)

Model: EV3550x4NA

Save Part Not Listed?
product name

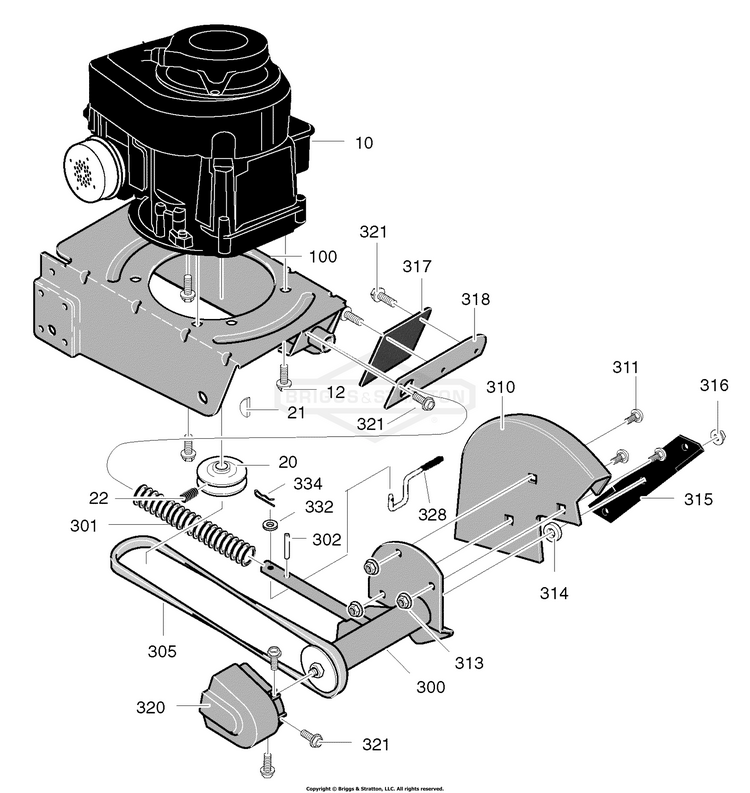

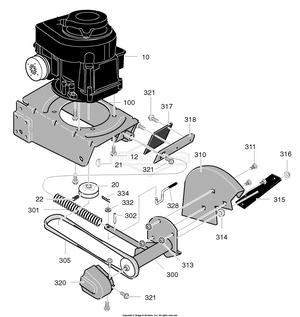

Edger Blade Assembly

...
...
12
Screw BS-0025X6MA
...
20
Pulley, V3L BS-52052MA
...
21
Key, Hi Pro #505 BS-338490MA
...
22
Screw, Set BS-120580MA
...
100
Frame, Edger BS-740124E701MA
...
300
QUILL ASSY, VERT E/T BS-740096E701MA
...
301
Spring BS-51603MA
...
302
Spring Pin BS-032X72MA
...
305
Belt, V4L BS-32668MA
...
310
Blade Guard BS-331076E701MA
...
311
BOLT BS-703159
...
313
NUT, HEX FLNG,5/16-18 BS-704067
...
314
Flat washer BS-22265MA
...
315
Blade, Edger BS-740297MA
...
316
NUT, 1/2-20 BS-46023MA
...
317
Deflector, Rubber BS-338582MA
...
318
Plate, Rubber Flap BS-337792E701MA
...
320
Belt Guard BS-336631MA
...
328
Lever, Blade BS-740086MA
...
321
SCREW-#10X.5 B W/WAS BS-26X245MA
...
332
Washer BS-783641MA
...
334
Pin, Hair BS-36368MA
...
-
Decal, Caution Rotating Blade BS-333874MA
...
-
Instruction Manual BS-276342

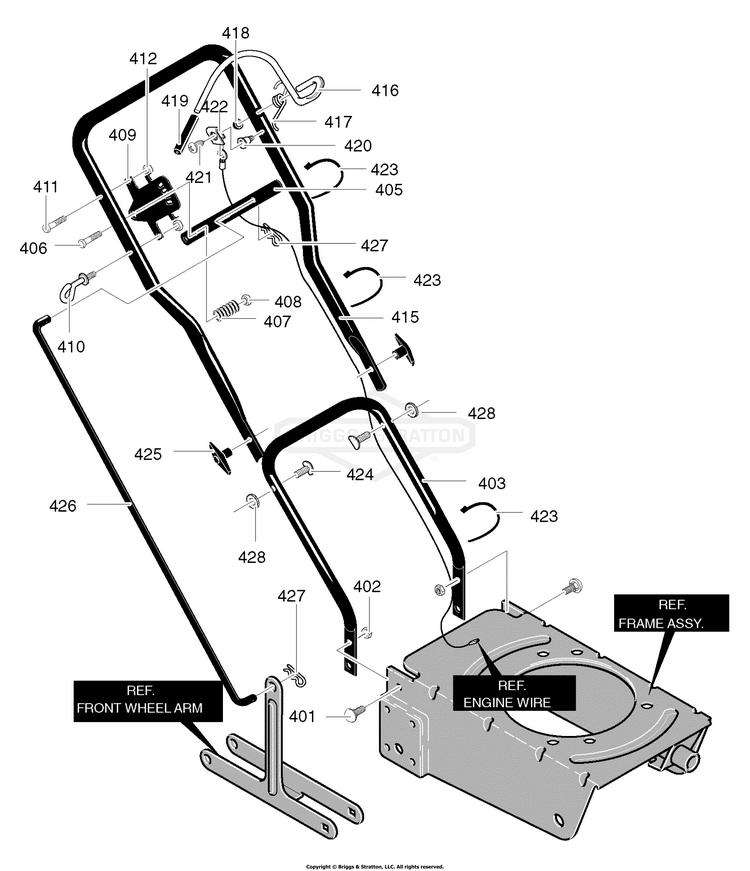

Handle Assembly

...
...
401
BOLT, 5/16-18X.75 BS-711558MA
...
402
NUT, 5/16-18, GR5 BS-703409
...
403
Lower Handle BS-740128E701MA
...
405
Handle, Depth BS-740130E701MA
...
406
Screw BS-180081MA
...
407
Spring, Compression BS-25644MA
...
408
NUT BS-703164
...
409
Brkt, Adj. Quadrant BS-740143E701MA
...
410
Rope Guide BS-672510MA
...
411
BOLT, 1/4-20 BS-5025010X12SM
...
412
NUT, 1/4-20 BS-703251
...
415
Upper Handle BS-740142E701MA
...
416
Bail, Operator Control BS-337744MA
...
417
Torsion Spring BS-337775MA
...
418
Nut, Push On BS-314276MA
...
419
Cap, Operator Control BS-339489MA
...
420
Insulator, Oper Control BS-339229MA
...
421
Screw, #6x.50 BS-57796MA
...
422
Clip, Grounding BS-340162MA
...
423
TIE,STRAP-REMOVABLE BS-071372MA
...
424
BOLT, 5/16-18X.75 BS-315288MA
...
425
Wing Knob 5/16-18 BS-071495MA
...
426
Rod, Control BS-740144E701MA
...
427
Hair Pin BS-36368MA
...
428
Washer BS-138485MA

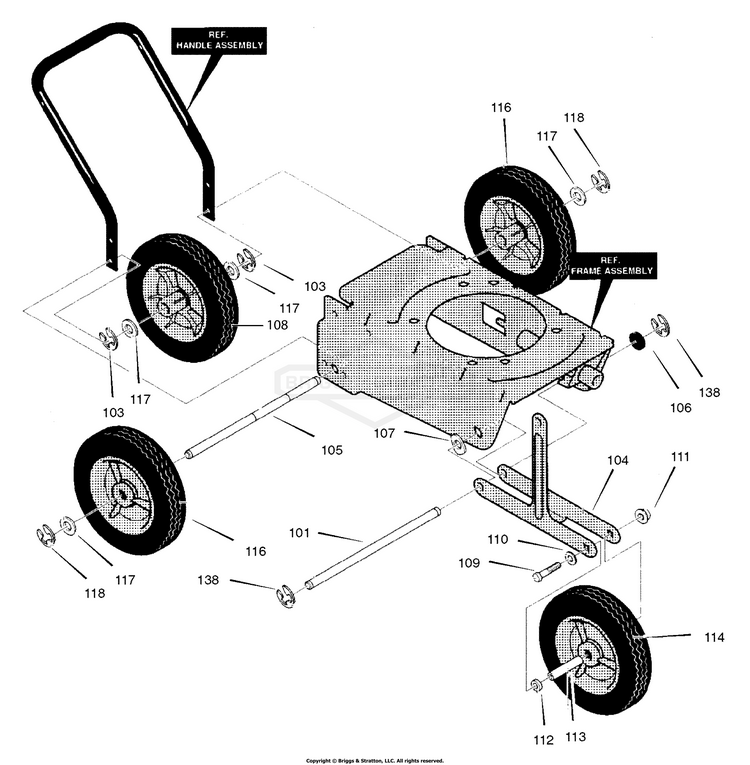

Wheel Assembly

...
...
101
Rod, Axle Front BS-740091MA
...
103
E-Ring BS-011X16MA
...
104
ARM, FRT WHL TOP ADJ BS-740126E701MA
...
105
Rod, Rear Axle BS-740095MA
...
106
Washer, Flat BS-417098MA
...
107
WASHER,SPRING .52X.99 BS-0020X3MA
...
108
Tire & Rim BS-336546MA
...
109
Screw BS-180091MA
...
110
Washer, Flat BS-120393MA
...
111
NUT, HEX FLNG,5/16-18 BS-704067
...
112
Washer, Nylon BS-711008MA
...
113
Spacer, Sleeve BS-740046MA
...
114
Tire & Rim BS-336546MA
...
116
Tire & Rim BS-336546MA
...
117
Washer, Flat BS-017X91MA
...
118
E-Ring BS-011X16MA
...
138
E-Ring BS-011X16MA
