ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Back To Assemblies

Save Part Not Listed?
product name

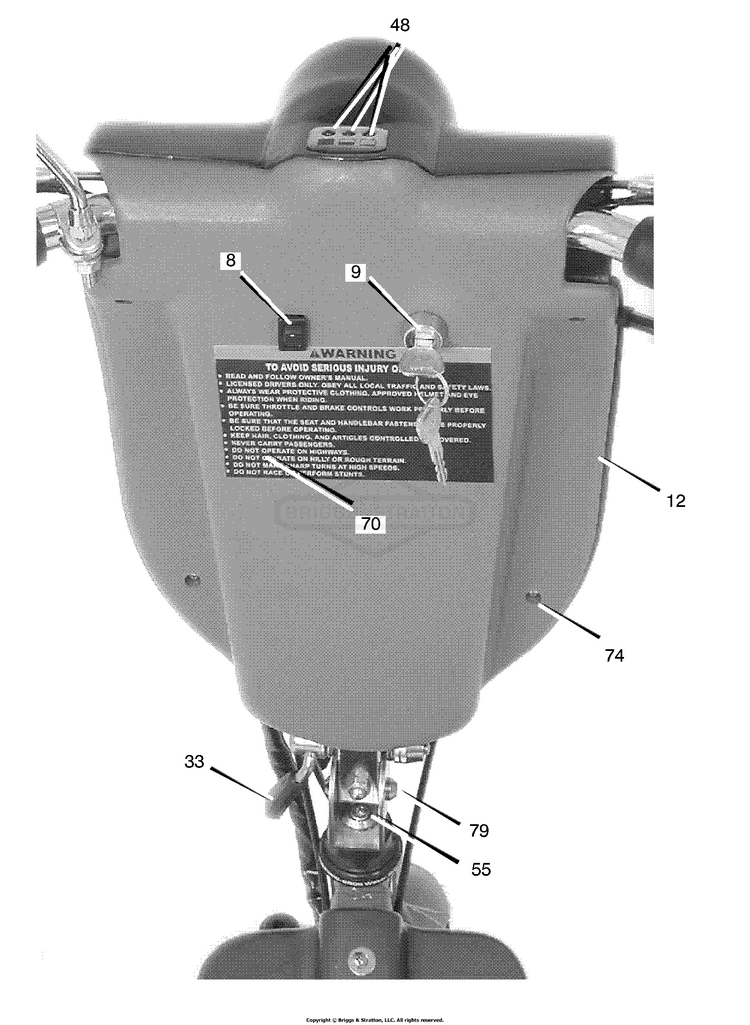

Switches & Circuit Board

...
...
8
Switch, Headlight BS-7201012
...
9
Switch, Ignition w/Key BS-7201013
...
12
Cover, Back Handlebar BS-7201016
...
33
Lever Assembly, Quick Release BS-7201041
...
--
Spring, Compression-Front Quick Release Lever (inside base of handlebar) BS-7201079
...
48
Circuit Board, Battery Status Indicator Lights BS-7201060
...
--
Decal, Battery Status BS-7201124
...
--
Screw (2 required) BS-7201088
...
55
Bolt Set, Expander (Incld's Bolt, Capped Washer & Wedge) BS-7201068
...
70
Label, Warning BS-7201085
...
74
Screw (4 required) BS-7201089
...
79
Screw, Pivot BS-7201094
