ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Save Part Not Listed?

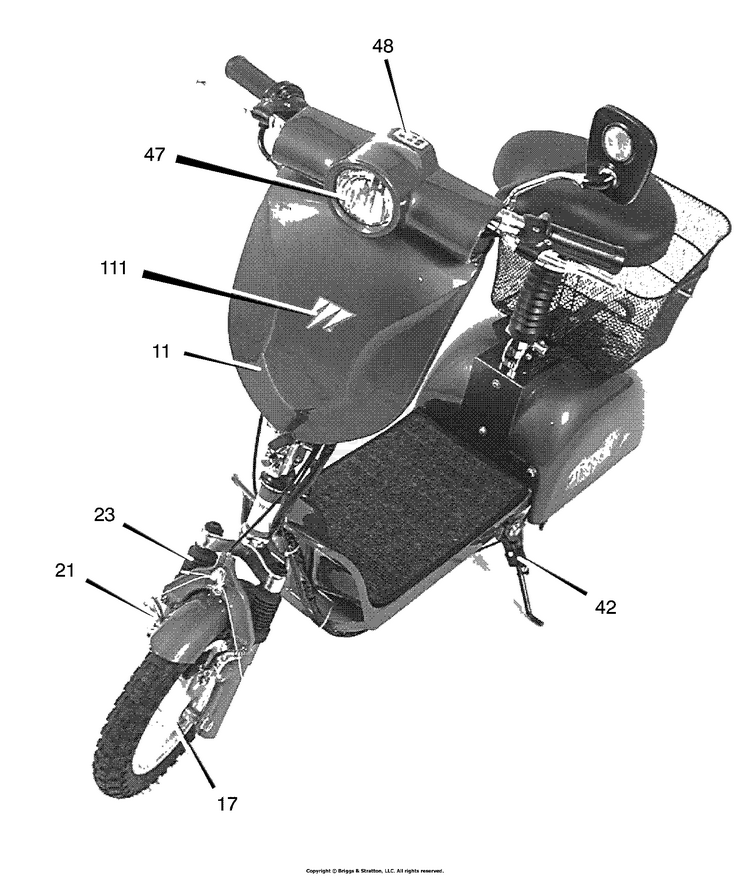

Headlight & Front Wheel

Cover, Front Handlebar (with battery indicater decal (PN 7201124) BS-7201015

Wheel & Axle Assembly - Front (Incl'ds spacers and axle nuts) BS-7201022

Spacer, Frt. Wheel (2 required) BS-7201133

Washer, Safety (2 required) BS-7201105

Washer (2 required) BS-7201104

Nut, Axle (2 required) BS-046750

Tire (Only) BS-7201025

Tube, Front (Only) BS-7201136

Fender, Front (RED) BS-7201026

Screw (1 required) BS-7201123

Washer, Spring (1 required) BS-7201103

Washer (1 required) BS-7201102

Fork, Suspension (Incl'ds brake mount bracket) BS-7201029

Kickstand Ass'y-with Spring BS-7201051

Bolt, Hex (1 required) BS-7201122

Washer, Spring (1 required) BS-7201099

Washer (3 required) BS-7201098

Headlight Assembly (12V) (Incl'ds bulb and mounting hdw.) BS-7201059

Bulb, Headlight BS-7201076

Screw (1 required) BS-7201120

Washer, Spring (1 required) BS-7201095

Nut (1 required) BS-7201091

Circuit Board, Battery Indicator BS-7201060

Decal, Battery Status BS-7201124

Screw (2 required) BS-7201088

111

Decal, Murray Logo BS-48X658
