ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Back To Assemblies

Save Part Not Listed?
product name

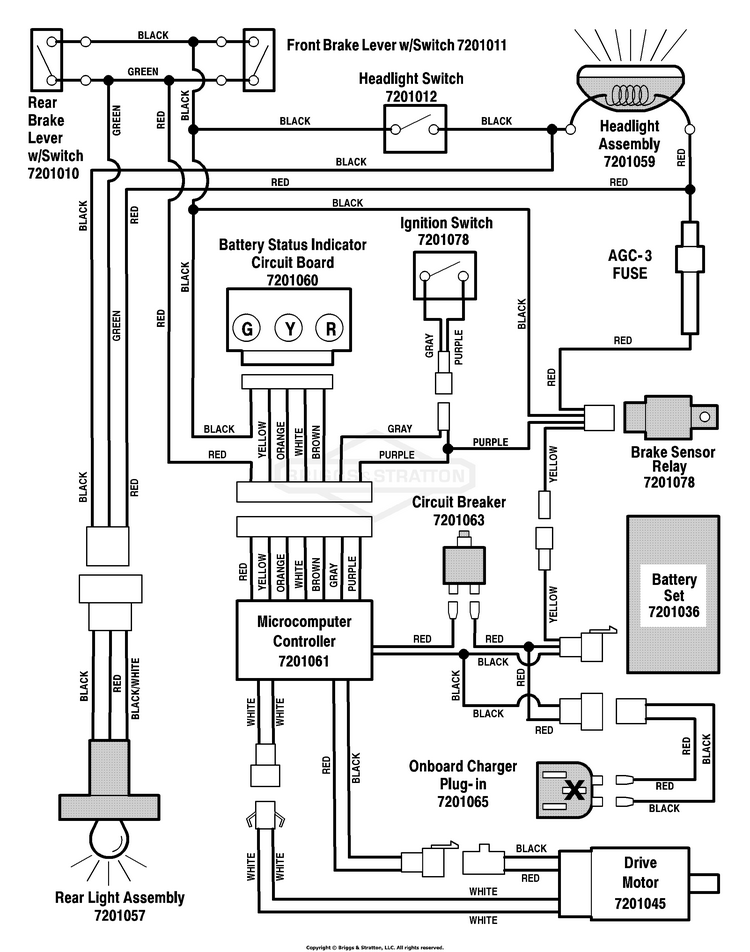

Electrical System

...
...
7201011
Front Brake Lever w/Switch BS-7201011
...
7201012
Headlight Switch BS-7201012
...
7201010
Rear Brake Lever w/Switch BS-7201010
...
7201059
Headlight Assembly BS-7201059
...
7201060
Battery Status Indicator Circuit Board BS-7201060
...
7201078
Ignition Switch BS-7201078
...
7201063
Circuit Breaker BS-7201063
...
7201061
Microcomputer Controller BS-7201061
...
7201078
Brake Sensor Relay BS-7201078
...
7201036
Battery Set BS-7201036
...
7201065
Onboard Charger Plug-in BS-7201065
...
7201057
Rear Light Assembly BS-7201057
...
7201045
Drive Motor BS-7201045
