ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Save Part Not Listed?

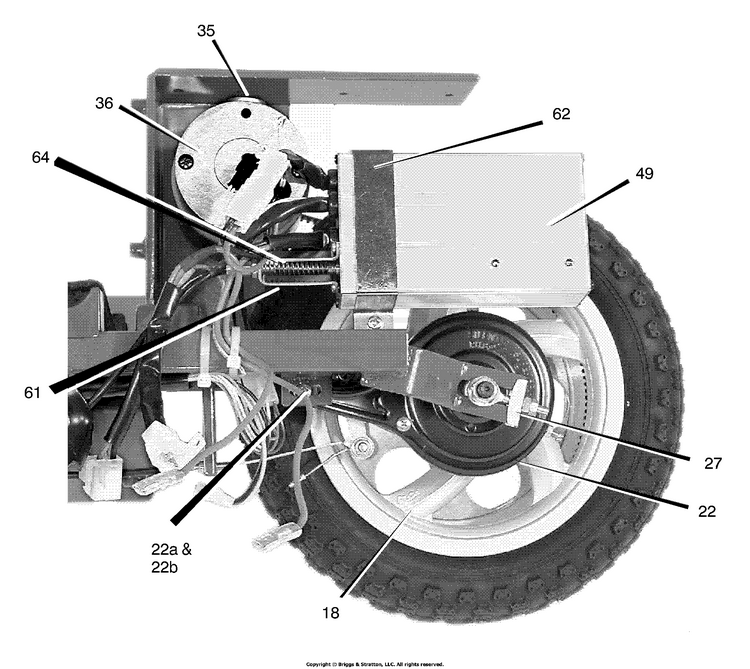

Rear Wheel & Brake Assembly

Wheel Assembly, Rear (Incl'ds Spacers, Washers & Axle Nuts) BS-7201023

Spacer, R. Wheel-Left (1 req'd) BS-7201135

Spacer, R. Wheel-Right (1 req'd) BS-7201134

Washer (2 required) BS-7201099

Nut, Axle (2 required) BS-046750

Tire (Only) BS-7201025

Tube, Rear (Only) BS-7201024

Brake Assembly (Incl'ds Housing, Band, Drum & Brake Arm and Cable Anchor Screw & Nut) BS-7201028

22A

Screw, Brake Assembly Mounting (1 required) BS-7201114

22B

Nut, Brake Assembly Mounting (1 required) BS-7201091

Adjuster Ass'y., Rear Wheel (Includes hardware) BS-7201034

Nut (1 required) BS-7201117

Brush, Motor (2 required) BS-7201044

Motor, Drive (DC) BS-7201045

Screw, Hex Head (2 required) BS-7201110

Washer, Spring (2 required) BS-7201103

Washer (2 required) BS-7201102

Controller, Microcomputer BS-7201061

Bracket, Throttle Cable Mount BS-7201074

Screw (2 required) BS-7201093

Bracket, Controller Mount BS-7201075

Screw (2 required) BS-7201121

Washer, Spring (2 required) BS-7201103

Washer (1 required) BS-7201102

Spring, Throttle Control BS-7201077

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
