ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Back To Assemblies

Save Part Not Listed?
product name

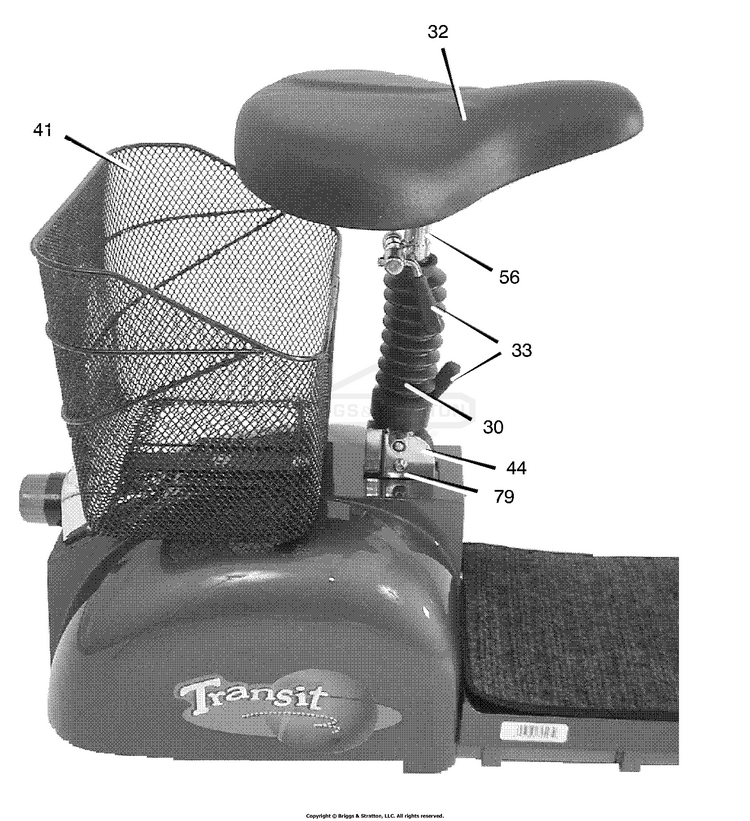

Seat Assembly

...
...
30
Bellows, Seat Support BS-7201038
...
32
Seat BS-7201040
...
33
Lever Assembly, Quick Release BS-7201041
...
--
Spring, Compression-Front Quick Release Lever (inside base of handlebar) BS-7201079
...
41
Basket-Black BS-7201050
...
44
Bracket, Seat Post Mount BS-7201055
...
--
Screw, Socket (2 required) BS-7201101
...
--
Washer, Spring (2 required) BS-7201100
...
56
Seat Support Ass'y-Telescoping BS-7201069
...
79
Screw, Pivot BS-7201094
