ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Back To Assemblies

Save Part Not Listed?
product name

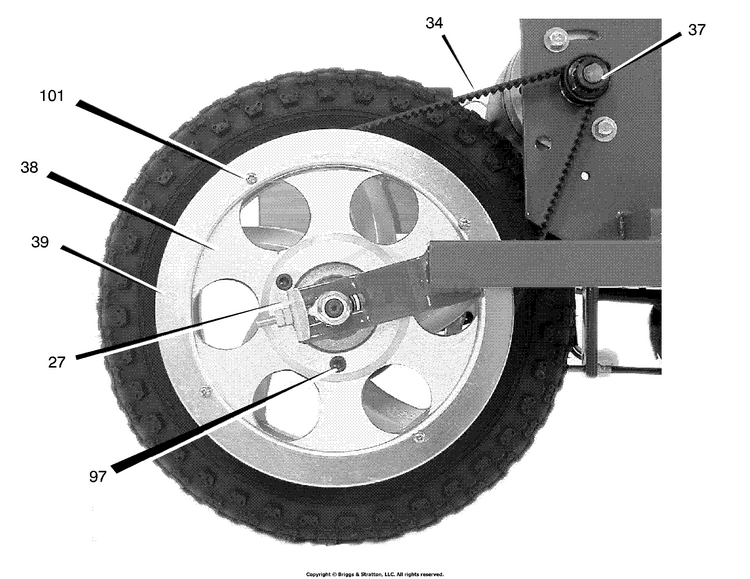

Belt Drive

...
...
27
Adjuster Ass'y., Rear Wheel (Includes One Nut) BS-7201034
...
--
Nut, Jam (1 required) BS-7201117
...
34
Belt, Drive BS-7201043
...
37
Gear, Motor BS-7201046
...
--
Screw, Set (2 required) BS-7201111
...
38
Gear, Wheel BS-7201047
...
39
Cover, Gear Wheel BS-7201048
...
97
Screw, Socket (3 required) BS-7201112
...
--
Washer, Spring (3 required) BS-7201103
...
101
Screw (4 required) BS-7201116
...
--
Washer, Spring (4 required) BS-7201115
