ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Back To Assemblies

Save Part Not Listed?
product name

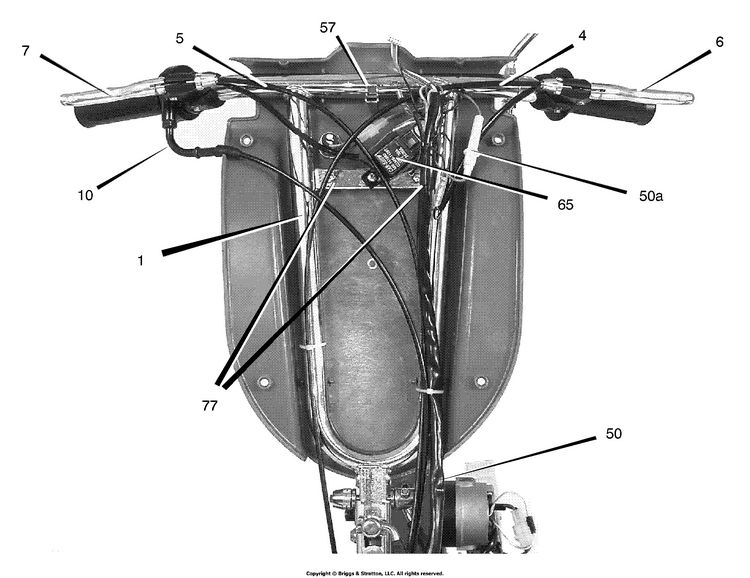

Cables, Levers & Fuse

...
...
1
Handlebar BS-7201005
...
4
Cable, Rear Brake-Left BS-7201008
...
--
End Cap, Cable BS-7201127
...
5
Cable, Front Brake-Right BS-7201009
...
--
End Cap, Cable BS-7201127
...
6
Lever, Rear Brake-w/switch BS-7201010
...
7
Lever, Front Brake-w/switch BS-7201011
...
10
Cable, Accelerator BS-7201014
...
50
Harness, Wiring-w/Fuse BS-7201062
...
57
Bracket, Headlight BS-7201070
...
--
Screw (2 required) BS-7201090
...
65
Sensor Relay, Brake BS-7201078
...
--
Washer, Spring (1 required) BS-7201095
...
--
Screw (1 required) BS-7201121
...
--
Nut (1 required) BS-7201117
...
77
Screw (2 required) BS-7201092
