ES1000x92 Murray - Electric Scooter (2001)

Model: ES1000x92

Back To Assemblies

Save Part Not Listed?
product name

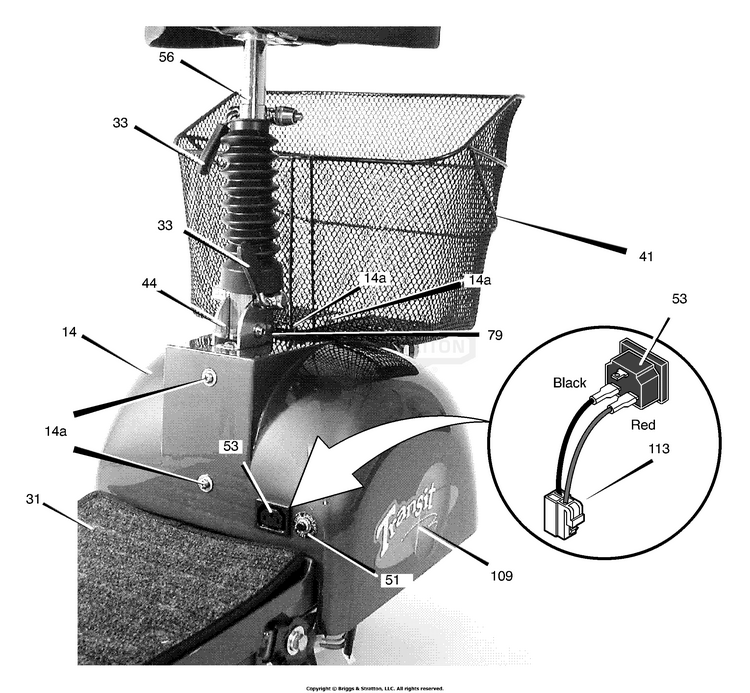

Onboard Charging System

...
...
14
Cover, Rear Wheel-with Decals BS-7201018
...
14A
Screw (4 required) BS-7201106
...
--
Washer (4 required) BS-7201096
...
31
Floormat BS-7201039
...
--
Screw (2 required) BS-7201097
...
--
Washer (2 required) BS-7201096
...
33
Lever Ass'y., Quick Release BS-7201041
...
--
Spring, Compression-Quick Release Lever (in base of seat mounting post) BS-7201080
...
41
Basket-Black BS-7201050
...
44
Bracket, Seatpost Mounting BS-7201055
...
--
Screw (2 required) BS-7201101
...
--
Washer, Spring (2 required) BS-7201100
...
51
Circuit Breaker (20A) BS-7201063
...
--
Nut, Retainer BS-7201128
...
--
Washer, Instructional Cover BS-7201129
...
53
Plug-in, Onboard Charging (requires gluing to Cover) BS-7201065
...
56
Seat Support Ass'y-Telescoping BS-7201069
...
79
Screw, Pivot BS-7201094
...
109
Decal, Transit BS-48X656
...
113
Harness, Wire-Onboard Charger Plug BS-7201125
