EH3550x4A Murray - Edger (2000)

Model: EH3550x4A

Save
Part Not Listed?Part Not Listed?

product name

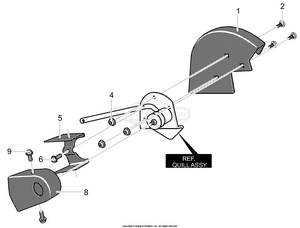

Blade & Quill Cover Assembly

...
...
1
Blade Guard BS-331076-860

...
2
Bolt, 5/16-18x.63 Carr. BS-57072

...
4
Nut, 5/16-18 Wdfllk Whiz BS-710205

...
5
Guide, Belt Front BS-326748-860

...
6
Screw, 1/4-20x.50 BS-710264

...
8
Cover, Quill Pulley BS-53405-860

...
9
Screw, 10-16x.50 BS-710271

...
--
Decal, Blade Cover BS-333874

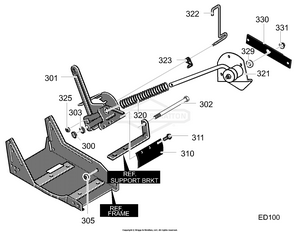

Blade Mount Assembly

...
...
300
Flatwasher BS-120396

...
301
Quill Support BS-338656-860

...
302
Bolt, 3/8-16 HHSH BS-308254

...
303
Flatwasher BS-710083

...
305
NUT, 3/8-16 BS-703333

...
310
Rubber Deflector BS-308243MA

...
311
Screw, 10-16x1.50 BS-710271

...
320

...
321
Quill Assembly BS-740039MA

...
322
Lever, Index BS-308466MA

...
323
Spring, Torsion BS-308155MA

...
325
Nut, 5/16-18 BS-1498

...
329
Flatwasher BS-22265MA

...
330
Blade, Edger BS-740297MA

...
331
Nut, 1/2-20 Wdfl BS-46023MA

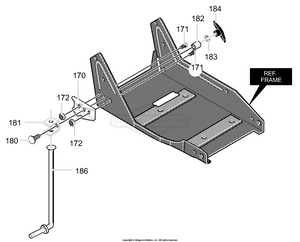

Curb Hop Mount Assembly

...
...
170
Bracket, Curb Hop Mnt BS-6842MA

...
171
BOLT, 5/16-18 X 3/4" BS-5025011X6SM

...
172
Nut, 5/16-18 BS-1498

...
180
Bolt, 5/16-18x2.00 BS-126380

...
181
Clevis BS-8082MA

...
182
Spacer, Sleeve BS-45222MA

...
183
Flatwasher BS-120393

...
184
WINGKNOB, 5/16-18 BS-703065

...
186
Rod, Wheel Support BS-310896MA

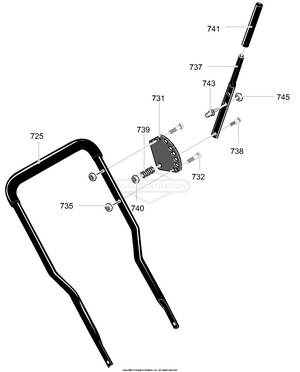

Depth Adjust Handle Assembly

...
...
725
Upper Handle BS-740129-853

...
731
Selector Plate BS-310052-853

...
732
BOLT, 1/4-20 BS-5025010X12SM

...
735
NUT, 1/4-20 BS-703251

...
737
Depth Adjust Handle BS-310050-853

...
738
Screw, 5/16-18 x 1.25 BS-180081MA

...
739
Spring, Compression BS-25644MA

...
740
Nut, 5/16-18 BS-1498

...
741
Grip, Hand BS-56924MA

...
743

...
745
NUT, 3/8-16 BS-703333

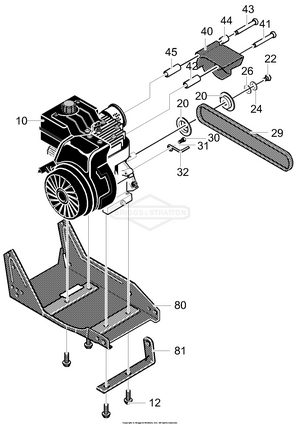

Engine Mount

...
...
12
Screw, 3/8-16 x 1.00 BS-47792MA

...
20
Pulley, Half BS-314781MA

...
22
Screw, 5/16-24 x 1.00 BS-181608

...
24
Washer, Hvsptlk BS-120638

...
26
Flatwasher BS-45602MA

...
29
Belt, V4L 32.60LG BS-32668MA

...
30
Screw 5/16-24x1.00 BS-578733MA

...
31
Flat washer BS-45602MA

...
32
Guide, Belt BS-51600MA

...
40
Cover, Engine Pulley BS-331281-860

...
41
Screw, 5/16-24 x 3.00 BS-181624MA

...
42
Spacer, Sleeve BS-315095MA

...
43
Screw, 5/16-24 x 3.75 BS-173030

...
44

...
45
Spacer, Sleeve BS-315095MA

...
80
Frame, Assy. Edger BS-323534-860

...

...
--
Instruction Manual BS-F-001100M

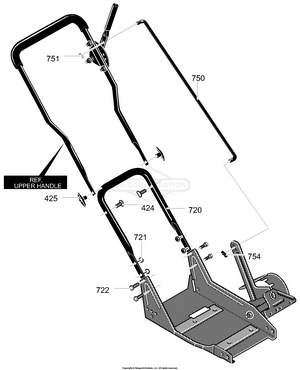

Handle Assembly

...
...
424
Bolt, 5/16-18x1.75 BS-315288MA

...
425
WINGKNOB, 5/16-18 BS-703065

...
720
Lower Handle BS-740127-853

...
721
Nut, 5/16-18 BS-1498

...
722
Screw, 5/16-18 x 0.63 BS-51333

...
750
Control Rod BS-580292-853

...
751
Hair Pin BS-36368MA

...
754
Hair Pin BS-36368MA

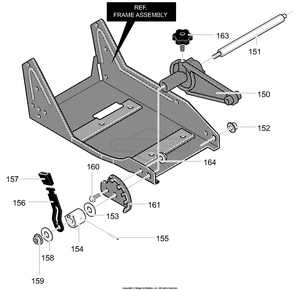

Height Adjust Lever Assembly

...
...
150
Front Wheel Arm BS-339299-860

...
151
Front Curb Hopper BS-740132MA

...
152
Pushnut, Washer BS-338614MA

...
153
Plastic Washer BS-325892MA

...
154
Spacer, Height Adjust BS-331421MA

...
155
Pin, Spring BS-332002MA

...
156
Lever, Height Adjust BS-331419MA

...
157
Knob, Rectangle BS-20252MA

...
158
Flatwasher BS-22265MA

...
159

...
160
Screw, 5/16-18 x 0.63 BS-51333

...
161
Plate, Height Adjust BS-331394-860

...
163
Knob, Molded BS-339388MA

...
164
Nut, 5/16-18 BS-710205

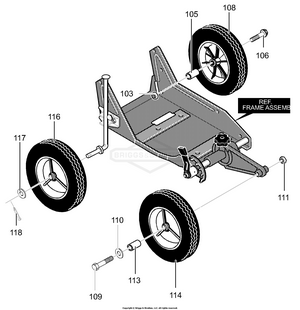

Wheel Assembly

...
...
103
Nut, 3/8-16 Reghexctrlk BS-1498

...
105
Spacer, Sleeve BS-310715MA

...
106
Bolt, HHSH 3/8 BS-310716MA

...
108
Tire & Rim BS-336545MA

...
109
Screw, 5/16-18 x 3.00 BS-180113MA

...
110
Flatwasher BS-120393

...
111
Nut, 5/16-18 Wdfllk BS-710205

...
113
Spacer, Sleeve BS-51887MA

...
114
Tire & Rim BS-336546MA

...
116
Tire & Rim BS-336545MA

...
117
Flatwasher BS-712125

...
118
Cotter Pin BS-121222

...
--
Book, Instruction BS-F-001100M
...
...
...
