product name

EGO LM2150SP Lawn Mower

Model: LM2150SP

Save Part Not Listed?
product name

EGO LM2150SP

...
...
1
Bag Frame CHV-3705442002
...
2
Grass Catcher CHV-3800109002
...
3
Blade CHV-3707066004
...
4
Blade CHV-3707494002
...
5
Side Discharge Chute CHV-3129809001
...
6
Mulch Plug CHV-3129653001
...
7
Hubcap CHV-3126765001
...
8
Hexagon Flange Bolt CHV-5640010003
...
9
Screw CHV-5620067010
...
10
Switch Assembly CHV-2826165001
...
11
Protecting Cap CHV-3128946001
...
12
Wave Washer CHV-5650453001
...
13
Gear CHV-3520933001
...
14
Trail Shield CHV-3129771001
...
15
Bevel Support CHV-3129770001
...
16
Rear Cover CHV-3126689003
...
17
Torsion Spring CHV-3660559001
...
18
Shaft CHV-5670345001
...
19
Hexagon Socket Screw CHV-5620157006
...
20
Service Cover Assembly CHV-2826055001
...
21
Wheel Assembly CHV-2825267001
...
22
Right Fixing Block CHV-3706195001
...
23
Support Plate CHV-3706663001
...
24
Rubber Gasket CHV-3127738001
...
25
Left Fixing Block CHV-3706196001
...
26
Plain Washer CHV-5650004001
...
27
Support Plate CHV-3706664001
...
28
Tension Spring CHV-3660557001
...
29
Tapping Screw CHV-5610286001
...
30
Clamp CHV-3705397001
...
31
Shaft Assembly CHV-2825630001
...
32
Connecting Rod CHV-3705142001
...
33
Screw CHV-5620480002
...
34
Depth Stop Plate CHV-3706552001
...
35
Tension Spring CHV-3660558001
...
36
Dust Board Assembly CHV-2826100001
...
37
E Ring CHV-5660139002
...
38
Plain Washer CHV-5650025004
...
39
Handle Lever Set CHV-2825629001
...
40
Screw CHV-5620065004
...
41
Height Adjusting Lever CHV-3322429001
...
42
Mounting Plate CHV-3705398001
...
43
Connecting Rod Assembly CHV-2825633001
...
44
Prevailing Torque Hexagon Nut CHV-5630013003
...
45
Rear Enclosure CHV-3129624001
...
46
Left Cover CHV-3129626001
...
47
Fan CHV-3403110001
...
48

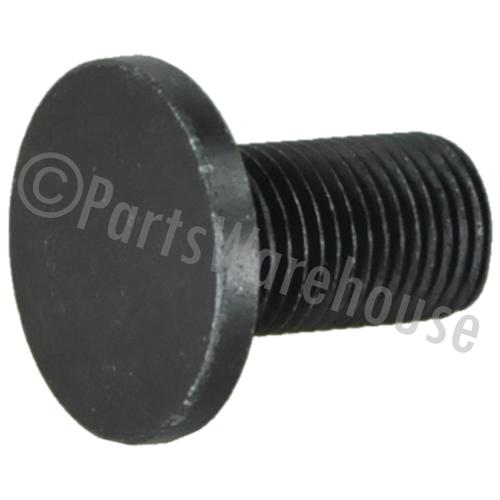

Bolt CHV-5640321002
...
49
Upper Blade CHV-2827669001
...
50
Blade CHV-3707130003
...
51
Prevailing Torque Hexagon Lock Nut CHV-5630351002
...
52
Washer CHV-5650705002
...
53
Flange Bolt CHV-5640226002
...
54
Wheel Assembly CHV-2824429003
...
55
Front Axle Set CHV-2825628001
...
56
Mounting Plate CHV-3705216001
...
57
Hubcap CHV-3126769001
...
58
Right Cover CHV-3129625001
...
59
Cover Assembly CHV-2826099001
...
60
Bolt And Washer Set CHV-5640217003
...
201
Power Unit CHV-2827554002

EGO LM2150SP

...
...
1
Transparent Guard CHV-3129442001
...
2
Plain Washer CHV-5650013001
...
3
Hexagon Socket Screw CHV-5620157006
...
4
Top Cover Assembly CHV-2826307001
...
5
Battery Box Assembly CHV-2826306001
...
6
Bolt And Washer Set CHV-5640217004
...
7
Bottom Support CHV-3403069001
...
8
Dc Motor CHV-2730254001
...
9
4908 Led Electric Assembly CHV-2830412001
...
10
Support CHV-3129439001
...
11
Spring1 CHV-3660013003
...
12
Power Pack Button CHV-3127202001
...
13
Release Button CHV-3127201001
...
14
4908 Fuse Pcba CHV-2830216002
...
15
Wiring Harness CHV-4860570002
...
16
Rear Cover CHV-3130401001
...
17
4907.2_Variable Speed Electric Assembly CHV-2830528001
...
18
4907.2_Main Electric Assembly CHV-2830831001
...
19
Mounting Plate CHV-3129434001
...
20
Internal Wire Assembly CHV-4860616001
...
202
Handle Assembly CHV-2826068002
...
401
Battery Cover Assembly CHV-2826310001

EGO LM2150SP

...
...
1
Film Switch CHV-4870710001
...
2
Hexagon Socket Screw CHV-5620161005
...
3
Prevailing Torque Hexagon Nut CHV-5630006002
...
4
Rubber Block CHV-3126832001
...
5
Clamp Block CHV-3126761001
...
6
Intermedium Tube CHV-3705393001
...
7
Right Telescope Tube Assembly CHV-2827604001
...
8
Nut CHV-5630268001
...
9
Prevailing Torque Hexagon Nut CHV-5630013003
...
10
Pin CHV-3550048003
...
11
Pin Shaft CHV-5670142001
...
12
Connecting Rod Assembly CHV-2825245001
...
13
E Ring CHV-5660245001
...
14
E Ring CHV-5660302001
...
15
Decorative Cover CHV-3128648001
...
16
Spindle Assembly CHV-2825991001
...
17
Switch Actuator CHV-3129714001
...
18
Decorative Cover CHV-3128647001
...
19
Pin CHV-5670432001
...
20
Square Neck Bolt CHV-5640168001
...
21
Sleeve CHV-3551952001
...
22
Compression Spring CHV-3660565001
...
23
Left Telescope Tube Assembly CHV-2827605001
...
24
Internal Wire Assembly CHV-2826843001
...
25
Switch Actuator CHV-3129632001
...
26
Torsion Spring CHV-3660724001
...
27
Compression Spring CHV-3660814001
...
28
Plain Washer CHV-5650004001
...
29
Switch Actuator CHV-3127905001
...
30
Button CHV-3129665001
...
31
Control Handle Set CHV-2825826001
...
32
Handle Set CHV-2826127002
...
33
Switch Lever CHV-3127908001
...
34
Compression Spring CHV-3660562001
...
35
Clamp CHV-3126763001
...
36
Hexagon Socket Screw CHV-5620157006
...
37
Switch Electric Assembly CHV-2830530002
...
203
Self-Propelled Unit CHV-2826067001
...
401
Beam Assembly CHV-2826768002
...
402
Beam Assembly CHV-2826608002
...
403
Switch Box Set CHV-2826978001
...
404
Control Handle Set CHV-2823771001

EGO LM2150SP

...
...
1
Screw CHV-5620033010
...
2
Motor & Gear Assembly CHV-2826577002
...
3
Gear Set CHV-2826428002
...
4
Dust Cover CHV-3900208001
...
5
Support CHV-3128943001
...
6
Hexagon Socket Screw CHV-5620157006
...
7
Screw CHV-5620480002
