EGO LM2100SP Version-B Lawn Mower

Model: LM2100SP_B

Save Part Not Listed?
product name

EGO LM2100SP_B

...
...
1
Bag Frame CHV-3705442002
...
2
Grass Catcher CHV-3800109002
...
3
Side Discharge Chute CHV-3127911001
...
4
Mulch Plug CHV-3127924001
...
5
Tapping Screw CHV-5610042014
...
6
Plain Washer CHV-5650004001
...
7
Trail Shield CHV-3126391001
...
8
Tapping Screw CHV-5610032004
...
9
Decorative Cover CHV-3126912001
...
10
E Ring CHV-5660003003
...
11
Handle Lever Set CHV-2824250001
...
12
Pin CHV-3550048003
...
13
Compression Spring CHV-3660565001
...
15
Service Cover Assembly CHV-2824265002
...
16
Mounting Plate CHV-3705398001
...
17
Depth Stop Plate CHV-3705896001
...
18
Rubber Pad CHV-3128083001
...
19
Washer CHV-3700353001
...
20
Electric Assembly CHV-2830076005
...
21
Spongy Cushion CHV-3706018001
...
23
Rubber Gasket CHV-3127738001
...
24
Push Switch CHV-4870566002
...
25
Shaft CHV-5670345001
...
26
Torsion Spring CHV-3660559001
...
27
Rear Cover CHV-3126689003
...
28
Fixed Set CHV-2824383001
...
29
Tapping Screw CHV-5610047003
...
30
Clamp CHV-3705397001
...
31
Connecting Rod CHV-3705142001
...
32
Prevailing Torque Hexagon Nut CHV-5630013003
...
33
Height Adjusting Lever CHV-3321478001
...
34
Screw CHV-5620065004
...
35
Tapping Screw CHV-5610044002
...
36
E Ring CHV-5660139002
...
37
Plain Washer CHV-5650025004
...
38
Shaft Assembly CHV-2823322001
...
39
Tension Spring CHV-3660558001
...
40
Handle Lever Set CHV-2823295001
...
41
Rear Enclosure CHV-3127925001
...
42
Connecting Rod Set CHV-2824668001
...
43
Tension Spring CHV-3660557001
...
44
Fan CHV-3127847001
...
45
Motor Bushing CHV-3520852002
...
46
Blade CHV-3705938001
...
47
Washer CHV-5650510001
...
48
Flange Bolt CHV-5640226001
...
49
Hubcap CHV-3126769001
...
50
Hexagon Flange Bolt CHV-5640010003
...
51
Wheel Assembly CHV-2824429003
...
52
Front Axle Set CHV-2824372001
...
53
Mounting Plate CHV-3705216001
...
54
Wave Washer CHV-5650453001
...
55
Clamp CHV-3705440001
...
56
Left Cover CHV-3127940001
...
57
Protecting Cap CHV-3128946001
...
58
Screw CHV-5620067010
...
59
Gear CHV-3520933001
...

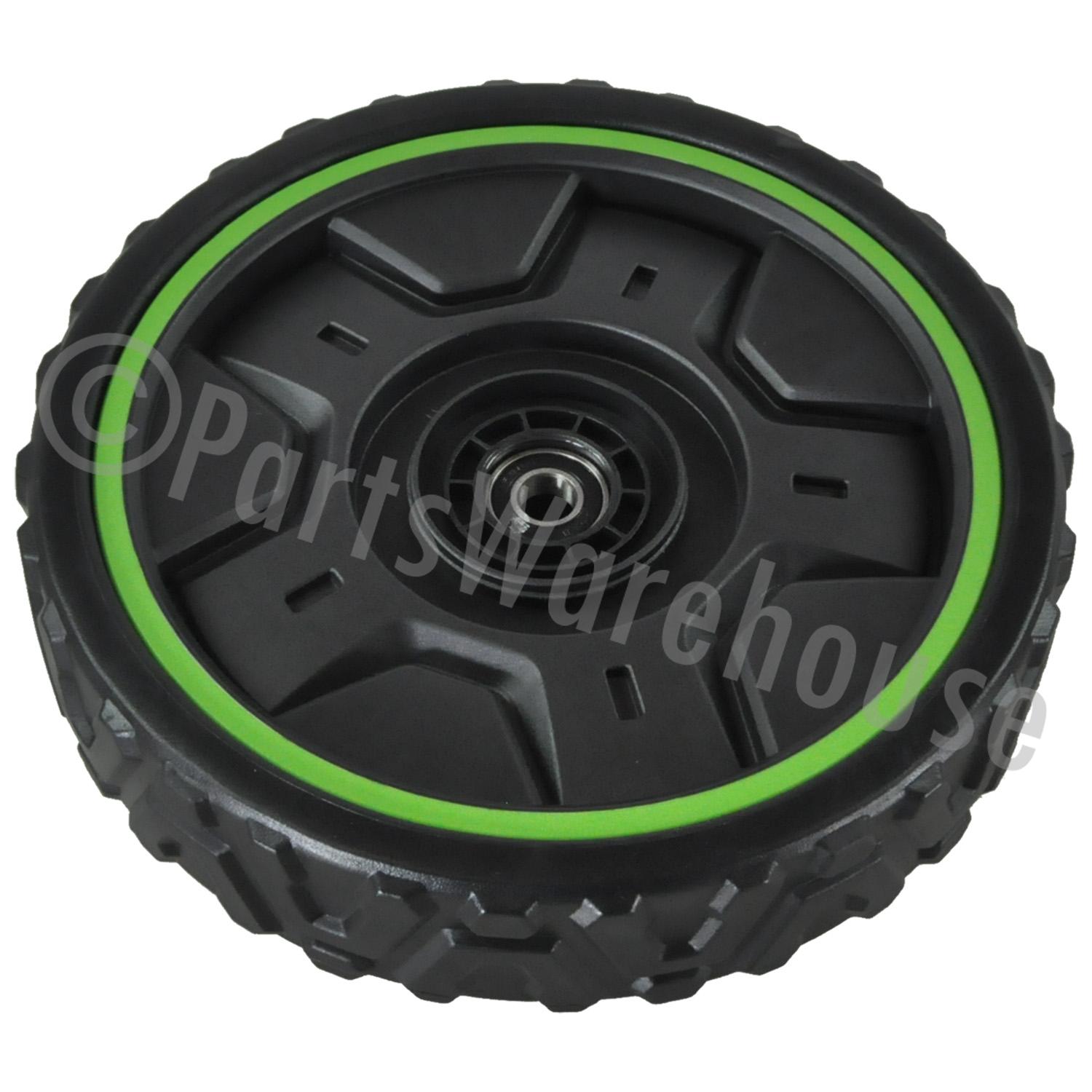

60
Wheel Assembly CHV-2825267001
...
61
Hubcap CHV-3126765001
...
62
Housing Cover Assembly CHV-2825825001
...
63
Right Cover CHV-3127939001
...
64
Bolt And Washer Set CHV-5640217002
...
67
Cover CHV-3127892001
...
201
Power Unit CHV-2824248007
...
202
Handle Assembly CHV-2824304001
...
203
Self-Propelled Unit CHV-2825258001

EGO LM2100SP_B

...
...
1
Transparent Guard CHV-3127900001
...
2
Tapping Screw CHV-5610042014
...
3
Inner Cover CHV-3128072001
...
4
Decorative Cover Assembly CHV-3900068001
...
5
Led Cover Assembly CHV-2827419001
...
6
Wiring Harness CHV-4930490001
...
7
Pcb Assembly CHV-4891202002
...
8
Plain Washer CHV-5650004001
...
9
Electric Assembly CHV-2830075001
...
10
Release Button CHV-3126760001
...
11
Sliding Block CHV-3126772001
...
12
Fixed Unit CHV-3126782001
...
13
Spring CHV-3660303002
...
14
Dc Motor CHV-2730233001
...
15
Base Assembly CHV-2825644001
...
16
Bolt And Washer Set CHV-5640217002
...
17
Battery Box Assembly CHV-2825623001
...
18
Reflector CHV-3127984001
...
19
Transparent Cap CHV-3127982001
...
20
Front Cover Assembly CHV-2824901002
...
21
Transparent Cap CHV-3127981001
...
22
Reflector CHV-3127983001
...
23
Pcb Assembly CHV-2823604003
...
24
Pin CHV-5670380001
...
25
E Ring CHV-5660003003
...
401
Battery Cover Assembly CHV-2824902001

EGO LM2100SP_B

...
...
1
Sheath Assembly CHV-2823782001
...
2
Control Handle Assembly CHV-2824118001
...
3
Switch Actuator CHV-3127905001
...
4
Tapping Screw CHV-5610032004
...
5
Compression Spring CHV-3660814001
...
6
Switch Lever CHV-3127908001
...
7
Compression Spring CHV-3660562001
...
8
Clamp CHV-3126763001
...
9
Left Telescope Tube Assembly CHV-2826006001
...
10
O Ring CHV-3123112001
...
11
Adjusting Knob CHV-3127930001
...
12
Prevailing Torque Hexagon Nut CHV-5630006002
...
13
Left Cover Set CHV-2824427001
...
14
Torsion Spring CHV-3660568001
...
15
Parallel Pin CHV-5670191002
...
16
Control Handle CHV-3126790002
...
17
Clamp Block CHV-3126761001
...
18
Rubber Block CHV-3126832001
...
19
Nut CHV-5630268001
...
20
Prevailing Torque Hexagon Nut CHV-5630013003
...
21
Sleeve CHV-3551952001
...
22
Square Neck Bolt CHV-5640168001
...
23
Switch Level CHV-3126783001
...
24
Spindle Assembly CHV-2823431002
...
25
Decorative Cover CHV-3126912001
...
26
Spring CHV-3660287002
...
27
Switch Actuator CHV-3126768001
...
28
Right Cover Set CHV-2824426001
...
29
Switch Box Set CHV-2824305001
...
30
Thread Forming Screw CHV-5610064005
...
31
Button CHV-3127929001
...
32
Control Handle CHV-3127928001
...
33
Right Telescope Tube Assembly CHV-2826007001
...
34
Push Switch CHV-4870566001
...
35
Micro Switch CHV-4870500001
...
36
Intermedium Tube CHV-3705393001
...
401
Control Handle Set CHV-2823714002
...
402
Switch Assembly CHV-2824306003

EGO LM2100SP_B

...
...
1
Tapping Screw CHV-5610044002
...
2
Hexagon Socket Screw CHV-5620157006
...
3
Screw CHV-5620049004
...
4
Motor & Gear Assembly CHV-2825265002
...
5
Dust Cover CHV-3900059001
