Dyson DC17 Upright Vacuum Model: DC17 Add to My Models

Popular Parts:
Brushbar Assy DY-911961-01
Belt DY-911710-02
Pre-Filter Assy DY-911236-01
HEPA Post Filter DY-911235-01
Dyzlov DY-903888-06


01. Black Bearing Clip DY-901769-04
02. Iron Cleaner Head Assy DY-912276-01
03. Internal Hose Assy DY-911606-01
04. Cleaner Head Wiring Cover DY-911288-01
05. Clear Brush Housing (must replace 20. Brushbar Motor Cover on older models) DY-911279-02
06. Screw M3.5X12-T15 DY-910703-03
07. Iron Bumper Strip DY-911271-01

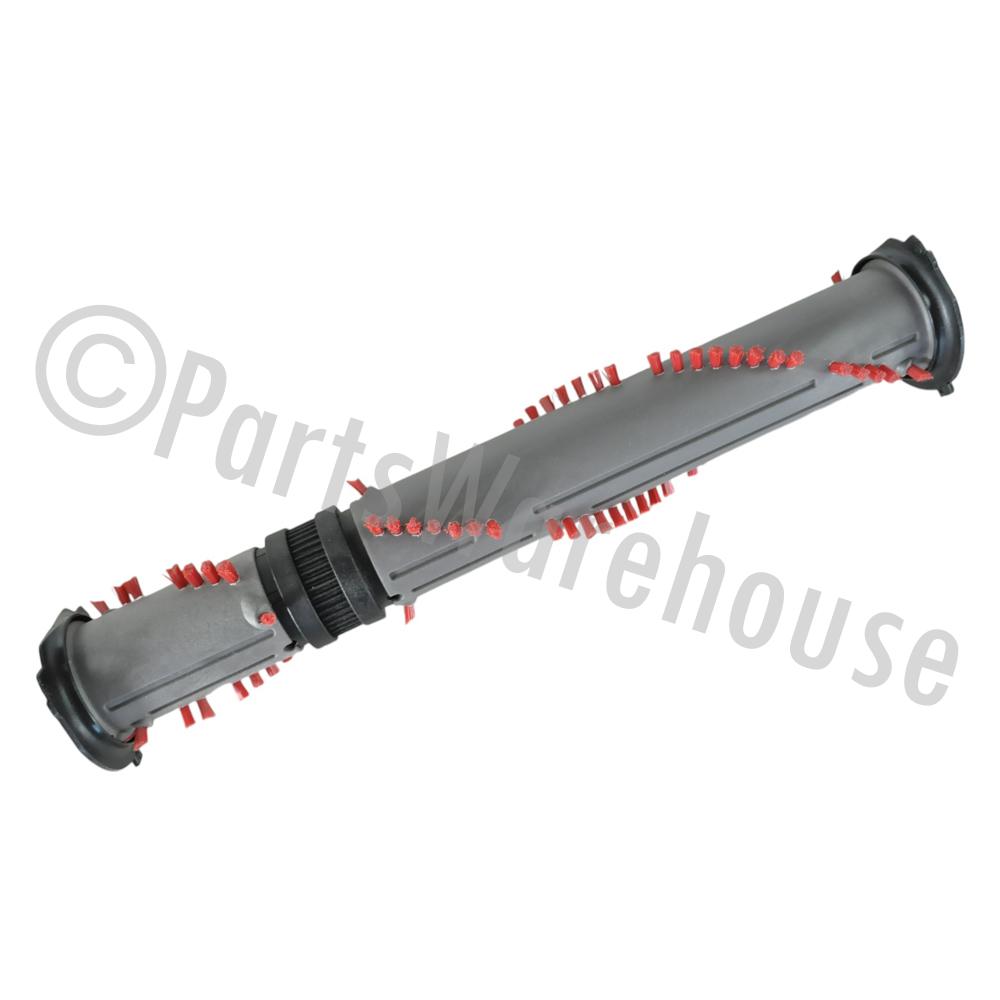

08. Brushbar Assy DY-911961-01
09. Rope Seal DY-911721-01
10. Iron Soleplate Assy DY-912278-01
11. Soleplate Wheel DY-904562-01
12. Flicker Strip DY-912402-03
13. Spring DY-919900-07
14. Upright Lock DY-911297-01
15. Cleaner Head Wiring Grommet DY-911289-01
16. Clear Cleaner Head Pivot Circlip DY-901716-17
17. Brushbar Motor Assy DY-916217-01
18. Spring DY-911843-01
19. Screw FNLA
20. Brushbar Motor Cover (must also replace 21. Belt and 08. Brushbar Assy) DY-911280-02
21a. Belt for models without clutch DY-911710-01
21b. Belt for models with clutch DY-911710-02
22. Brush Housing Service Assembly FNLA
23. Axle DY-900131-02
24. Iron Soleplate Fastener DY-900130-24


01. Spring DY-919900-06
02. Titanium Cyclone Release Catch DY-911304-01
03. Clear Brushbar Reset Arm DY-911746-01
04. Spring DY-900199-21
05. Switch DY-910971-01
06. Reset Switch DY-911964-01
07. Reset Switch Loom DY-911490-01
08. Switch Assy DY-913507-01
09. Crevice Tool Clip DY-907764-04
10. Exhaust Seal DY-911730-01
11. Brush Tool Clip DY-911308-01
12. Iron Tool Clip DY-904111-08
13. Inlet Seal DY-911301-01
14. Duct Valve Seal DY-911575-01
15. Valve Pipe Assy DY-912361-01
16. Valve Pipe Connector DY-911574-01
17. Pre-Filter Inlet Seal DY-911238-01
18. Pre-Filter Lid Assy DY-912275-01
19. Pre-Filter Assy DY-911236-01
20. U-Bend Assy DY-911895-01
21. Duct Assy DY-912344-02
22. Spring DY-919900-14
23. Clear Wand Release Catch DY-911042-01
24. Screw FNLA
25. Screw M3.5X12-T15 DY-910703-03
26. Cable Protector DY-903382-01
27. Internal Powercord DY-911489-01
28. Powercord Assy DY-911488-01
29. Insulator Boot DY-911508-01
30. Lower Cable Winder DY-911306-02
31. Black Bearing Clip DY-901769-04
32. Post Filter Lid DY-911240-01
33. Screw DY-910702-10


01. Motor Mount DY-911237-01
02. Motor (Panasonic) DY-911604-01
03. Fancase Seal DY-911597-01
04. Motor Bucket DY-911282-01
05. Motor Bucket Mount DY-911239-01
06. Iron Glamour Cap DY-900049-13
07. Iron Wheel DY-904193-12
08. LMC DY-911299-01
09. Screw FNLA
10. Wheel Retaining Kit DY-904303-01
11. HEPA Post Filter DY-911235-01
12. Wheel Axle DY-900279-02
13. Upright Microswitch DY-916405-01


01.Cyclone Assy DY-917405-04
01. Metallic Purple Cyclone Assy DY-917405-01
01. Metallic Blue Cyclone Assy DY-917405-02
01. Iron/Satin Cyan Cyclone Assy DY-917405-05
02. Front Bin Catch DY-911331-01
03. Spring DY-900199-21
04. Bin Seal DY-911328-01
05. Bin Assy DY-911920-01
06. Bin Base Assy DY-911921-01


01. Iron Wand Cap DY-911131-01
02. Wand Assy (colors may vary) DY-911647-01
03. Instruction Pack Assy DY-912400-01
04. Zorb Pouch DY-903914-07
05. Carpet Cleaning Kit (Retail Pack) DY-904975-03
06. Iron Groomer DY-902261-07
06. Universal Zorb Groomer DY-902261-09
07. Dyzolv DY-903888-06
08. Universal Mini Turbine Head (Mail Order) DY-915034-02
09. Titanium/Iron Low Reach Floor Tool Assy DY-904136-39
10. Hose Assy DY-911645-07
11. Brush Tool Assy DY-911857-01
12. Iron Stair Tool Assy DY-911707-01
13. Iron Crevice Tool DY-907763-02

Dyson DC50 Animal and Multifloor Upright Vacuum Cleaner Parts

1. Mattress Tool DY-908887-02
2. Stubborn Dirt/Stiff Bristle Brush Assy DY-918508-01
4. Paddle Service Assy DY-963556-01
5. Soleplate Service Assy DY-963826-01
6. Flat Out Head Assy DY-914617-02
7. Dyzolv DY-903888-06
8. Dyson Groom DY-921001-01
9. Soft Dusting Brush DY-908896-02
10. Up Top Tool/Multi Angle Brush DY-917646-01
11. Flexi Crevice Tool Assy DY-917633-01
12a. Iron/Clear Car Cleaning Kit (Retail Pack) DY-908909-08
12b. Carpet Cleaning Kit DY-904975-03
13. Articulating Hard Floor Tool DY-920019-01
14. Zorb Pouch DY-903914-07

- xx. = Not shown on schematic.
