Dewalt DW508K-B2 Type 1 Electric Drill & Driver

Model: DW508K-B2

Save Part Not Listed?
product name

Dewalt DW508K-B2

...
...
3
Brush DWB-146475-04
...
4
Spring, Brush DWB-149425-00
...
5
Ring, Br. Hldr. DWB-148325-01
...
8
Cord And Plug DWB-330122-13
...
9
Bearing, Ball DWB-330003-04
...
10
Ball Bearing DWB-605040-23
...
13
Chuck DWB-384967-01
...
14
Screw, Thd. Form DWB-330019-25
...
15
Nut, Field DWB-151252-00
...
16
Vent, Air DWB-151036-01
...
17
Clamshell, Set DWB-151247-02
...
18
Protector, Cord DWB-330005-01
...
19
Terminal DWB-448387-00
...
20
Deflector DWB-464292-00
...
21
Brg. Blk And Clutch DWB-153152-00
...
22
Wire-Lead DWB-144577-00SV
...
23
Screw, Plastite DWB-330019-13
...
24
Np:Dw508-B2 T1 DWB-155439-05
...
26
Clutch DWB-153149-00
...
29
Spring DWB-086134-00
...
30
Seal DWB-66683-00
...
33
Screw DWB-605256-01
...
35
Side Handle DWB-185559-00
...
38
Nut DWB-2281-00
...
39
Screw DWB-448674-00
...
40
Id Label DWB-395047-00
...
43
Holder DWB-065288-02
...
44
Key, Chuck DWB-330034-08
...
800
Grease, 7Lbs DWB-429954-00
...
801
Grease, 500Grams DWB-429954-01
...
802
Grease DWB-N017298
...
861
Kit Box DWB-624370-00

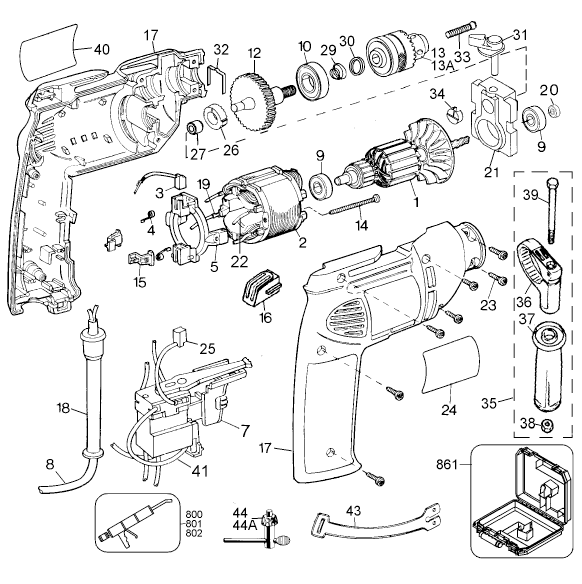

Schematic Image Zoomed
