Denon 2.1 CHANNEL STEREO NETWORK RECEIVER DRA800H

Model: DRA800H

Save Part Not Listed?
product name

Popular Parts

Popular Parts

...
...
1
2P, SCREW SPK(RD/BK,GOLD,TRANSPARENCE) DEN-943646100790S
...
2
AC INLET WIRE ASS'Y (2P,110MM) DEN-943641500540S
...
3
ANT(2.4G/5G EXTERNAL+CABLE I-PEX GRAY 300MM) DEN-963116100930S
...
4
ANT, AM LOOP(9.5UH/5T) DEN-963116100070S
...
5
BADGE , DENON DEN-42141010601AD
...
6
BADGE , DENON DEN-42141010602AD
...
7
BUSH , WIFI ANTENNA DEN-963419100910S
...
8
BUTTON , FUNCTION DEN-943411104150S
...
9
BUTTON , POWER DEN-943411101760D-99
...
10
BUTTON , POWER DEN-943411101750D
...
11
CABINET , TOP DEN-943403101580S
...
12
CAP, CERAMIC(X1/Y1, 0.01UF, AC250V) DEN-943132100820S
...
13
CAP, CHIP(3216, 1000PF, DC1KV, MURATA GRM31) DEN-943132100640S
...
14
CAP, ELECT(200V/100UF),105'C DEN-943134501590S
...
15
CAP, ELECT(25V/47UF),105'C MAR-00MOA47602520
...
16
CAP, ELECT(400V/100UF),18X40L,NHA DEN-963134010200S
...
17
CAP, ELECT(50V/10UF),105'C DEN-00D9430175108
...
18
CAP, ELECT(6.3V/5600UF) DEN-963134010220S-99
...
19
CLIP , WIFI ANTENNA DEN-963419100930S-99
...
20
COIL , SPEAKER ( 0.5UH ) DEN-943115100310S
...
21
CORD , POWER (13A/125V,USA,INLET) DEN-943611501140S
...
22
CUSHION FOOT DEN-00D9630214607
...
23
DIGITAL PCB ASSY (DRA800HE3) DEN-9U6391033300S
...
24
DIODE , RELIABLE ESD PROTECTION DEN-963209003510S
...
25
DIODE , SCHOTTKY BATTIER (TO220FN) DEN-943204500310S
...
26
DIODE , ZENER(7.5V/0.5W, SOD-323HE) DEN-943202501530S
...
27
DIODE, RECTIFIER, AXIAL DEN-943203500730S
...
28
DIODE, ULTRA-HIGH SPEED DEN-201310001503S
...
29
DIODE, ZENER, 1/2W, 12V DEN-943202501140S
...
30
DIODE, ZENER, 1/2W, 27V DEN-943202501160S
...
31
DIODE, ZENER, 1/2W, 3.6V DEN-943202501150S
...
32
DIODE, ZENER, 1/2W, 39V DEN-943202501120S
...
33
DIODE, ZENER, 1/2W, 6.8V DEN-943202501110S
...
34
ENCODER(16),EC16B12SAAD4ZZZ,12PULSE,12DETENT DEN-943671101000D
...
35
ENCODER(16),EC16B24T01D4Z01,24PULSE,24DETENT MAR-943663001560S
...
36
F.E.T , 2N7002KA, N-CH, SOT-23, KEC DEN-943222500440S
...
37
FM 1 POLE ANT ( UL TYPE ) DEN-943116100170D
...
38
FOOT DEN-943407100020D
...
39
FRONT & SUB PANEL ASS'Y DEN-943402107810S
...
40
FUNCTION KNOB ASS'Y DEN-943412101620S
...
41
FUSE(218SERIES, 250V/5A) DEN-0520100170060
...
42
FUSE(932SERIES, 250V/1.25A) DEN-943652500510D
...
43
FUSE(932SERIES, 250V/200MA) DEN-943652500600S
...
44
FUSE(S506 SERIES, 250V,1.6A) DEN-963652010500S
...
45
FUSE(S506 SERIES, 250V,2A) DEN-963652010510S
...
46
HOLDER , WIFI ANTENNA DEN-963419100920S
...
47
I.C , 2CH DAC(32BIT,384KHZ,TSSOP-20P) DEN-963236102290S
...
48
I.C , 8CH PREMIUM DAC(QFN-48P) DEN-943239101840S
...
49
I.C , 8CH VOLUME(SSOP-32P) DEN-23581010150AS-99
...
50
I.C , ADC(96KHZ 24-BIT) DEN-236810086505S
...
51
I.C , DC-DC STEP DOWN 3A (SOT-23) DEN-943239102280S
...
52
I.C , DIR/DIT(WITH ADC,LQFP-48P) DEN-23681014050AS
...
53
I.C , DUAL ANALOG SWITCH (SSOP-32P) DEN-943235100860S
...
54
I.C , DUAL OPAMP(SOP-8P) DEN-943232100380S
...
55
I.C , DUAL OPAMP(SOP-8P) DEN-943232100540S
...
56
I.C , HDMI 2.0 TRANSCEIVER (HQFP-144P) DEN-23681050460AS
...
57
I.C , HDMI 2.0 TX+SCALER DEN-23681050360AS
...
58
I.C , HDMI TRANSCEIVER (LQFP-144P) DEN-943236012460S
...
59
I.C , HEX INVERTERS(TSSOP-14P) DEN-23381001250AS
...
60
I.C , HIGH SIDE SWITCH (TSSOP-B8) DEN-943239101090S
...
61
I.C , IPOD AUTHENTICATION FROM D&M DEN-23671011050AS
...
62
I.C , MAIN MCU (DRA800HBKE3)SEE PROCEDURE AFTER REPLACING THE U-COM, ETC. DEN-943243104270S
...
63
I.C , MUX/DEMUX (TSSOP-16P) DEN-23381001350AS
...
64
I.C , OCTAL BUFFER/DRIVER DEN-963239002150S
...
65
I.C , OFF-LINE POWER SWITCH DEN-943231102160S
...
66
I.C , OP AMP (JRC) MAR-00MHC10102090
...
67
I.C , OPAMP(SSOP-8P) DEN-943232100560S
...
68
I.C , OSD1 SERIAL FLASH (DRA800HBKE3)SEE PROCEDURE AFTER REPLACING THE U-COM, ETC. DEN-943248105270S
...
69
I.C , OSD2 SERIAL FLASH (DRA800HBKE3/BKE2)SEE PROCEDURE AFTER REPLACING THE U-COM, ETC. DEN-943248105300S
...
70
I.C , PHOTO COUPLER DEN-943239101740S
...
71
I.C , PLD(FBGA,256P)SEE PROCEDURE AFTER REPLACING THE U-COM, ETC. DEN-23681011960AS
...
72
I.C , REGULATOR(+12V,TO220) DEN-943232100370S
...
73
I.C , REGULATOR(+5V,T0220IS) DEN-943231010390S
...
74
I.C , REGULATOR(3.3V , SSOP5) DEN-943231102170S
...
75
I.C , REGULATOR(ADJUSTABLE/LDO/SOT89-5/1A) DEN-963231102320S
...
76
I.C , SHIFT/STORE REGISTER(SOIC-16P) DEN-943233102030S
...
77
I.C , SHUNT REGULATOR(TO-92) DEN-212050010508S
...
78
I.C , SYSTEM RESET(4.8V , SOT-25A) DEN-943239100730S
...
79
I.C, DSP SERIAL FLASH (DRA800HBKE3/BKE2)SEE PROCEDURE AFTER REPLACING THE U-COM, ETC. DEN-943248105290S
...
80
JACK, HDMI(TYPE-A, SMT-19P, WITH FLANGE) DEN-943643102920S-99
...
81
JACK, RJ-45 W/TRANSFORMER DEN-943643102430S
...
82
JACK, USB STRAIGHT(BLACK 1.5A) DEN-943643101590S
...
83
KNOB , ROTARY DEN-943412101790S
...
84

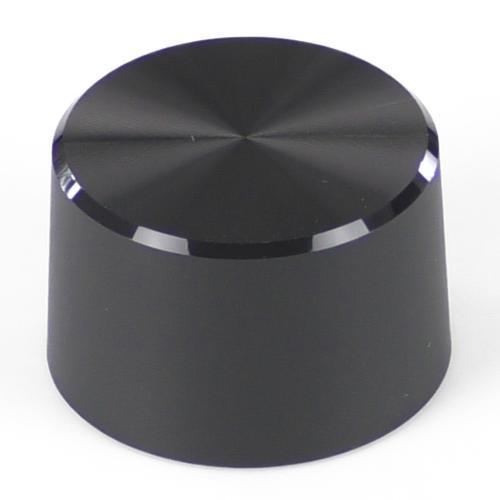

KNOB , SELECT DEN-943412101540S
...
85
KNOB , VOLUME DEN-943412101550S
...
86
L.E.D,(GREEN/RED 5PI) DEN-943176010090S-99
...
87
LENS , POWER LED DEN-943423100630S
...
88
LINE FILTER, 27MH DEN-963111010230S
...
89
MODULE , OPTICAL(RX 16MHZ) DEN-943262100150S
...
90
NETWORK MODULE ASSY(AIOS4.0V)_FY20SEE PROCEDURE AFTER REPLACING THE U-COM, ETC. DEN-9R1891004300S
...
91
NPN, TO-92, LOW NOISE, HFE:300-600, FAILCHILD DEN-943213500150S
...
92
PLATE , SELECT DEN-943446100910S
...
93
PLATE , VOLUME DEN-943446100920S
...
94
PNP, TO-92, LOW NOISE, HFE:300-600, FAILCHILD DEN-943211500150S
...
95
PTC THEMISTORS, CHIP(115'C) DEN-943252101070S
...
96
QUICK START GUIDE (DRA800HE3) DEN-54111171800AD
...
97
RELAY,981-2A-12DS-SP7,DC12V,2C1P DEN-943682100610S
...
98
RELAY,HF115F/012-2ZS4,DC12V,2C2P DEN-943682100620S
...
99
RELAY,HF36FD/5-HLT,DC5V,1C1P DEN-943682100660S
...
100
REMOCON ASS'Y (RC-1235) DRA800H DEN-30701027200AD
...
101
RES , SEMI FIXED (1K , B CURVE) DEN-943679100020S
...
102
RES, CEMENT(5W, 0.01OHM, 5%),SMALL SIZE MAR-943129501040S
...
103
RES, CEMENT(5W, 0.22OHM X2)_XINZU DEN-943129501170S
...
104
SW , TACT DEN-00D9430004402
...
105
T.R , BIAS DEN-214050011705S
...
106
T.R , CHIP , SOT-23 DEN-00D2690184907
...
107
T.R , CHIP , SOT-23 DEN-00D2690192902
...
108
T.R , POWER MAR-90M-HT200440R
...
109
T.R , POWER MAR-90M-HT400490R
...
110
T.R, 2SC3052 DEN-943214500020S
...
111
T.R, ISA1530AC1 DEN-963212500030S
...
112
T.R, KRC105S, NPN, SOT-23, KEC DEN-21685002450AS-99
...
113
T.R, KTC1027Y, NPN DEN-943219006820S
...
114
TR, MMBTA42, NPN, SOT-23, KEC DEN-943214500410S
...
115
TR, MMBTA92, PNP, SOT-23, KEC DEN-943212500350S
...
116
TRANS , POWER DRA800H/E3, (85.8X69) DEN-943101103820S
...
117
TRANS , SWITCHING DEN-943102100720S
...
118
TUNER , FM(SCREW : F TYPE), AM , SI4730-D60 DEN-943183100680S
...
119
TVS DIODE, 150V / 5W DEN-943202500860S
...
120
V.F.D (FUTABA, 18-BT-02GINK) DEN-943172100150S
...
121
VOLUME KNOB ASS'Y DEN-943412101630S
...
122
WIDNOW , VFD DEN-943416102010S
...
123
X-TAL, SMD(28.63636MHZ/7PF, FA-238, 3.2X2.5) DEN-943141101440S
